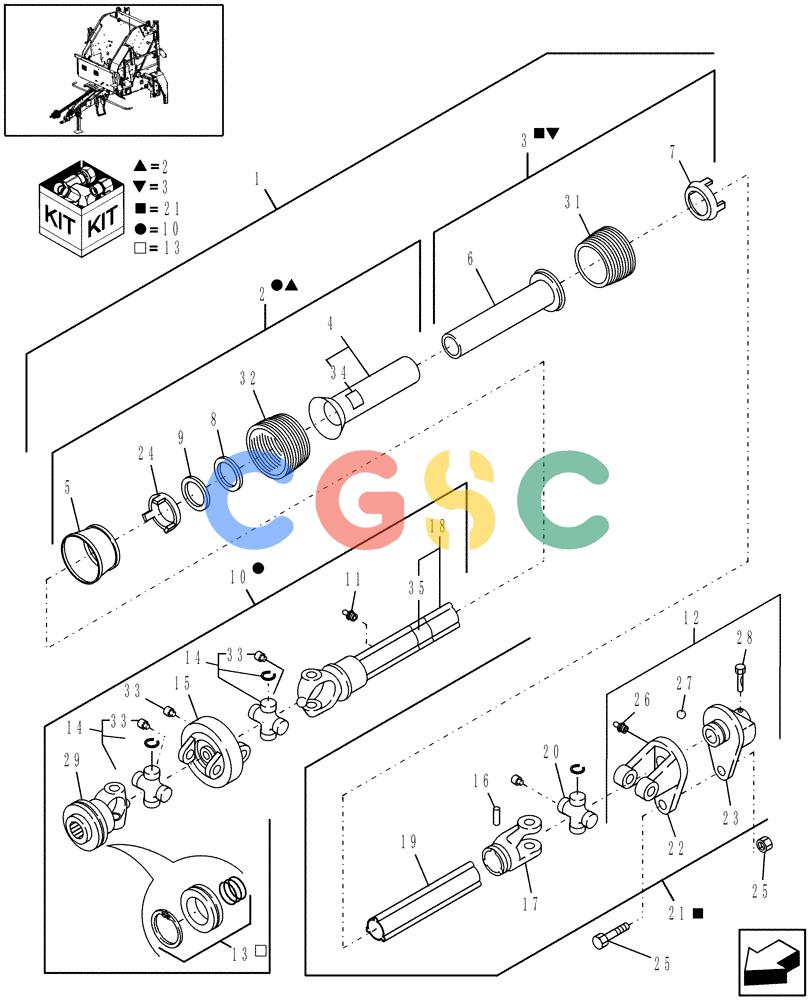

凯斯零件查询(RBX443) - CASE IH ROUND BALER (9/05-12/06) (01.30) - POWER TAKE OFF, 540 RPM, SHEARBOLT, NORTH AMERICA, PRIOR TO P.I.N. Y6N016413 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86604843
|
[1] |
PTO
|
PA
540 RPM, Shearbolt, 1-3/8" Shaft Superseded by part number: 87643180
|
| 2. |
86625858
|
[1] |
KIT
|
NH
Superseded by part number: 87552892
|
| 3. |
86625859
|
[1] |
KIT
|
NH
Superseded by part number: 87552892
|
| 4. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Outer Cone W/ Tube, Includes: Ref. 34 & 35
|
| 7. |
86625852
|
[1] |
RING NUT
|
NH
|
| 8. |
86625851
|
[1] |
RING NUT
|
NH
|
| 10. |
86625856
|
[1] |
PTO SHAFT
|
NH
Front, W/ Shields
|
| 11. |
87012758
|
[1] |
LUBE NIPPLE
|
PA
LUBRICATOR Superseded by part number: 84036369
|
| 12. |
86625876
|
[1] |
HUB
|
NH
Includes Ref. 22, 23, 25 - 28
|
| 13. |
86625855
|
[1] |
KIT
|
NH
Ball Collar Superseded by part number: 87461438
|
| 14. |
86625850
|
[2] |
U-JOINT SPIDER
|
NH
|
| 15. |
86625844
|
[1] |
BODY
|
NH
|
| 16. |
86625846
|
[1] |
PIN
|
NH
Superseded by part number: 87586150
|
| 17. |
86625848
|
[1] |
YOKE
|
NH
|
| 18. |
86625847
|
[1] |
TUBE,967.50 mm L
|
NH
|
| 19. |
86625845
|
[1] |
TUBE,962 mm L
|
NH
|
| 20. |
86625842
|
[1] |
BEARING ASSY
|
NH
Superseded by part number: 87018246
|
| 21. |
86625857
|
[1] |
PTO SHAFT
|
NH
Rear, W/Shields
|
| 24. |
86625854
|
[1] |
RING NUT
|
NH
|
| 25. |
86643178
|
[1] |
BOLT
|
NH
& Nut
|
| 27. |
87012755
|
[23] |
BALL
|
PA
6.35mm
|
| 29. |
86625841
|
[1] |
YOKE
|
NH
|
| 33. |
321204
|
[4] |
LUBE NIPPLE,M6 x 1.0 x 16mm OAL
|
ZED
|
| 34. |
849471
|
[1] |
DANGER DECAL
|
NH
English
|
| 34. |
849482
|
[1] |
DANGER DECAL
|
NH
French
|
| 35. |
849472
|
[1] |
DANGER DECAL
|
NH
English
|
| 35. |
849483
|
[1] |
DANGER DECAL
|
NH
French
|
