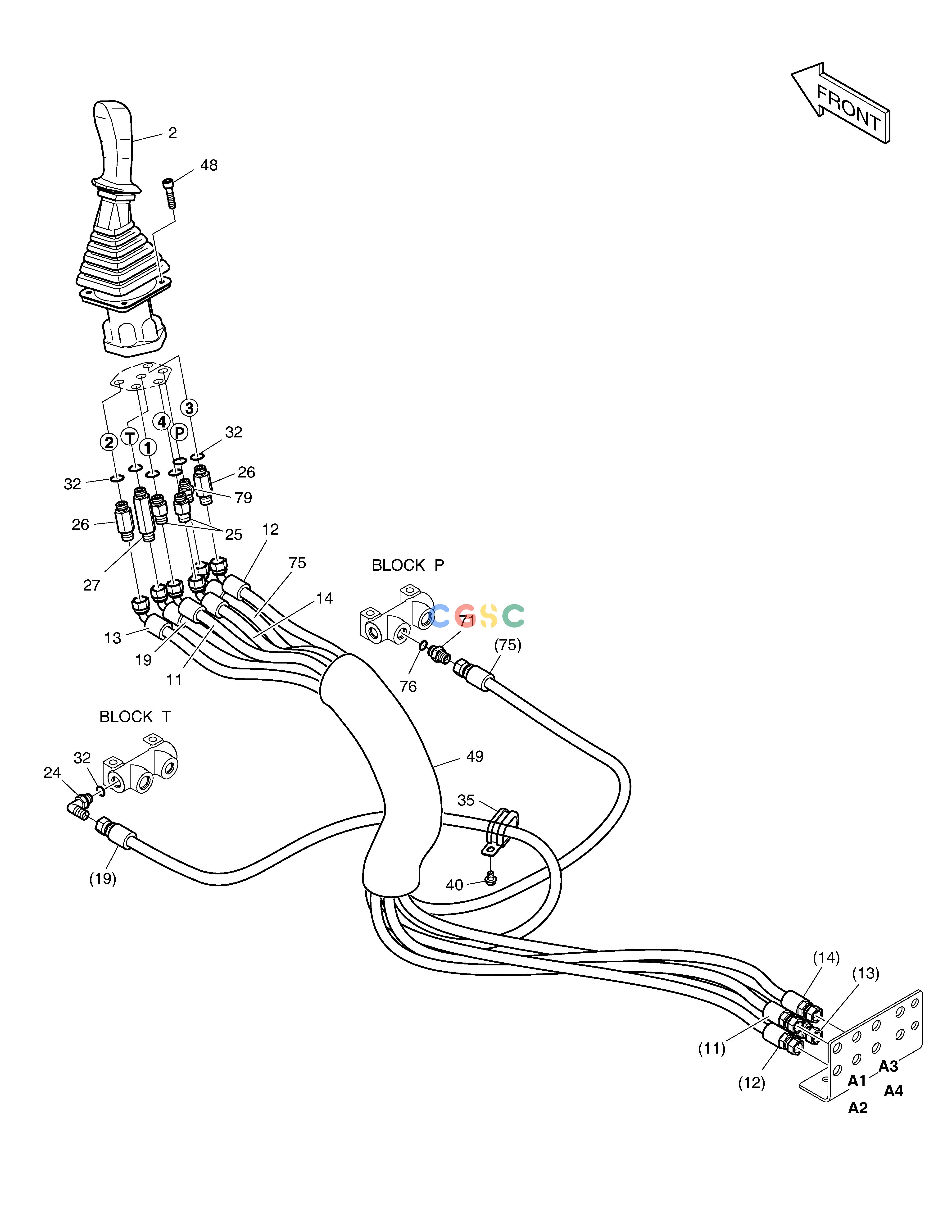

斗山零件查询PILOT PIPING(6) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
517 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05058E
|
[-] |
|
|
| 11. |
DS2095001
|
[1] |
HOSE
|
|
| 12. |
DS2095001
|
[1] |
HOSE
|
|
| 13. |
DS2095001
|
[1] |
HOSE
|
|
| 14. |
DS2095001
|
[1] |
HOSE
|
|
| 19. |
DS2095004
|
[1] |
HOSE
|
|
| 2. |
410113-00124B
|
[1] |
|
|
| 24. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 25. |
DS2213165
|
[2] |
ADAPTER
|
|
| 26. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 32. |
S8000141
|
[7] |
O-RING
|
|
| 35. |
124-00209D2
|
[1] |
CLIP
|
|
| 40. |
K1001029
|
[1] |
BOLT
|
|
| 48. |
S2204866
|
[4] |
BOLT
|
|
| 49. |
K1003945
|
[1] |
PROTECTOR
|
|
| 71. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 75. |
DS2095003
|
[1] |
HOSE
|
|
| 76. |
S8000141
|
[1] |
O-RING
|
|
| 79. |
430201-00113
|
[1] |
ADAPTER
|
|
