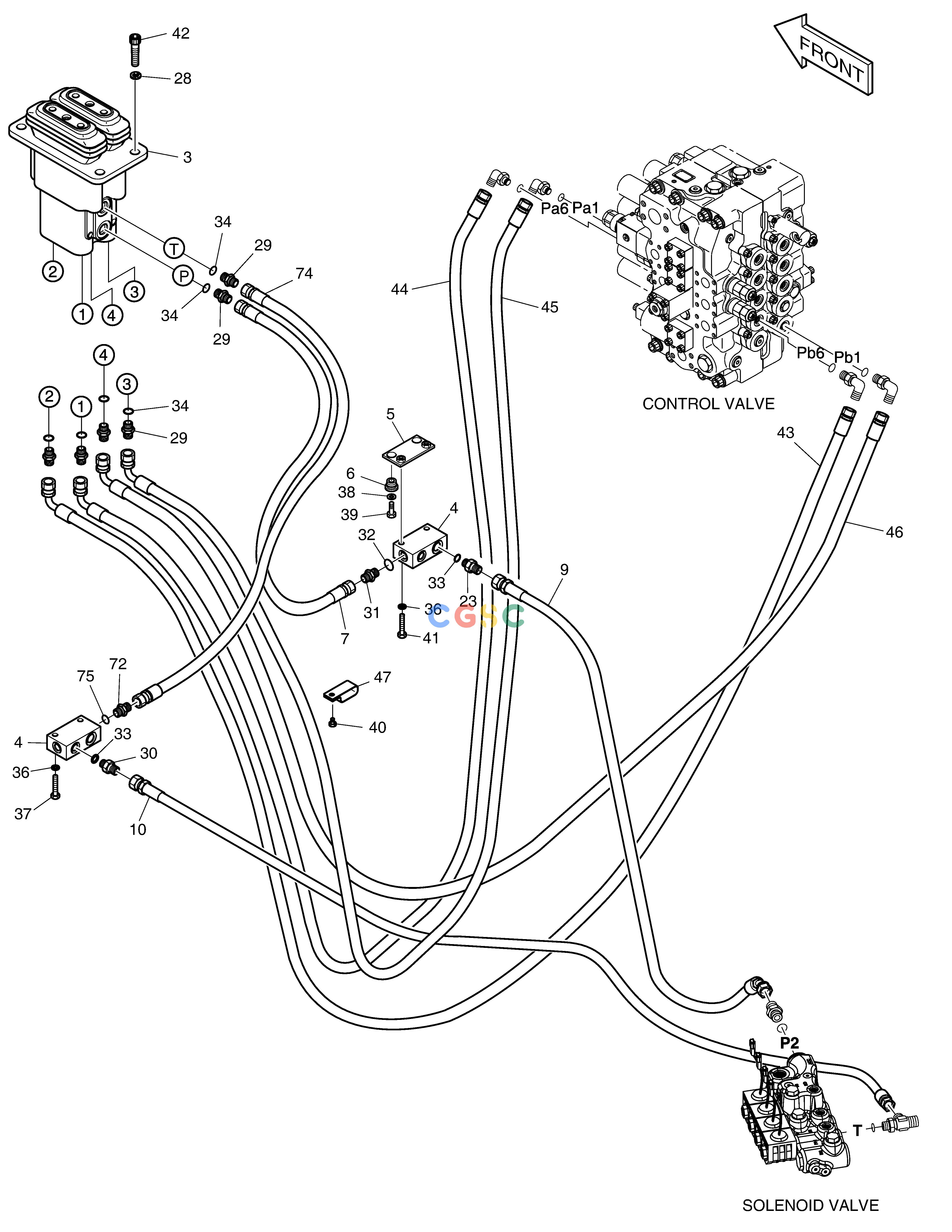

斗山零件查询PILOT PIPING(8) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05058E
|
[-] |
|
|
| 10. |
DS2053822
|
[1] |
HOSE
|
|
| 23. |
2471-1135
|
[1] |
FILTER
|
|
| 28. |
S5110603
|
[4] |
WASHER
|
|
| 29. |
2181-1126D14
|
[6] |
ADAPTER
|
|
| 3. |
420-00467A
|
[1] |
VALVE,PEDAL
|
|
| 30. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 31. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 32. |
S8000141
|
[1] |
O-RING
|
|
| 33. |
S8000181
|
[2] |
O-RING
|
|
| 34. |
S8000111
|
[6] |
O-RING
|
|
| 36. |
S5102603
|
[4] |
. WASHER
|
|
| 37. |
S0558666
|
[2] |
BOLT
|
|
| 38. |
2114-1058D10
|
[2] |
WASHER
|
|
| 39. |
S0512266
|
[2] |
BOLT
|
|
| 4. |
2423-1470
|
[2] |
BLOCK
|
|
| 40. |
K1001029
|
[1] |
BOLT
|
|
| 41. |
S0558766
|
[2] |
BOLT
|
|
| 42. |
S2212266
|
[4] |
BOLT
|
|
| 43. |
DS2093170
|
[1] |
HOSE
|
|
| 44. |
DS2093188
|
[1] |
HOSE
|
|
| 45. |
DS2093169
|
[1] |
HOSE
|
|
| 46. |
DS2093170
|
[1] |
HOSE
|
|
| 47. |
124-00209D3
|
[1] |
CLIP
|
|
| 5. |
621-02151
|
[1] |
PLATE
|
|
| 6. |
198-00016
|
[2] |
RUBBER
|
|
| 7. |
DS2094006
|
[1] |
HOSE
|
|
| 72. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 74. |
DS2094006
|
[1] |
HOSE
|
|
| 75. |
S8000141
|
[1] |
O-RING
|
|
| 9. |
DS2054208
|
[1] |
HOSE
|
|
