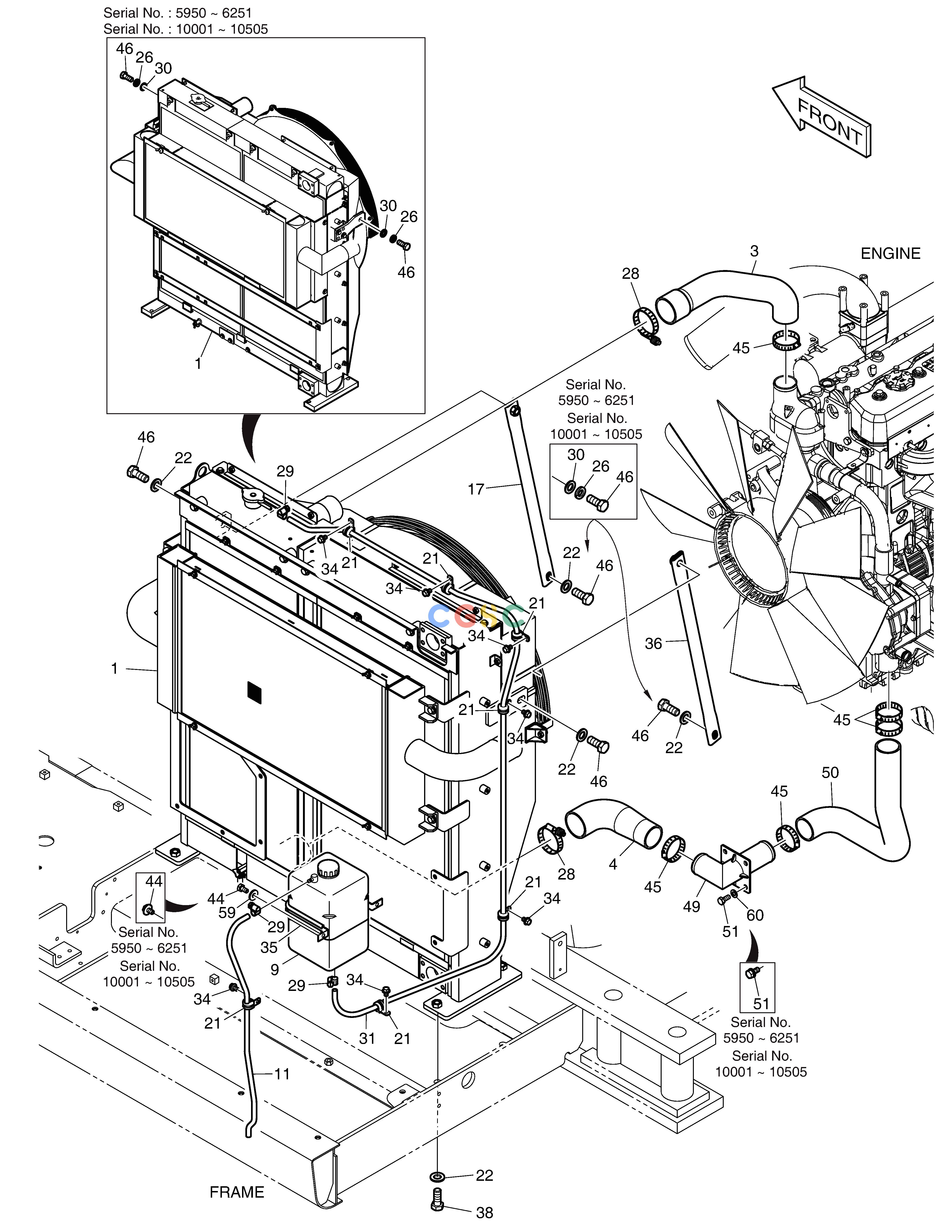

斗山零件查询RADIATOR MOUNTING DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
605 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00466
|
[-] |
|
|
| 1. |
440211-00217
|
[1] |
|
|
| 1. |
440211-00817A
|
[1] |
|
|
| 11. |
K1004515
|
[1] |
HOSE
|
|
| 17. |
K1005859A
|
[1] |
STAY
|
|
| 21. |
124-00208D2
|
[7] |
CLAMP
|
|
| 22. |
2114-1816A
|
[4] |
WASHER
|
|
| 22. |
2114-1816A
|
[8] |
WASHER
|
|
| 26. |
S5102903
|
[4] |
WASHER
|
|
| 28. |
S8500092
|
[2] |
CLAMP;HOSE
|
|
| 29. |
120402-00149
|
[3] |
|
|
| 29. |
DS2809001
|
[3] |
CLIP
|
|
| 3. |
420109-00186
|
[1] |
|
420109-00186A
|
| 3. |
420109-00186A
|
[1] |
|
|
| 30. |
S5010913
|
[4] |
WASHER
|
|
| 31. |
K1006252
|
[1] |
HOSE;WATER
|
|
| 31. |
DS2160026
|
[1] |
|
|
| 34. |
K1001029
|
[7] |
BOLT
|
|
| 35. |
K1002851
|
[1] |
CLAMP
|
|
| 36. |
K1005860A
|
[1] |
STAY
|
|
| 38. |
S0565066
|
[4] |
BOLT M16X2.0X40
|
|
| 4. |
420109-00187
|
[1] |
|
420109-00187A
|
| 4. |
420109-00187A
|
[1] |
|
|
| 44. |
DS0025014
|
[2] |
BOLT
|
|
| 44. |
S0511866
|
[2] |
BOLT
|
|
| 45. |
S8500079
|
[5] |
CLAMP
|
|
| 46. |
S0521566
|
[4] |
BOLT
|
|
| 49. |
420211-00201
|
[1] |
|
|
| 50. |
420109-00189
|
[1] |
|
420109-00189A
|
| 50. |
420109-00189A
|
[1] |
|
|
| 51. |
DS0025055
|
[4] |
BOLT;SET
|
|
| 51. |
S0512066
|
[4] |
. BOLT
|
|
| 59. |
120804-00078
|
[2] |
WASHER
|
|
| 60. |
120804-00076
|
[4] |
WASHER
|
|
| 9. |
K1003354A
|
[1] |
TANK;RESERVE
|
|
