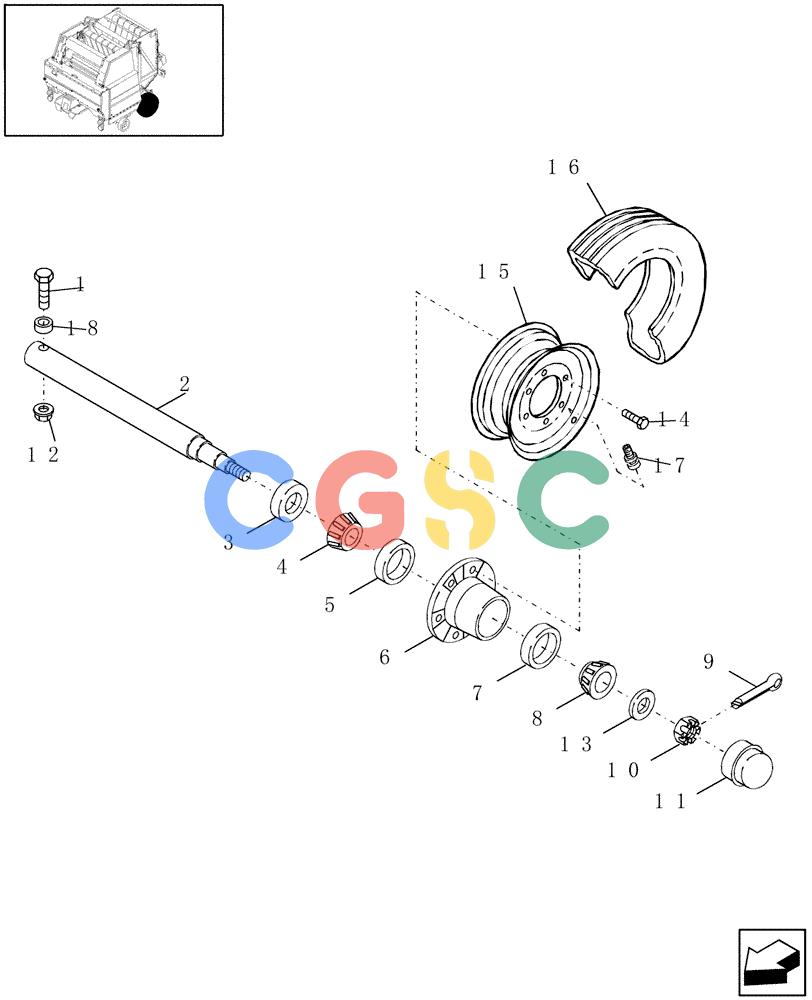

凯斯零件查询(RBX443) - CASE IH ROUND BALER (9/05-12/06) (11.09) - WHEEL HUB, SPINDLE & TIRE, 11L X 14 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
287 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
814-12070
|
[2] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
IH
Superseded by part number: 9706717
|
| 2. |
9623563
|
[2] |
SPINDLE
|
NH
|
| 3. |
788367
|
[2] |
SEAL
|
NH
Superseded by part number: 62610C1
|
| 4. |
G15215
|
[2] |
ROLLER BEARING
|
CAS
Superseded by part number: 86512027
|
| 5. |
619387R1
|
[2] |
BEARING CUP
|
IH
Superseded by part number: 86512027
|
| 6. |
86635391
|
[2] |
HUB
|
NH
|
| 7. |
H433209
|
[2] |
BEARING CUP
|
CAS
Superseded by part number: 175508
|
| 8. |
536053R1
|
[2] |
ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"
|
IH
Superseded by part number: 175507
|
| 9. |
432-1224
|
[2] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 10. |
425-1314
|
[2] |
SLOTTED NUT,7/8"-14, G5
|
CAS
Superseded by part number: 84151573
|
| 11. |
249128
|
[2] |
HUB CAP
|
NH
|
| 12. |
832-46412
|
[2] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 13. |
116150
|
[2] |
WASHER,23.81mm ID x 50.8mm OD x 4.76mm Thk
|
NH
7/8"
|
| 14. |
32383
|
[12] |
BOLT,Wheel, G5, 1/2"-20 x 13/16"
|
NH
Wheel, G5, 1/2"-20 x 13/16"
|
| 15. |
86616430
|
[2] |
WHEEL
|
NH
Superseded by part number: 87047837
|
| 16. |
245746
|
[2] |
TYRE/TIRE
|
NH
Tubeless, 11L x 14, 6 Ply, Grooved Implement
|
| 17. |
86626246
|
[2] |
VALVE STEM
|
NH
|
| 18. |
86635011
|
[2] |
BUSHING
|
NH
|
