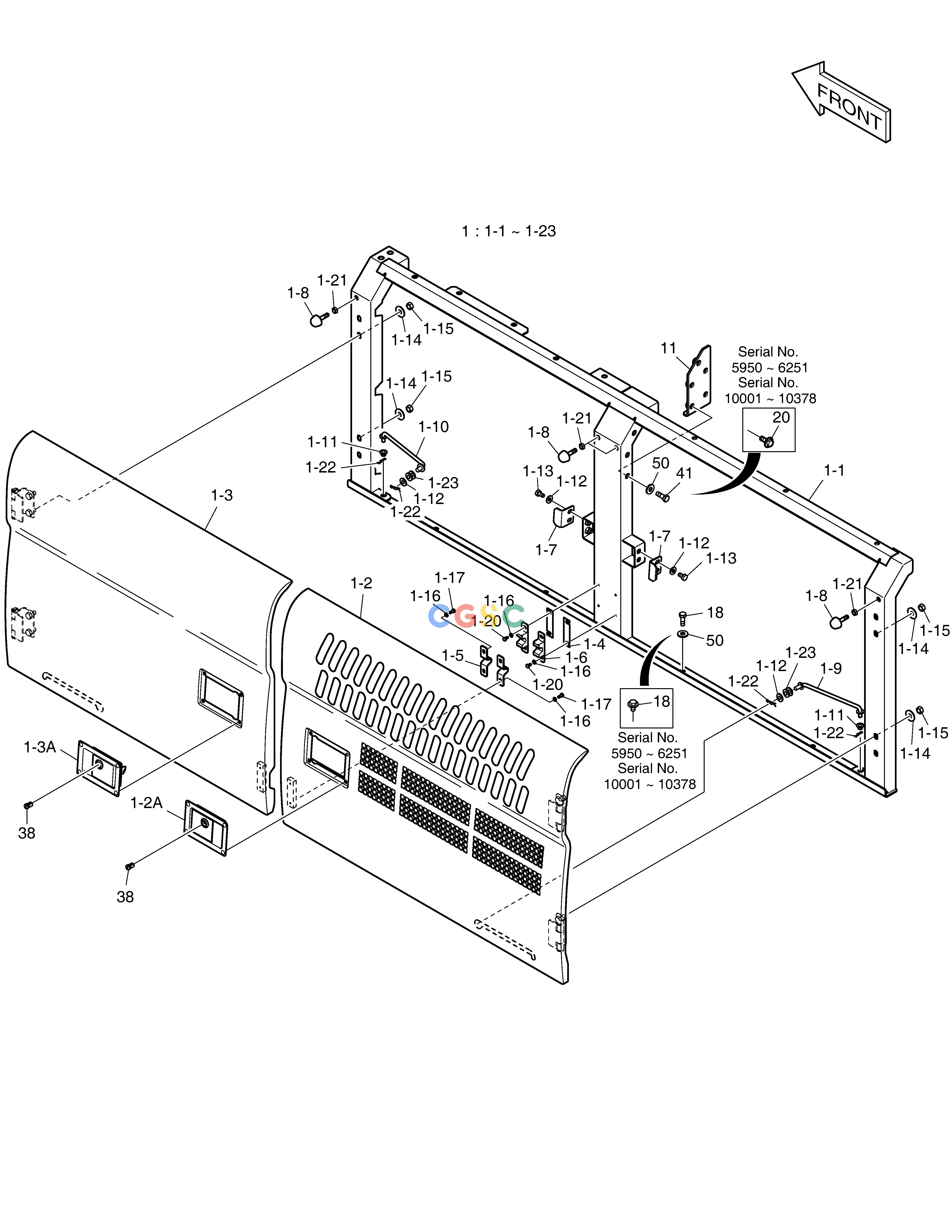

斗山零件查询SIDE DOOR - L.H DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
926 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-04678
|
[-] |
|
|
| 1. |
110982-00449A
|
[1] |
|
|
| 1. |
110982-01071
|
[1] |
|
|
| 1-1. |
110958-03604
|
[1] |
|
|
| 1-1. |
110958-00840
|
[1] |
|
|
| 1-10. |
623-00075B
|
[1] |
. STAY ASSY(L.H)
|
|
| 1-11. |
K1000602
|
[2] |
. BUSHING
|
|
| 1-12. |
2114-1058D45
|
[6] |
. WASHER
|
|
| 1-13. |
S0511866
|
[4] |
BOLT
|
|
| 1-14. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 1-15. |
S4012733
|
[8] |
NUT
|
|
| 1-16. |
S5010313
|
[8] |
WASHER
|
|
| 1-17. |
S0504553
|
[4] |
BOLT
|
|
| 1-2. |
110982-00456A
|
[1] |
|
|
| 1-20. |
S0504653
|
[4] |
. BOLT
|
|
| 1-21. |
S4012633
|
[4] |
NUT
|
|
| 1-22. |
2705-9002
|
[4] |
PIN
|
|
| 1-23. |
K1008335
|
[2] |
. BUSHING
|
|
| 1-2A. |
125-00034A
|
[1] |
LOCK
|
|
| 1-3. |
110982-00180A
|
[1] |
|
|
| 1-3A. |
125-00035A
|
[1] |
LOCK
|
|
| 1-4. |
110947-00027
|
[2] |
. SHIM
|
|
| 1-5. |
250201-00028
|
[2] |
. PLATE
|
|
| 1-6. |
110956-00002A
|
[2] |
. STOPPER
|
|
| 1-7. |
621-02726A
|
[2] |
. PLATE,LOCK
|
|
| 1-8. |
K1001260A
|
[4] |
STOPPER
|
|
| 1-9. |
623-00074B
|
[1] |
. STAY ASSY(R.H)
|
|
| 11. |
110406-01170
|
[1] |
|
|
| 18. |
S0515066
|
[4] |
BOLT
|
|
| 18. |
DS0025015
|
[4] |
BOLT
|
|
| 20. |
DS0025027
|
[3] |
BOLT
|
|
| 38. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
| 41. |
S0515366
|
[3] |
BOLT
|
|
| 50. |
120804-00079
|
[7] |
WASHER
|
|
