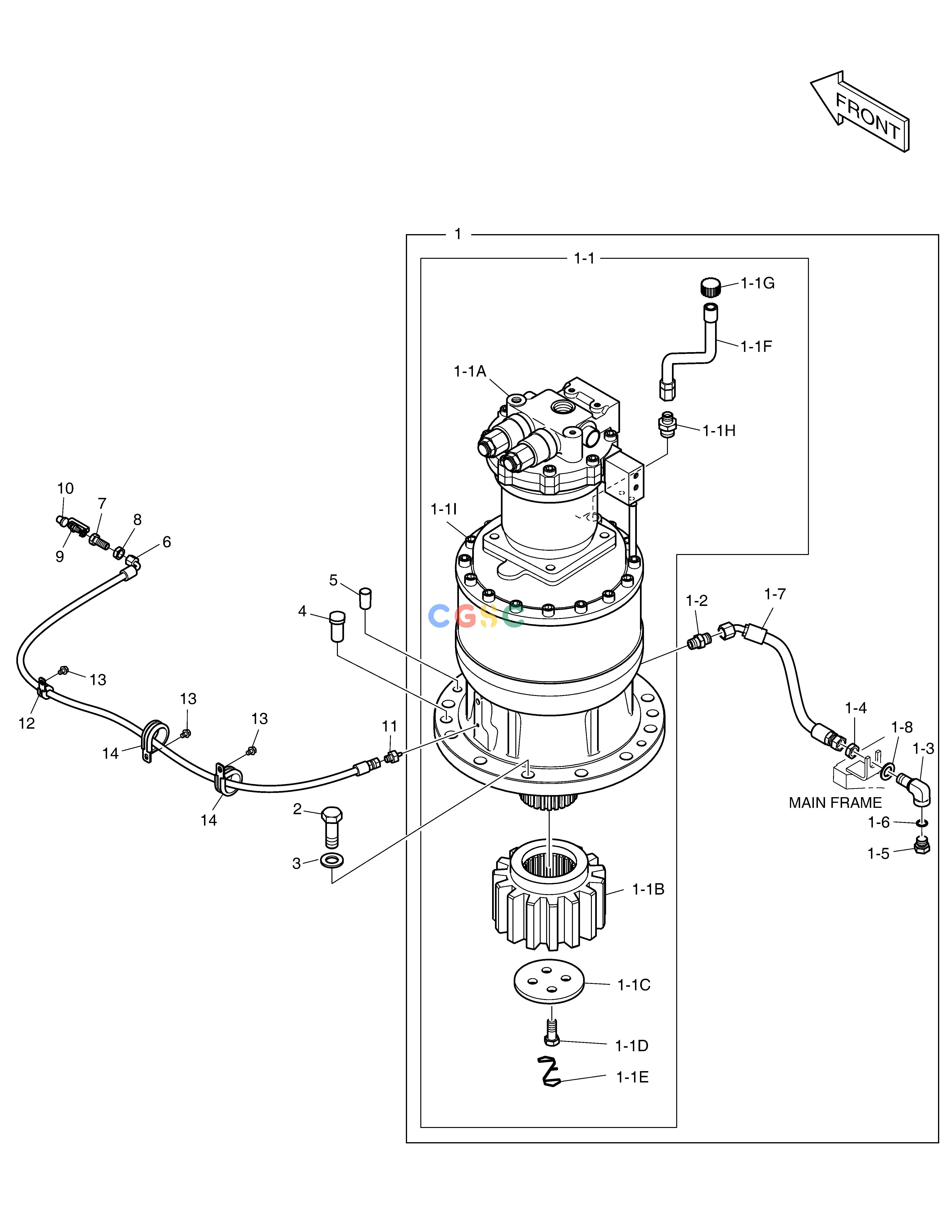

斗山零件查询SWING DEVICE DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
170301-00061
|
[-] |
|
|
| 1. |
170301-00062B
|
[1] |
|
170301-00062C
|
| 1. |
170301-00062C
|
[1] |
|
|
| 1-1. |
170301-00064A
|
[1] |
|
|
| 1-1A. |
K1007543A
|
[1] |
MOTOR;SWING
|
|
| 1-1B. |
2404-1065
|
[1] |
GEAR;PINION
|
|
| 1-1C. |
2403-1046A
|
[1] |
COVER
|
|
| 1-1D. |
2120-1363
|
[4] |
BOLT
|
|
| 1-1E. |
2126-9001
|
[2] |
WIRE
|
|
| 1-1F. |
2182-1706A
|
[1] |
PIPE
|
|
| 1-1G. |
2119-1063B
|
[1] |
. CAP
|
|
| 1-1H. |
2181-1110D10
|
[1] |
ADAPTER
|
|
| 1-1I. |
130426-00014A
|
[1] |
|
|
| 1-2. |
2181-1110D22
|
[1] |
. ADAPTER
|
|
| 1-3. |
181-00717
|
[1] |
. ELBOW
|
|
| 1-4. |
121-00010D3
|
[1] |
. NUT
|
|
| 1-5. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 1-5. |
DS2901008
|
[1] |
. PLUG
|
|
| 1-6. |
S8000181
|
[1] |
O-RING
|
|
| 1-7. |
2184-1060D172
|
[1] |
HOSE
|
|
| 1-8. |
S5011113
|
[1] |
. WASHER
|
|
| 10. |
160-00020
|
[1] |
CAP
|
|
| 11. |
2181-1110D30
|
[1] |
ADAPTER
|
|
| 12. |
124-00208D2
|
[1] |
CLAMP
|
|
| 13. |
K1001029
|
[3] |
BOLT
|
|
| 14. |
124-00208D7
|
[2] |
CLIP
|
|
| 2. |
S0774766
|
[12] |
BOLT M24X2.0X70
|
|
| 3. |
2114-1831A
|
[12] |
. WASHER
|
|
| 4. |
2123-1717B
|
[2] |
PIN;KNOCK
|
|
| 5. |
198-00028
|
[2] |
CAP
|
|
| 6. |
2184-1046D105
|
[1] |
HOSE
|
|
| 7. |
181-00103
|
[1] |
REDUCER
|
|
| 8. |
121-00006
|
[1] |
NUT
|
|
| 9. |
S6710041
|
[1] |
NIPPLE,GREASE
|
|
