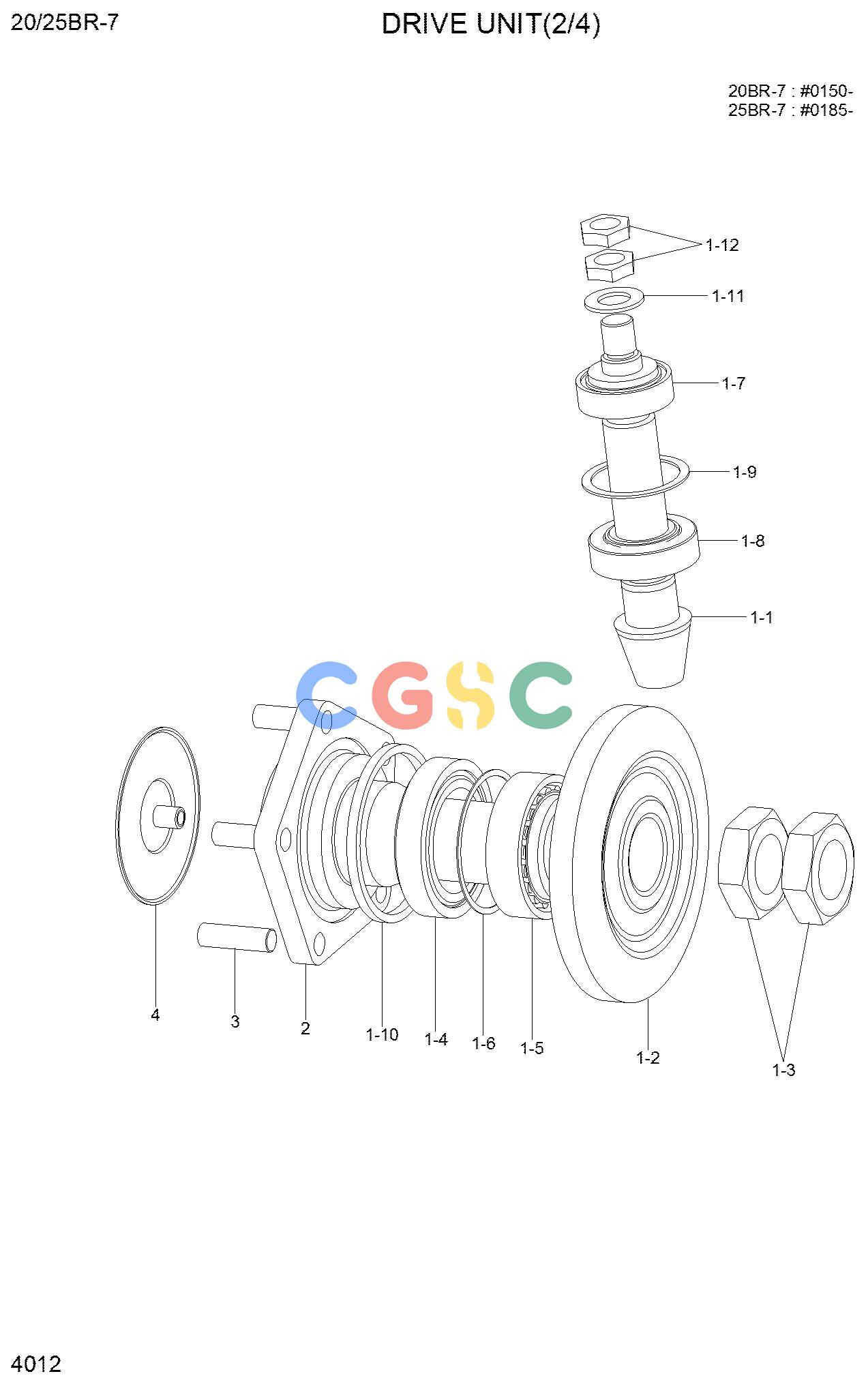

现代零件查询20/25BR-7 DRIVE UNIT(GK26LD, 2/4)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
268 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZGAP-00138
|
[1] |
KIT-BEVEL GEAR SET
|
|
| 1-1. |
@
|
[1] |
SHAFT-PINION
|
|
| 1-2. |
@
|
[1] |
BEVEL GEAR
|
|
| 1-3. |
ZGAP-00139
|
[1] |
HEXAGON NUT
|
|
| 1-4. |
ZGAP-00140
|
[1] |
TAPER ROLLER BEARING
|
|
| 1-5. |
ZGAP-00141
|
[1] |
TAPER ROLLER BEARING
|
|
| 1-6. |
ZGAP-00104
|
[1] |
SHIM RING OTK
|
|
| 1-7. |
ZGAP-00142
|
[1] |
TAPER ROLLER BEARING
|
|
| 1-7. |
ZGAP-00142
|
[1] |
TAPER ROLLER BEARING
|
|
| 1-8. |
ZGAP-00143
|
[1] |
TAPER ROLLER BEARING
|
|
| 1-9. |
ZGAP-00144
|
[1] |
SHIM
|
|
| 1-10. |
ZGAP-00145
|
[1] |
SHAFT SEALING RING
|
|
| 1-11. |
ZGAP-00146
|
[1] |
SHIM
|
|
| 1-12. |
ZGAP-00147
|
[2] |
HEXAGON NUT
|
|
| 2. |
ZGAP-00148
|
[1] |
WHEEL SHAFT
|
|
| 3. |
ZGAP-00096
|
[5] |
BOLT-WHEEL
|
|
| 4. |
ZGAP-00149
|
[1] |
PROTECTION CAP
|
|
