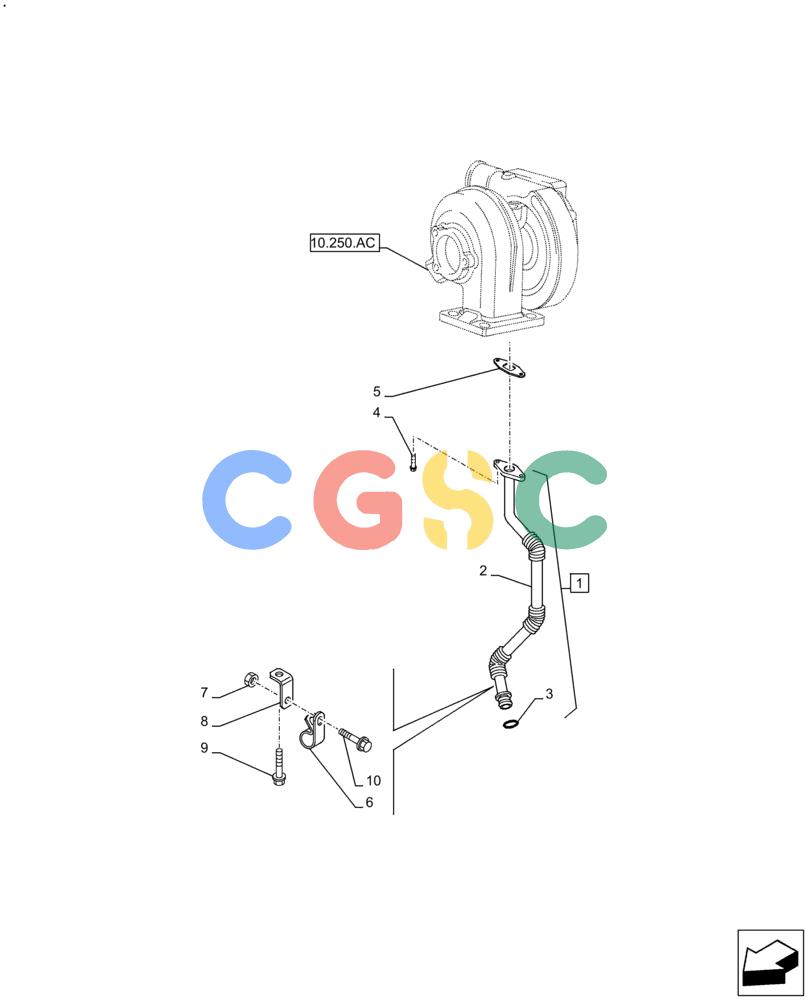

神钢零件查询(F4GE9484A J613) - ENGINE 5801920069 - 47681264 (1/14-12/14) (10.250.AE) - TURBOCHARGER, RETURN PIPE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2853120 | [1] | RIGID TUBE | TORASSY, Incl 2, 3 Superseded by part number: |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Incl in 1 |
| 3. | 4899058 | [1] | O-RING,0.674" ID x 0.88" OD x 0.103" | TOR Superseded by part number: 17281881 |
| 4. | 4895164 | [2] | SCREW,Hex, Flg Hd, M6 x 16 | TOR |
| 5. | 4899467 | [1] | GASKET | TOR |
| 6. | 4899519 | [1] | CLAMP,M16, M6 Bolt | TOR |
| 7. | 2852197 | [1] | FLANGE NUT,M6 x 1 | TOR Superseded by part number: 17044625 |
| 8. | 2852196 | [1] | BRACKET | TOR Superseded by part number: 504053894 |
| 9. | 4899068 | [1] | BOLT,Flng, M8 x 1.25 x 16mm | BAS |
| 10. | 2852101 | [1] | FLANGE BOLT,Hex, M6 x 16mm | TOR Superseded by part number: 18137825 |
