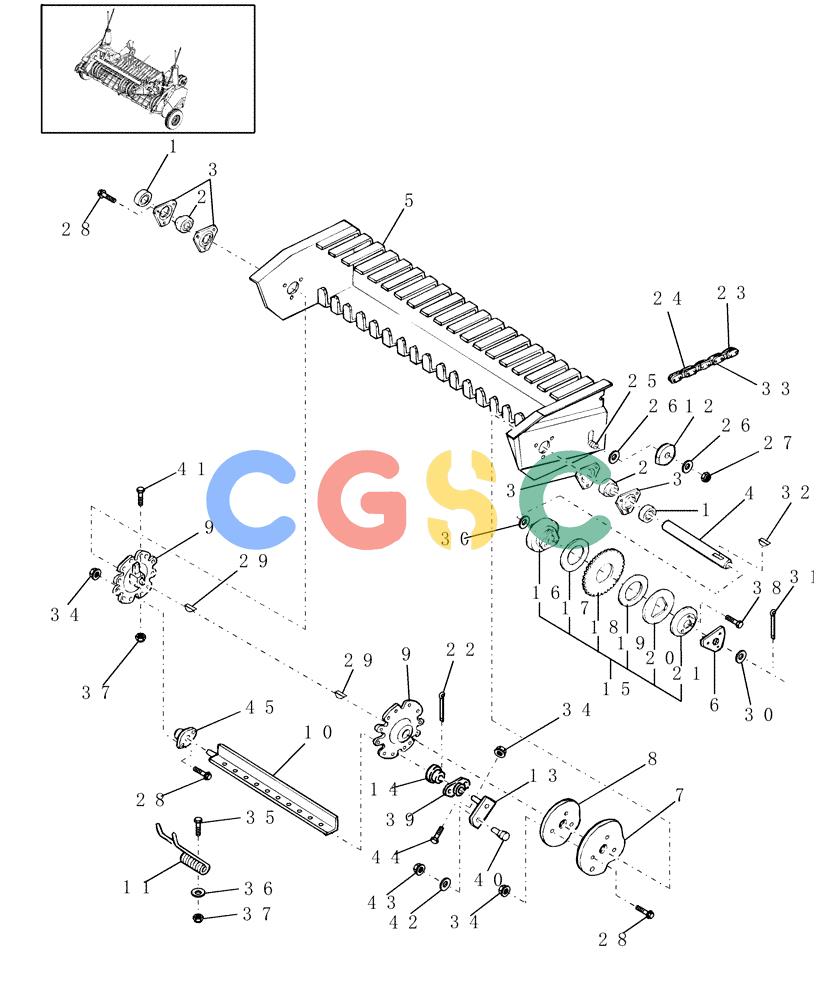

| 1. |
557115R11
|
[2] |
COLLAR
|
IH
Superseded by part number: 45876
|
| 2. |
455960R92
|
[2] |
BEARING, BALL,1.1255" ID x 2.4409" OD x 0.9375"
|
IH
Superseded by part number: 47577195
|
| 3. |
86548970
|
[4] |
FLANGED BEARING
|
NH
Superseded by part number: 84320112
|
| 4. |
9603749
|
[1] |
SHAFT
|
NH
Reel Drive
|
| 5. |
86635350
|
[1] |
HEAD ASSY.
|
NH
Pickup
|
| 6. |
80707372
|
[1] |
BRACKET
|
NH
Superseded by part number: 86636168
|
| 7. |
86635046
|
[1] |
CAM
|
NH
Outer
|
| 8. |
86635043
|
[1] |
CAM
|
NH
Inner
|
| 9. |
86635065
|
[2] |
DISC
|
NH
Finger
|
| 10. |
86635045
|
[4] |
ANGLE
|
NH
|
| 11. |
87394242
|
[36] |
TORSION SPRING,Coiled, 2 Prong, 186.5mm L
|
NH
Pickup, Curved, Premium, Standard
|
| 11. |
87607074
|
[36] |
TINE
|
NH
Pickup, Curved, Economy, Optional
|
| 12. |
166704
|
[1] |
IDLER
|
PA
Wood Superseded by part number: 80166704, 87030996
|
| 13. |
86635216
|
[4] |
ARM
|
NH
|
| 14. |
54770
|
[4] |
BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm
|
NH
Superseded by part number: 84330047
|
| 15. |
86635138
|
[1] |
SLIP CLUTCH
|
NH
|
| 16. |
86635141
|
[1] |
HUB
|
NH
Clutch
|
| 17. |
225813
|
[1] |
CHAIN
|
NH
Conveyor Drive, #A-2050 Roller Chain, 49 Pitches (47 Regular Links) Superseded by part number: 569089R91X
|
| 17. |
127434
|
[1] |
DISC,77.7mm ID x 146mm OD x 3.56mm Thk
|
NH
Friction
|
| 18. |
86536128
|
[1] |
DRIVEN SPROCKET
|
NH
& Bushing Superseded by part number: 86637250
|
| 20. |
86627129
|
[1] |
CLUTCH PLATE
|
NH
|
| 21. |
121092
|
[1] |
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
|
NH
|
| 22. |
136521
|
[4] |
COTTER PIN,5.7mm OD x 44.45mm L
|
NH
Hardened, 1/4" x 1-3/4"
|
| 23. |
86595273
|
[1] |
LINK,31.75mm Pitch
|
PA
RC 2050, Cotter Style, Part of Ref. 33
|
| 24. |
86977795
|
[1] |
CONNECTING LINK
|
PA
Roller, RC 2050, Cotter Style, Part of Ref. 33 Superseded by part number: 242-1310
|
| 25. |
280517
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 3/4", Gr 5
|
NH
|
| 26. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 27. |
232-4148
|
[1] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
| 28. |
905-10020
|
[25] |
BOLT,Hex Flg, M10 x 20mm
|
CAS
Superseded by part number: 274249
|
| 29. |
836-80110
|
[2] |
WOODRUFF KEY,M8 x8 11 x 27.35
|
CAS
Superseded by part number: 87038548
|
| 30. |
673
|
[1] |
WASHER,29mm ID x 41mm OD x 1.52mm Thk
|
NH
|
| 31. |
733-5040
|
[1] |
COTTER PIN,M5 x 40
|
CAS
Superseded by part number: 130011
|
| 32. |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 34. |
825-51410
|
[24] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 35. |
814-10060
|
[4] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 120070
|
| 35. |
614-10030
|
[32] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 36. |
9618968
|
[40] |
WASHER,0.41" ID x 0.78" OD x 0.1" Thk
|
NH
Heat Treated
|
| 37. |
832-46410
|
[32] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 38. |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187207, 88011
|
| 39. |
54695
|
[4] |
BEARING HOUSING
|
NH
|
| 40. |
84350126
|
[4] |
CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L
|
NH
|
| 41. |
120071
|
[2] |
BOLT,Hex, M10 x 65, 8.8
|
NH
|
| 42. |
495-11053
|
[8] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 43. |
88130
|
[4] |
NUT,1/2"-20, GC
|
NH
|
| 44. |
814-10050
|
[12] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 45. |
638025
|
[4] |
FLANGE
|
NH
|
