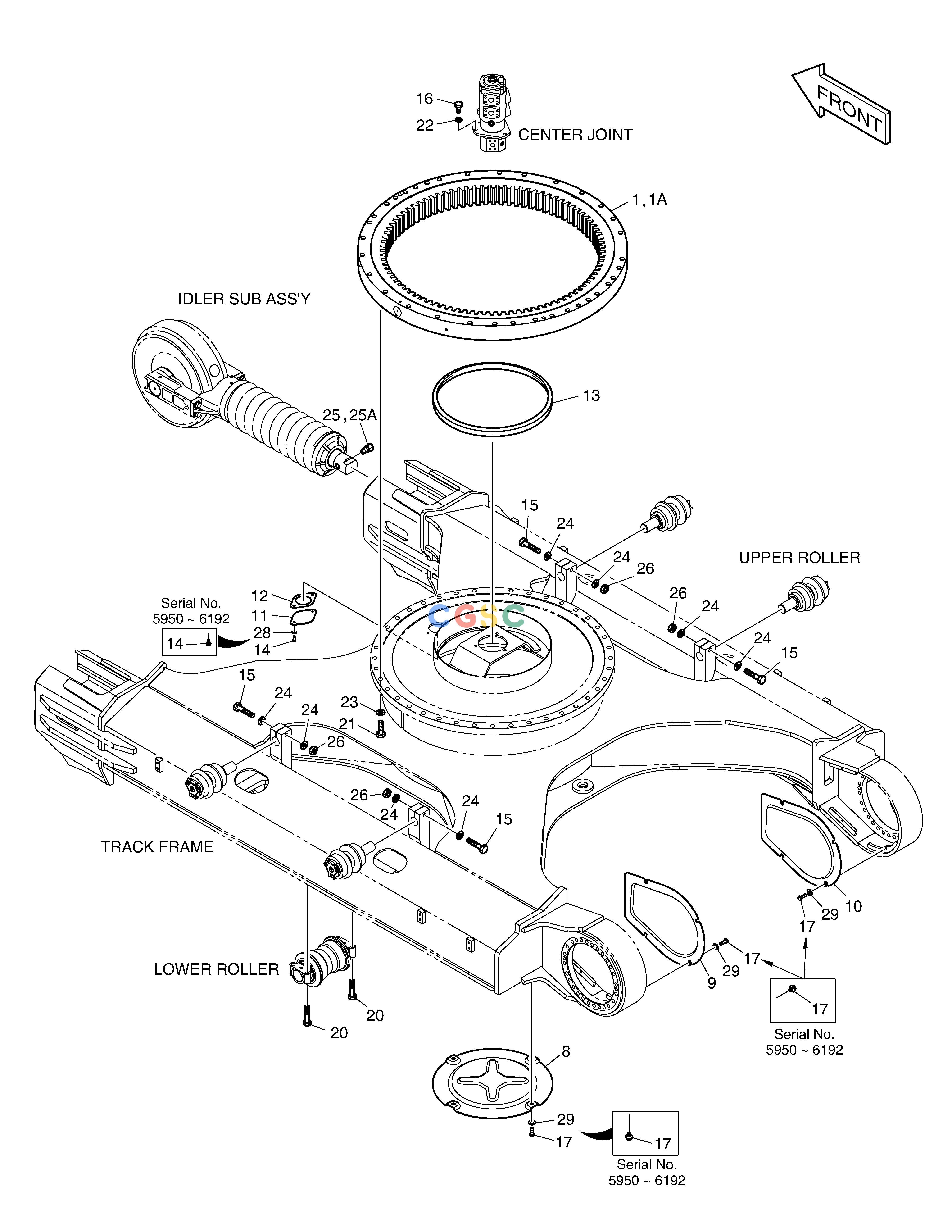

斗山零件查询TRACK FRAME DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650105-00069
|
[-] |
|
|
| 1. |
140109-00008A
|
[1] |
|
|
| 10. |
621-02714A
|
[1] |
COVER;MOTOR(R.H)
|
|
| 11. |
621-02938A
|
[1] |
COVER
|
|
| 12. |
180-00463
|
[1] |
PACKING
|
|
| 13. |
K1004695
|
[1] |
SEAL
|
|
| 14. |
S0512266
|
[2] |
BOLT
|
|
| 14. |
DS0025016
|
[2] |
BOLT
|
|
| 15. |
S0571166
|
[4] |
BOLT
|
|
| 16. |
S0521366
|
[3] |
BOLT
|
|
| 17. |
S0515066
|
[12] |
BOLT
|
|
| 17. |
DS0025019
|
[12] |
BOLT
|
|
| 1A. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 20. |
S0570766
|
[72] |
BOLT
|
|
| 21. |
S0574966
|
[40] |
BOLT M24X3.0X80
|
|
| 22. |
4114-1791A
|
[3] |
WASHER;HARD
|
|
| 23. |
2114-1831A
|
[40] |
. WASHER
|
|
| 24. |
2114-9012A
|
[8] |
WASHER
|
|
| 25. |
422-00055
|
[2] |
VALVE;GREASE
|
|
| 25. |
410143-00002
|
[2] |
|
|
| 25A. |
401106-00513
|
[1] |
|
|
| 25A. |
401106-00230
|
[1] |
SEAL
|
|
| 26. |
S4013133
|
[4] |
NUT
|
|
| 28. |
120804-00078
|
[2] |
WASHER
|
|
| 29. |
120804-00079
|
[12] |
WASHER
|
|
| 8. |
110513-00269
|
[1] |
|
|
| 8. |
K1004271
|
[1] |
COVER;UNDER
|
110513-00269
|
| 9. |
621-02715A
|
[1] |
COVER;MOTOR(L.H)
|
|
