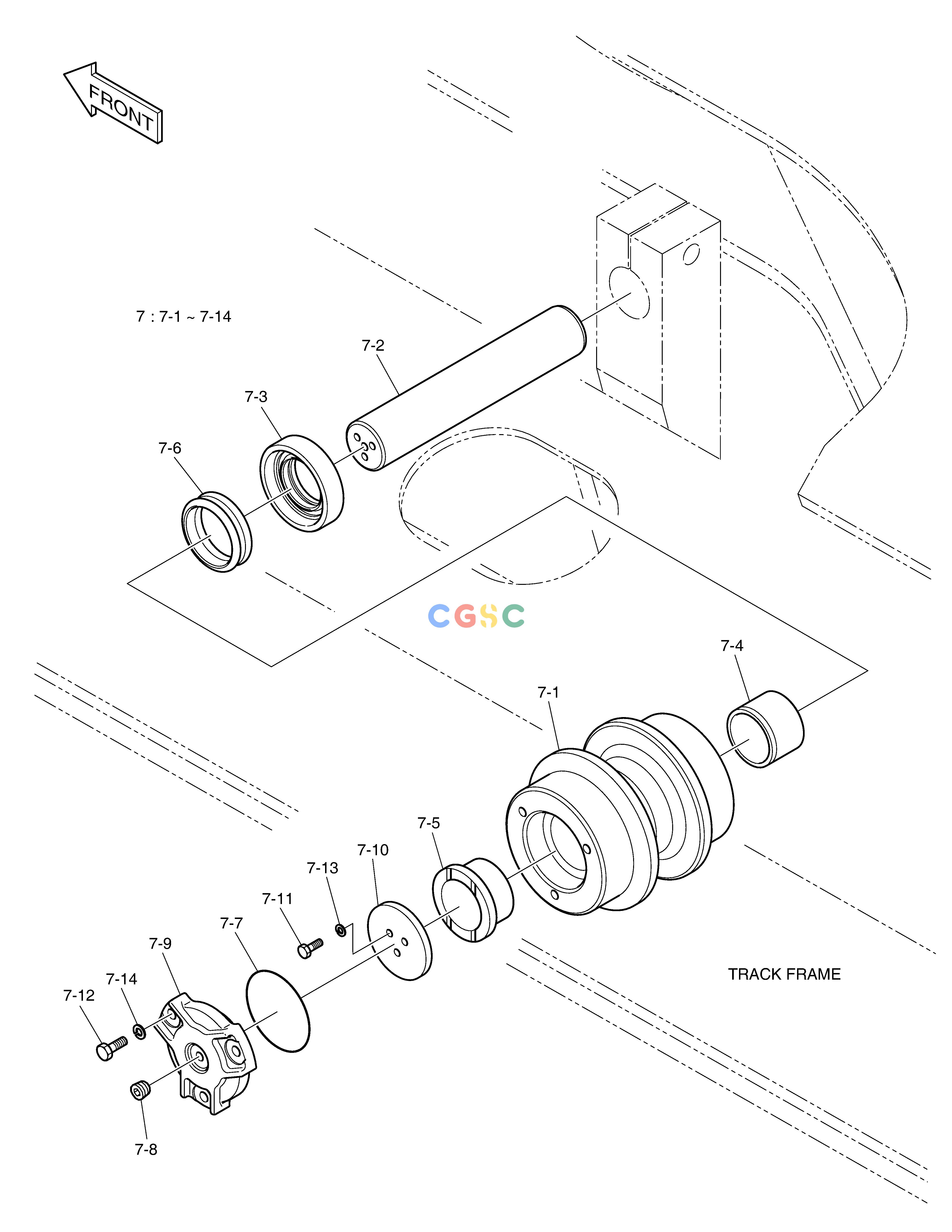

斗山零件查询UPPER ROLLER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
265 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650105-00069
|
[-] |
|
|
| 7. |
200105-00003A
|
[4] |
|
|
| 7-1. |
160601-00012A
|
[1] |
|
|
| 7-10. |
120810-00036
|
[1] |
|
|
| 7-11. |
S0508861
|
[3] |
BOLT M8X1.25X20
|
|
| 7-12. |
S0515361
|
[3] |
BOLT M12X1.75X35
|
|
| 7-13. |
S5102503
|
[3] |
. WASHER
|
|
| 7-14. |
S5102703
|
[3] |
WASHER
|
|
| 7-2. |
130712-00058A
|
[1] |
|
|
| 7-3. |
401003-00036A
|
[1] |
|
|
| 7-4. |
130702-00065
|
[1] |
|
|
| 7-5. |
130702-00066
|
[1] |
|
|
| 7-6. |
2180-9005B
|
[1] |
SEAL;FLOATING
|
|
| 7-7. |
2180-6005
|
[1] |
O-RING
|
|
| 7-8. |
2181-6005
|
[1] |
PLUG
|
|
| 7-9. |
110508-00359A
|
[1] |
|
|
