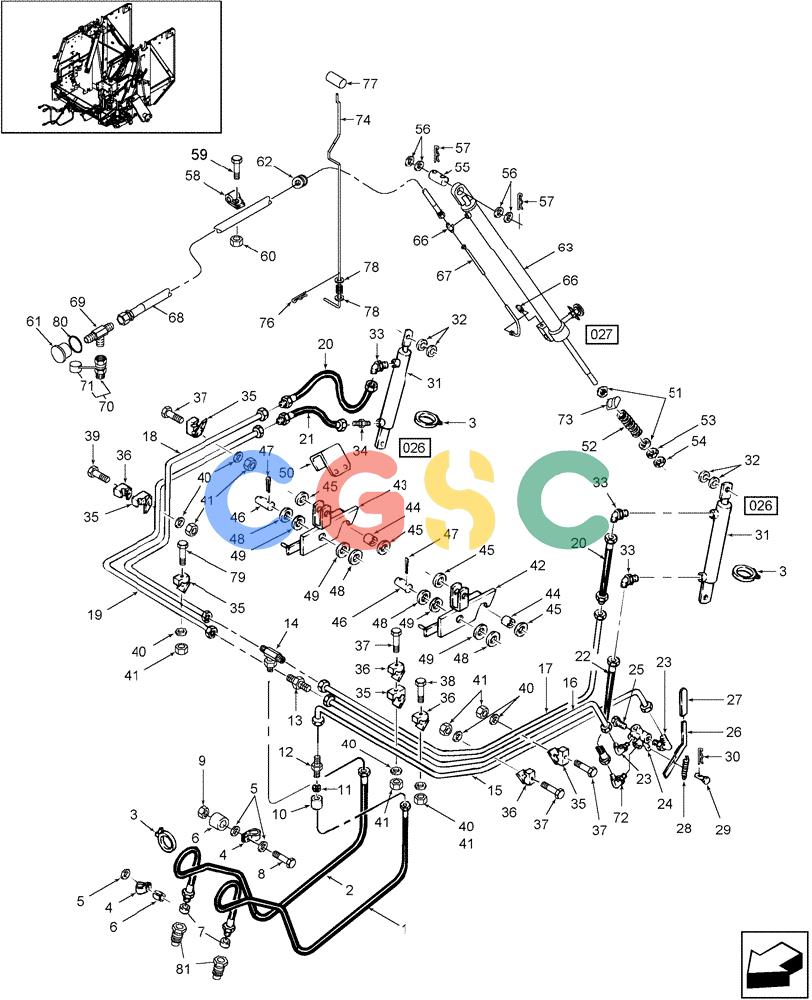

| 1. |
86568342
|
[1] |
HOSE,12.7mm ID x 3098.8mm L
|
NH
|
| 2. |
86568341
|
[1] |
HOSE,9.53mm ID x 3225.8mm L
|
NH
127mm
|
| 3. |
529070
|
[3] |
CABLE TIE,368.3mm L
|
NH
CABLE STRAP
|
| 4. |
515-23317
|
[3] |
CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type
|
CAS
|
| 5. |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 6. |
86500987
|
[2] |
SPACER
|
NH
|
| 7. |
116070
|
[2] |
CAP
|
NH
Oil Drain
|
| 8. |
814-10060
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 120070
|
| 9. |
825-51410
|
[1] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 10. |
86635143
|
[1] |
COUPLING,3/4" - 16, 1-9/64" L
|
NH
Straight Thread
|
| 11. |
86517438
|
[1] |
ORIFICE
|
NH
|
| 13. |
322897
|
[1] |
HYD CONNECTOR,9/16" - 18 x 9/16" - 18
|
NH
(Union)
|
| 14. |
593930
|
[1] |
NUT
|
NH
Swivel Branch Nut Superseded by part number: 87022794
|
| 15. |
9822553
|
[1] |
HYD TUBE
|
NH
LH
|
| 16. |
86564596
|
[1] |
TUBE,9.50 mm OD
|
NH
LH, Hydraulic
|
| 17. |
9822130
|
[1] |
HYD TUBE
|
NH
LH
|
| 18. |
9822127
|
[1] |
TUBE
|
NH
RH, Hydraulic
|
| 19. |
9822552
|
[1] |
TUBE
|
NH
RH, Hydraulic
|
| 20. |
267870
|
[2] |
HYDRAULIC HOSE
|
NH
Hydraulic
|
| 21. |
9621560
|
[1] |
FLEXIBLE HOSE,9.53mm ID x 352.55mm L, SAE 100R17
|
NH
Hydraulic
|
| 22. |
9821682
|
[1] |
FLEXIBLE HOSE,9.65 mm ID x 609.60 mm, SAE 100 R2
|
NH
Hydraulic
|
| 23. |
9822400
|
[2] |
90 ELBOW
|
NH
Straight Thread
|
| 24. |
9822383
|
[1] |
HYDRAULIC VALVE
|
NH
|
| . . |
9848054
|
[1] |
SEAL KIT
|
NH
Superseded by part number: 279864
|
| 25. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 26. |
86637307
|
[1] |
HANDLE
|
NH
|
| 27. |
9822419
|
[1] |
HANDLE
|
NH
|
| 28. |
217465
|
[1] |
SPRING
|
NH
Extension
|
| 29. |
435-1614
|
[1] |
GROOVED PIN,3/16" x 7/8", Type A
|
CAS
Superseded by part number: 80837
|
| 30. |
432-1212
|
[1] |
COTTER PIN,3/16" x 3/4"
|
CAS
Superseded by part number: 87019
|
| 31. |
86635365
|
[2] |
CYLINDER ASSY.
|
NH
Hydraulic, Tailgate Lift, Refer to Fig. 026(1) Superseded by part number: 87019610
|
| 31. |
87019610
|
[2] |
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 381mm Stroke
|
PA
Tailgate Lift, Refer to Fig. 026(2)
|
| 32. |
495-11106
|
[4] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| 33. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
3/8" Tube Superseded by part number: 76344, 72186128
|
| 34. |
218-5057
|
[1] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
Superseded by part number: 76350
|
| 35. |
604896
|
[7] |
CLAMP,Dual, 3/8" Hose, 6mm Bolt
|
NH
Double, 3/8" Tubing Superseded by part number: 183825C1
|
| 36. |
604901
|
[4] |
CLAMP
|
NH
Single, 3/8" Tubing
|
| 37. |
814-6030
|
[7] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87317695
|
| 38. |
811-6050
|
[2] |
CARRIAGE BOLT,M6 x 1.0 x 56.6, Cl 8.8
|
CAS
Superseded by part number: 412364
|
| 39. |
814-6050
|
[1] |
BOLT,Hex, M6 x 1 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120056
|
| 40. |
495-21031
|
[8] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 41. |
832-46406
|
[8] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 42. |
86635332
|
[1] |
LATCH
|
NH
|
| 43. |
86636909
|
[2] |
LATCH
|
NH
RH
|
| 44. |
86636674
|
[2] |
SPACER,32.15mm ID x 39.68 OD x 29.98mm L
|
NH
|
| 45. |
164995
|
[4] |
WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk
|
NH
|
| 46. |
166065
|
[2] |
PIN,25.4mm OD x 66.5mm L
|
NH
Clevis, 1" x 2-5/8"
|
| 47. |
432-1228
|
[2] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 48. |
64972
|
[4] |
WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk
|
NH
Special, 1-9/32" ID x 2" OD x .135"
|
| 50. |
86522001
|
[1] |
SHIELD
|
NH
|
| 51. |
257163
|
[2] |
WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk
|
NH
2" OD
|
| 52. |
9846489
|
[1] |
SPRING,Compression, 1.81" OD x 9.44" L
|
NH
|
| 53. |
425-1014
|
[1] |
NUT,7/8"-9, G5
|
CAS
Superseded by part number: 9849647
|
| 54. |
425-1414
|
[1] |
JAM NUT,Jam, 7/8"-9, G5
|
CAS
|
| 55. |
86637228
|
[1] |
PIN,38.1mm OD x 91.5mm L
|
NH
|
| 56. |
86611730
|
[4] |
WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk
|
NH
2-3/8" OD
|
| 57. |
432-1232
|
[2] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Superseded by part number: 87400
|
| 58. |
515-22159
|
[1] |
CLAMP,5/8", Insul, 5/16" Bolt
|
CAS
Superseded by part number: 9706748
|
| 59. |
844-8020
|
[1] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 60. |
825-5148
|
[1] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 61. |
857072
|
[1] |
GAUGE
|
NH
3,000 PSI
|
| 62. |
102043
|
[1] |
GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk
|
NH
|
| 63. |
86637315
|
[1] |
CYLINDER
|
NH
Hydraulic, Bale Tension, Refer to Fig. 027 Superseded by part number: 87347263
|
| 64. |
76349
|
[1] |
PLUG,9/16" - 18 ORB
|
NH
|
| 65. |
218-754
|
[1] |
CAP,37 Degree, 9/16"-18
|
CAS
6, Hex Superseded by part number: 574342
|
| 66. |
218-5182
|
[2] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Superseded by part number: 163335
|
| 67. |
86605282
|
[1] |
TUBE,0.375" OD x 28.83", 4.18" L
|
NH
|
| 68. |
9847200
|
[1] |
HOSE,6.35mm ID x 2184.4mm L, SAE 100R1
|
NH
|
| 69. |
86627339
|
[1] |
HYD CONNECTOR
|
NH
-04, Female, NPTF Superseded by part number: 87016920
|
| 70. |
9845229
|
[1] |
COUPLING
|
NH
Male
|
| . . |
9845231
|
[1] |
COUPLING, QUICK, FEM
|
NH
Optional Superseded by part number: 73163493
|
| 71. |
9845230
|
[1] |
DUST CAP
|
NH
|
| 72. |
218-5148
|
[1] |
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
|
CAS
Superseded by part number: 84313
|
| 73. |
226131
|
[1] |
PIVOT
|
NH
Pivot Superseded by part number: 87654703
|
| 74. |
86637292
|
[1] |
ROD
|
NH
|
| 75. |
86628108
|
[1] |
SPRING
|
NH
|
| 76. |
432-812
|
[1] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 77. |
86554798
|
[1] |
PIN,31.7mm OD x 66mm L
|
NH
|
| 79. |
412327
|
[1] |
CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8
|
NH
|
| 80. |
86546256
|
[1] |
WASHER,64.29mm ID x 82.55mm OD x 1.7mm Thk
|
NH
Black
|
| 81. |
9801618
|
[2] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Male, 1/2"-14 NPTF Superseded by part number: 9412
|
