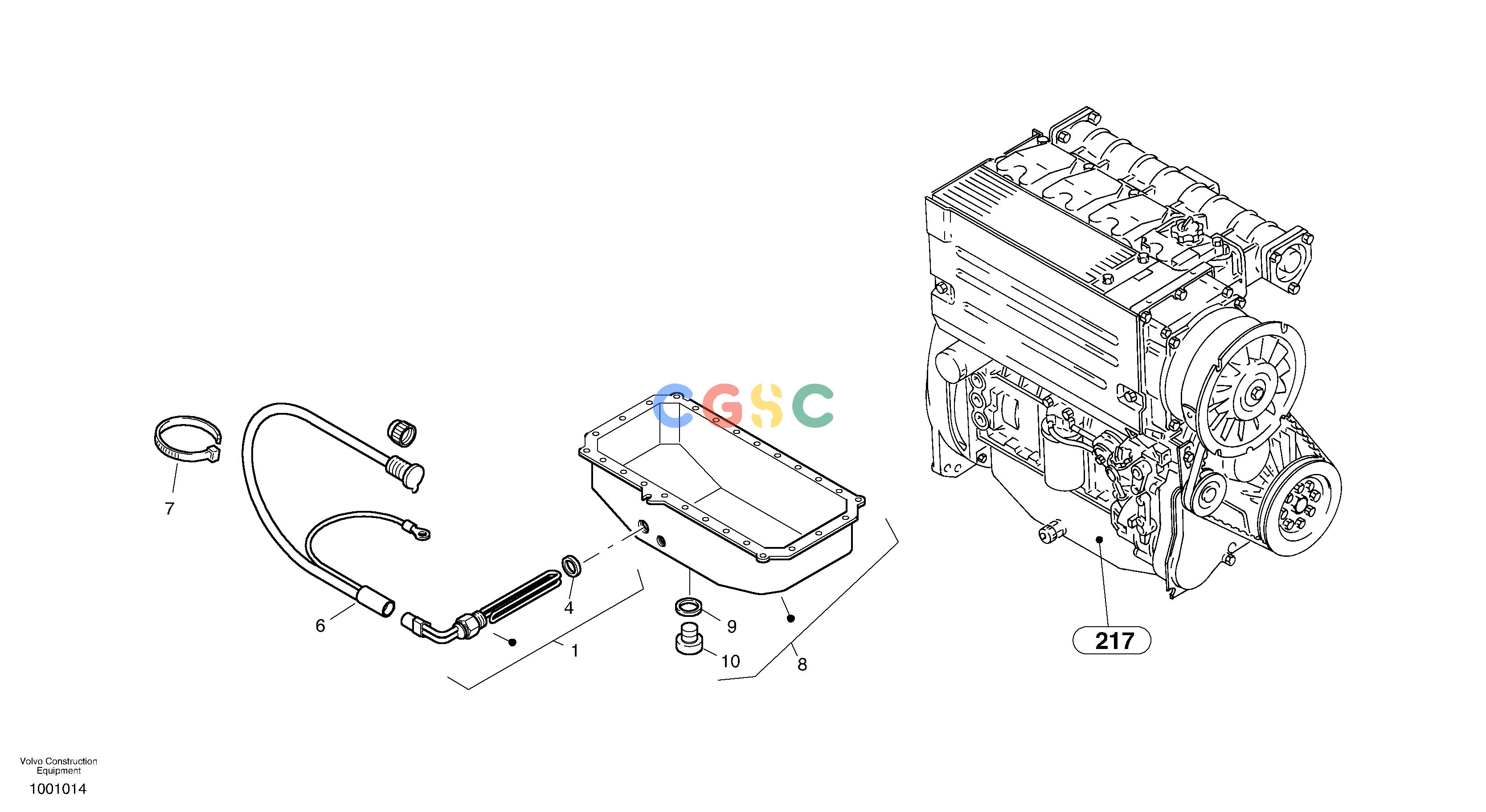

沃尔沃零件查询L30B Engine oil preheatingS/N - 1803869/1812999/ 18229991802201--1812201-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2800474
|
[1] |
Radiator
|
-1802470/-1812209
|
| 8. |
ZM2810253
|
[1] |
Oil pan
|
-1802470/-1812209
|
| 8. |
ZM2814017
|
[1] |
Oil pan
|
1802471-/1812210-
|
| 9. |
VOE13947624
|
[2] |
Plane gasket
|
A18x24
|
| 10. |
ZM7099428
|
[1] |
Screw plug
|
M18x1,5
|
| 1. |
VOE17406426
|
[1] |
Heating Pipe
|
1802471-/1812210-
|
| 2. |
ZM2800838
|
[1] |
O-ring
|
-1802470/-1812209
|
| 3. |
VOE21046233
|
[1] |
Sealing ring
|
-1802470/-1812209
|
| 4. |
ZM2800832
|
[1] |
Gasket
|
-1802470/-1812209
|
| 4. |
VOE20460026
|
[1] |
Sealing ring
|
1802471-/1812210-
|
| 5. |
ZM2800839
|
[1] |
Safety ring
|
-1802470/-1812209
|
| 6. |
ZM2810486
|
[1] |
Electric wire
|
|
| 7. |
ZM4375500
|
[2] |
Cable clamp
|
|
