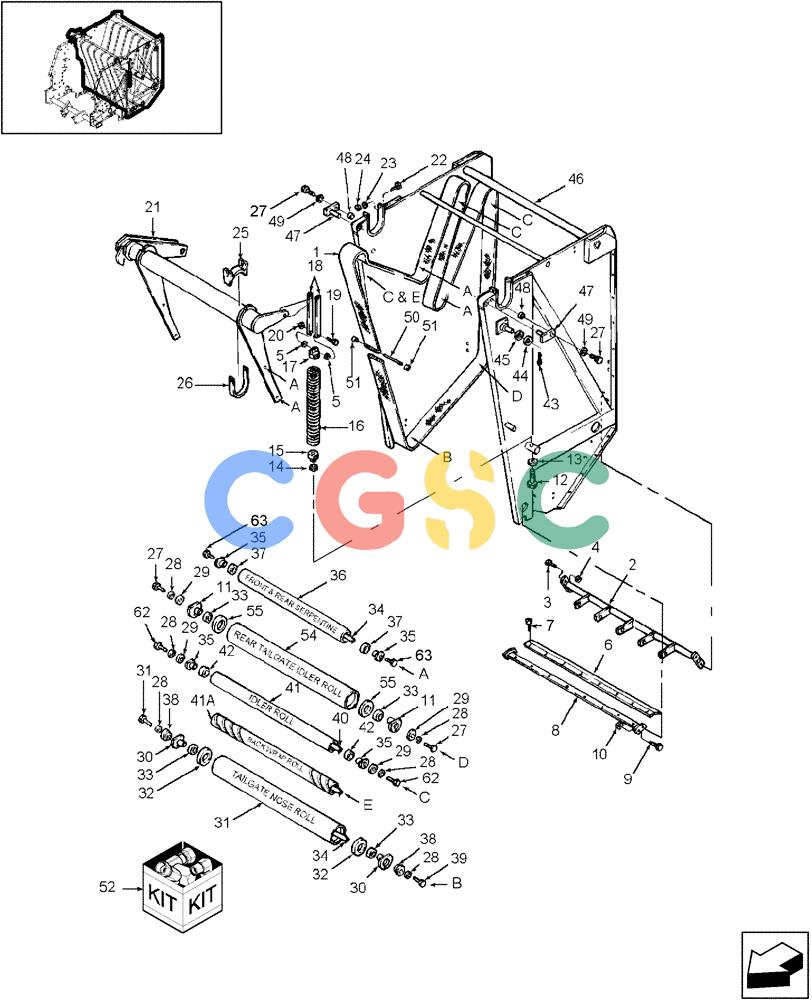

| 1. |
86616065
|
[6] |
BELT,177.80 mm W x 8712.20 mm L
|
NH
Chevron, Laced Superseded by part number: 87056534
|
| 1. |
87032889
|
[6] |
BELT,7.00" W x 343.00" L
|
PA
Endless, Chevron, Silage Special
|
| 1. |
86618461
|
[1] |
BELT,177.80 mm W x 1828.00 mm L
|
NH
Chevron, Laced, Repair Section
|
| 2. |
86628013
|
[1] |
GUIDE
|
NH
Belt
|
| 3. |
811-10030
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 4. |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 5. |
86636659
|
[2] |
SPACER,10.28mm ID x 15.85mm OD x 21.84mm L
|
NH
|
| 6. |
86628014
|
[1] |
ANGLE
|
NH
Scraper
|
| 6. |
9845575
|
[1] |
SCRAPER BLADE
|
NH
Silage Special
|
| 7. |
391510
|
[8] |
SELF-TAP SCREW,Hex Wshr Hd, M8 x 1.25 x 20mm
|
NH
Self-Tapping, M8 x 20
|
| 8. |
86628012
|
[1] |
SUPPORT
|
NH
|
| 9. |
811-10020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 11. |
86501067
|
[2] |
SUPPORT
|
NH
|
| 12. |
633038
|
[1] |
THREADED ROD,3/4" - 10 x 11-1/2" L
|
NH
|
| 13. |
495-21081
|
[1] |
WASHER,3/4"
|
CAS
Superseded by part number: 86511191
|
| 14. |
425-1012
|
[1] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 15. |
143672
|
[1] |
SPRING NUT
|
NH
Spring
|
| 16. |
621339
|
[1] |
SPRING
|
NH
Extension
|
| 17. |
854482
|
[1] |
SPRING NUT
|
NH
Spring
|
| 18. |
86636983
|
[2] |
LINK,326mm L
|
NH
|
| 19. |
814-10050
|
[2] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| 20. |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 21. |
86637303
|
[1] |
ARM
|
NH
Take Up
|
| 22. |
814-12045
|
[4] |
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
|
CAS
Superseded by part number: 9628065
|
| 23. |
495-11053
|
[8] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 24. |
832-46412
|
[4] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 25. |
86636552
|
[2] |
BEARING CAP
|
NH
|
| 26. |
9617265
|
[2] |
BAND
|
NH
|
| 27. |
614-12030
|
[6] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 28. |
65319
|
[12] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 29. |
29684
|
[6] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
17/32" ID x 2" OD x 3/16" Thk
|
| 30. |
86521601
|
[2] |
SUPPORT
|
NH
|
| 31. |
9829398
|
[1] |
ROLLER
|
NH
5.56, Tailgate Nose, Laced-Belts, Includes: (2) Ref. 43
|
| 31. |
9843233
|
[1] |
ROLLER
|
NH
5.56, Tailgate Nose, Endless Belt, Silage Special , Includes: (2) Ref. 43
|
| 32. |
9848489
|
[2] |
BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore
|
NH
Includes: Ref. 33 Superseded by part number: 47531138
|
| 33. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
Superseded by part number: F82059
|
| 34. |
9823372
|
[3] |
SHAFT,1135mm L
|
NH
Includes: Ref. 40A
|
| . . |
838-5526
|
[1] |
LOCK PIN,M5 x 26, Slotted
|
CAS
Superseded by part number: 82848074, 130045
|
| 35. |
86521602
|
[10] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 36. |
9842288
|
[2] |
ROLLER,88.9mm OD x 1142mm L
|
NH
3-1/2", Idler, Includes: Roll & (2) Ref. 37 Superseded by part number: 84356720
|
| 38. |
9614071
|
[2] |
CAP COVER
|
NH
|
| 39. |
814-12050
|
[2] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| 40. |
9823371
|
[3] |
SHAFT
|
NH
Superseded by part number: 87023402
|
| 41. |
9842286
|
[3] |
ROLLER
|
NH
3-1/2", Laced-Belt, Includes: (2) Ref. 42 Superseded by part number: 84600572
|
| 41. |
86517669
|
[1] |
ROLLER,101.6mm OD x 1176mm L
|
NH
3-1/2", Back Wrap, Endless-Belt, Silage Special & Bale Slice, (2) Ref. 42 Superseded by part number: 84600591
|
| 43. |
432-1228
|
[2] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 45. |
34627
|
[2] |
WASHER
|
NH
1-3/4" OD
|
| 46. |
86629884
|
[1] |
PLATE ASSY.
|
NH
Tailgate
|
| 47. |
86637276
|
[2] |
PIN
|
NH
|
| 48. |
86622618
|
[2] |
SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk
|
NH
|
| 49. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 50. |
9843257
|
[6] |
CABLE
|
NH
Lacing
|
| 51. |
9843258
|
[12] |
TUBE
|
NH
Cable
|
| 52. |
86625980
|
[1] |
DIA KIT, HARVESTER
|
NH
Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions Superseded by part number: 84399081
|
| . . |
9847138
|
[1] |
REPAIR KIT
|
NH
Lacing, Includes: Box of 18 Cards, 45 Hooks per Card
|
| 54. |
86502852
|
[1] |
ROLLER,114.3mm OD x 1176mm L
|
NH
4-1/2", Idler, Rear Tailgate, Includes: (2) Ref. 55 Superseded by part number: 84602592
|
| 55. |
86500662
|
[2] |
BEARING ASSY
|
NH
Includes: Ref. 42
|
| 62. |
627-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
IH
Superseded by part number: 43260
|
| 63. |
86627635
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9
|
NH
Cap, HH, CL 8.8 P M12 x 30, 6.5 Head Height
|
