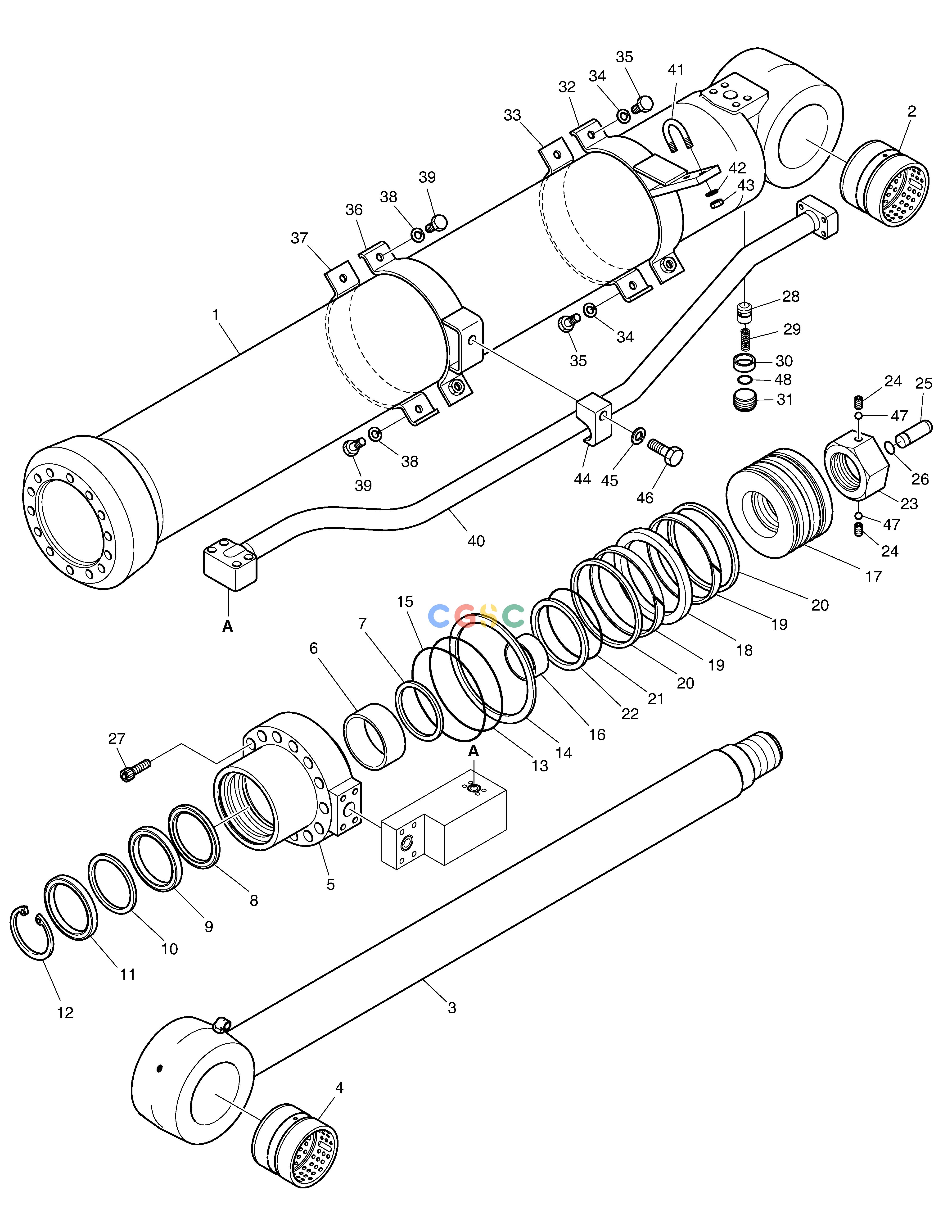

斗山零件查询ARM CYLINDER-LOCK VALVE DX360LCA(S/N:5950~) Doosan parts catalog online

广数供应链运营团队, 14 02月, 2025，浏览： 690 次

Pos.	Part No	Qty	Parts name
.	401107-00757	[1]
-.	400305-00056E	[1]
-.	400305-00056C	[1]
1.	420402-00115A	[1]
10.	111102-00133	[1]
11.	1.180-00501	[1]	WIPER;DUST
12.	115-00108	[1]	RING;RETAINING
13.	S8011601	[1]	O-RING
14.	K9001953	[1]	RING;BACK UP
15.	2180-1216D150	[1]	O-RING
16.	K2002084	[1]	RING;CUSHION
17.	130602-00347	[1]
18.	K9002277	[1]	SEAL;SLIPPER
19.	115-00112	[2]	RING;WEAR
2.	131004-00139	[1]
20.	115-00110	[2]	RING;SLYD
21.	S8011101	[1]	O-RING
22.	111102-00016	[2]
23.	120312-00477	[1]
24.	S3526408	[2]
25.	K9002278	[1]	PLUNGER;CUSHION
26.	115-00081	[1]	RING;STOP
27.	S2228261	[14]	BOLT;SOCKET
28.	1.420-00052	[1]	VALVE;CHECK
29.	129-00071	[1]	SPRING
3.	920602-00143B	[1]
30.	1.195-00022	[1]	SUPPORT;SPRING
31.	430221-00136	[1]	PLUG
32.	K9002280	[1]	PIPE BAND ASS'Y-H
33.	124-00129	[1]	BAND;PIPE
34.	S5100703	[2]	WASHER;SPRING
35.	S0560563	[2]	BOLT
36.	K9002281	[1]	PIPE BAND ASS'Y-R
37.	124-00129	[1]	BAND;PIPE
38.	S5100703	[2]	WASHER;SPRING
39.	S0560563	[2]	BOLT
4.	131004-00139	[1]
40.	K9002678	[1]	PIPE ASS'Y-R
40.	420210-02261	[1]
41.	K9001158	[1]	U-BOLT
42.	S5100603	[2]	WASHER
43.	S4012633	[2]	NUT
44.	K9001159	[1]	CLAMP;PIPE
45.	S5102903	[1]	WASHER
46.	S0521853	[1]	BOLT
47.	110202-00014	[2]
48.	S8000141	[1]	O-RING
5.	110508-18459	[1]
6.	1.110-00072	[1]	DD-BUSH
7.	1.115-00056	[1]	RING;RETAINING
8.	K9002080	[1]	SEAL;BUFFER
9.	K9002081	[1]	PACKING;U
