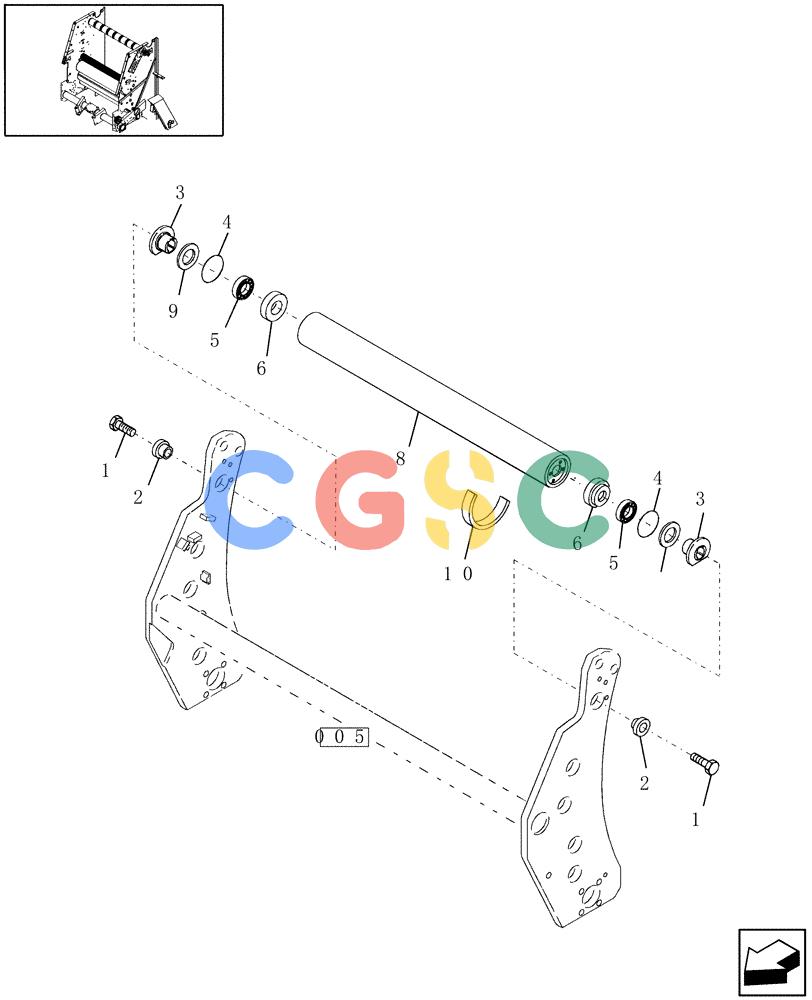

凯斯零件查询(RBX451) - CASE IH ROUND BALER (12/01-10/02) (006) - SLEDGE FOLLOWER ROLLER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
375 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827-12045
|
[2] |
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
|
CAS
Superseded by part number: 86639031
|
| 2. |
87030468
|
[2] |
HUB
|
PA
Superseded by part number: 87398962
|
| 3. |
86516311
|
[2] |
SUPPORT
|
NH
|
| 4. |
9841725
|
[2] |
O-RING,0.21" Thk x 1.85" ID, -328, 40 Duro
|
NH
M47.00 ID x 5.3
|
| 5. |
8050825
|
[2] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
Superseded by part number: F82059
|
| 6. |
9848489
|
[2] |
BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore
|
NH
Includes: Ref. 5 Superseded by part number: 47531138
|
| 8. |
9829395
|
[1] |
ROLLER
|
NH
5.56, Smooth Roll, no Loops, W/ (2) Ref. 6, Except Silage Special Superseded by part number: 84602063
|
| 8. |
86546082
|
[1] |
ROLLER
|
NH
5.56, Loops on Roll, No Expeller, W/ (2) Ref. 6, Silage Special
|
| 9. |
9805640
|
[2] |
SHIELD,38.3mm ID x 74.5mm OD x 3.5mm Thk
|
NH
|
| 10. |
9829377
|
[12] |
STRAP
|
NH
Loop, 5.56, for 9843245 & 86546082 Rolls
|
