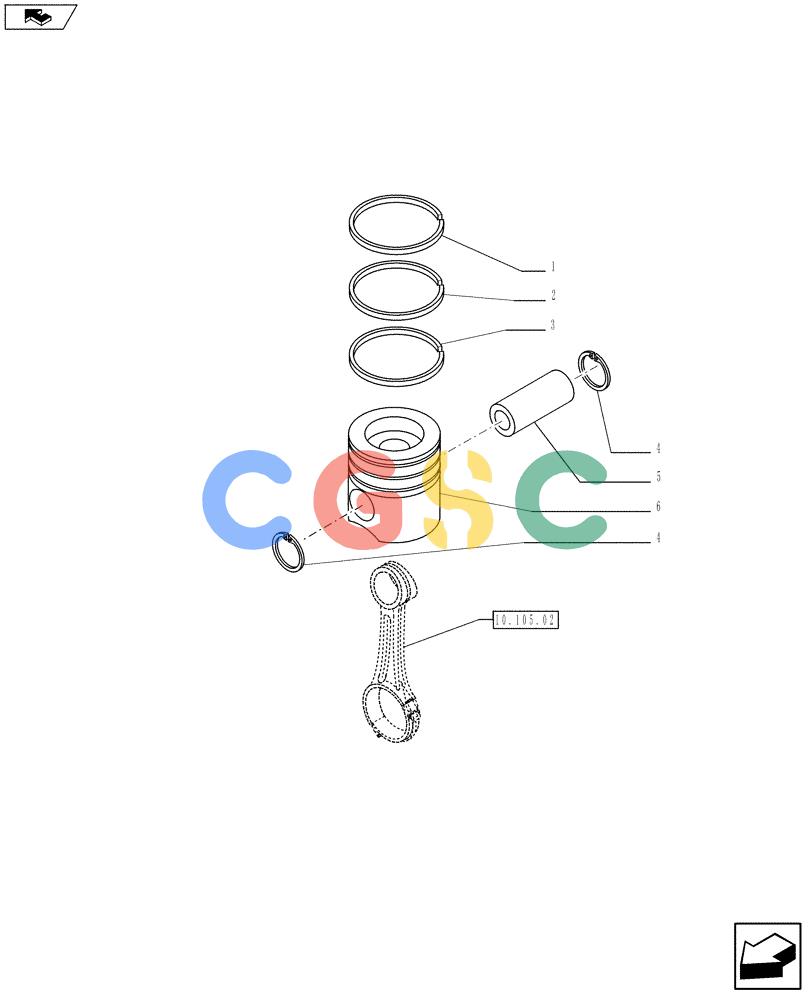

神钢零件查询(F4GE9484C J601) - ENGINE 504203229 - 84513501 (1/14-) (10.105.01) - PISTON - ENGINE (2859354) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
878 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854603 | [4] | PISTON RING | BHBSTD |
| 1. | 2856713 | [4] | PISTON RING | BHBOversize 0.4 mm Superseded by part number: |
| 1. | 2856714 | [4] | PISTON RING | BHBOversize 0.8 mm |
| 2. | 2830158 | [4] | PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk | TORSTD |
| 2. | 2830159 | [4] | PISTON RING,95.4mm ID x 104.4mm OD x 2.39mm Thk | BHBOversize 0.4 mm |
| 2. | 2830160 | [4] | PISTON RING | BHBOversize 0.8 mm |
| 3. | 2852037 | [4] | SEAL,95.3mm ID x 104mm OD x 4mm Thk | TORSTD Superseded by part number: 98486083 |
| 3. | 2853875 | [4] | OIL SCRAPER RING +0.,95.3mm ID x 104mm OD | BHBOversize 0.4 mm |
| 3. | 2853876 | [4] | PISTON RING | BHBOversize 0.8 mm |
| 4. | 2854030 | [8] | SNAP RING,M40.8 OD | TOR Superseded by part number: 504093651 |
| 5. | 4892712 | [4] | PISTON PIN,38mm OD x 82mm L | TOR |
