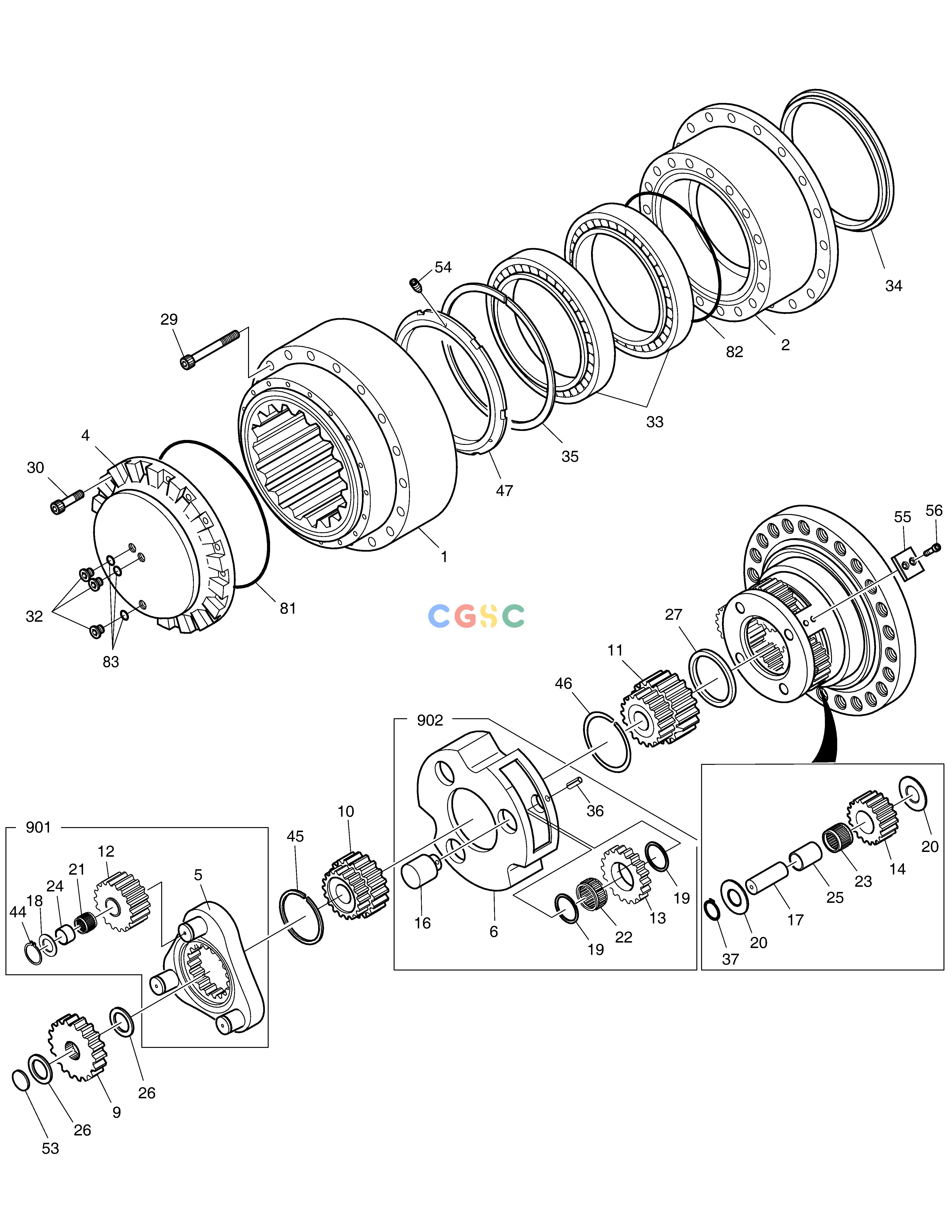

Pos.	Part No	Qty	Parts name
-.	K1003134	[2]	TRAVEL REDUCTION GEAR
1.	104-00035A	[1]	GEAR;RING
10.	404-00081A	[1]	GEAR;SUN NO.2
11.	404-00082A	[1]	GEAR;SUN NO.3
12.	1.403-00061	[3]	GEAR;PLANETARY NO.1
13.	1.403-00065	[3]	GEAR;PLANETARY NO.2
14.	104-00036	[4]	GEAR;PLANETARY NO.3
16.	K9002264	[3]	PIN NO.2
17.	123-00285	[4]	PIN NO.3
18.	1.412-00121	[3]	PLATE;SIDE E
19.	1.412-00117	[6]	PLATE;SIDE A
2.	1.402-00129A	[1]	HOUSING
20.	412-00038	[8]	PLATE;SIDE F
21.	1.216-00017	[3]	CAGE,NEEDLE
22.	1.216-00015	[3]	CAGE;NEEDLE
23.	1.216-00018	[4]	CAGE;NEEDLE
24.	1.115-00232	[3]	RING;INNER
25.	110-00126	[4]	BUSH;FLOATING
26.	114-00347	[2]	RING;THRUST 60
27.	114-00348	[1]	RING;THRUST 90
29.	S2222671	[28]	BOLT;SOCKET
30.	S2208871	[12]	BOLT;SOCKET
32.	2181-1890D4	[3]	PLUG
33.	K9009895	[2]	BEARING;ANGULAR
34.	180-00345A	[1]	SEAL;FLOATING
35.	1.114-00054	[1]	SHIM 1.0
36.	1.123-00081	[3]	PIN;SPRING
37.	S6510420	[4]	RING
4.	1.430-00216B	[1]
44.	S6500450	[3]	RING;SNAP
45.	124-00150	[1]	CLIP
46.	124-00151	[1]	CLIP
47.	401003-00095	[1]
5.	1.230-00009A	[1]	CARRIER NO.1
53.	1.114-00306	[1]	WASHER 1.0t
53.	K9002676	[1]	WASHER 1.5t
54.	K9006417A	[3]	SCREW;SET
55.	110956-00045A	[4]
56.	S2215266	[8]	BOLT
6.	1.230-00015A	[1]	CARRIER NO.2
81.	1.180-00162A	[1]	O-RING
82.	1.180-00163A	[1]	O-RING
83.	S8000181	[3]	O-RING
9.	404-00080A	[1]	GEAR;SUN NO.1
901.	230-00043	[1]
902.	230-00044	[1]	CARRIER NO.2 SUB ASS'Y
