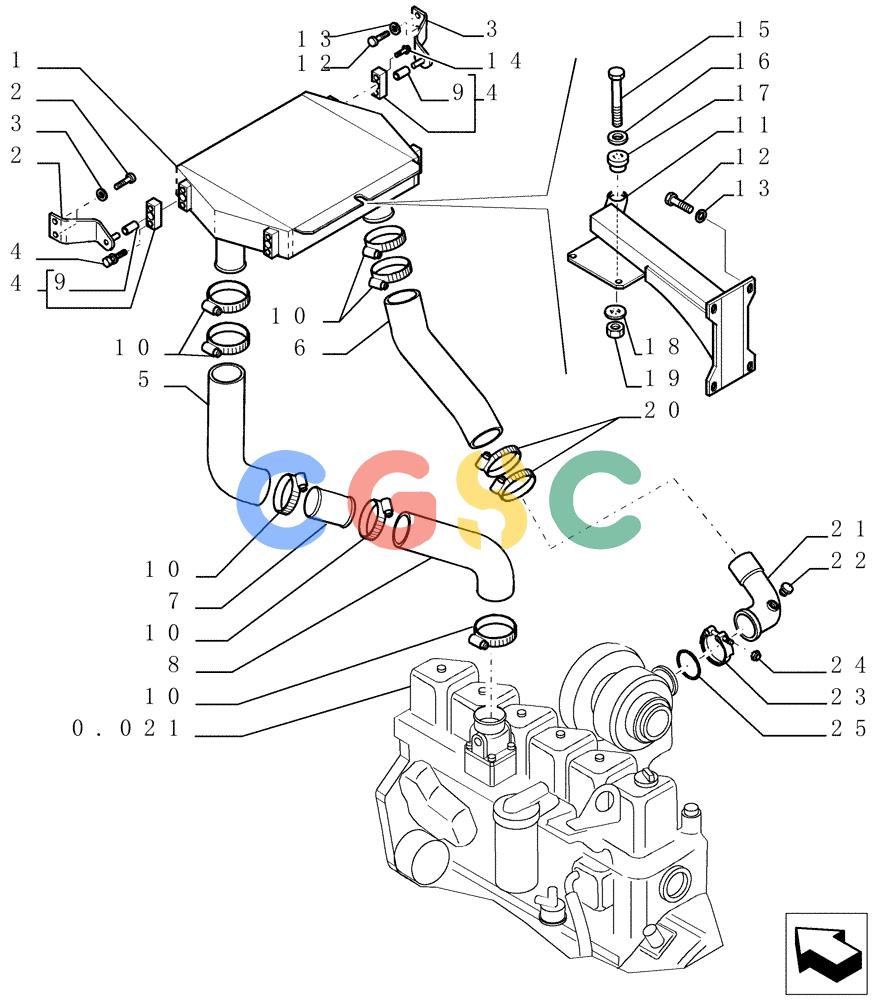

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (0.505[05]) - ENGINE - RELATED PARTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093416 | [1] | RADIATOR | LECAFTERCOOLER TESIO - CHAUSSON |
| 2. | 76093635 | [1] | SUPPORT | LECLEFT |
| 3. | 76093636 | [1] | SUPPORT | LECRIGHT |
| 4. | 76093634 | [2] | PAD | LEC Superseded by part number: 87335164 |
| 5. | 76093557 | [1] | HOSE | LEC |
| 6. | 76093560 | [1] | HOSE | LEC |
| 7. | 76093559 | [1] | RIGID TUBE,76 mm OD, 100 mm Length | LEC |
| 8. | 76093558 | [1] | HOSE | LEC |
| 9. | 76093562 | [1] | BUSHING | LEC Superseded by part number: 87335166 |
| 10. | 71406250 | [7] | CLAMP,853mm - 942mm | LEC |
| 11. | 76093548 | [1] | SUPPORT | LEC |
| 12. | 11106431 | [8] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 13. | 12626231 | [8] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 14. | 14306531 | [4] | HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 130346A1 |
| 15. | 11113631 | [2] | SCREW,Hex, M12 x 70mm, Cl 10.9 | LEC Superseded by part number: 86505259 |
| 16. | 12648531 | [2] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 17. | 76043497 | [1] | PAD | LEC |
| 18. | 76039959 | [1] | WASHER | LEC |
| 19. | 12577521 | [1] | NUT,M12 x 1.75 | LEC |
| 20. | 71416949 | [2] | CLAMP,77.5mm - 83.3mm | TOR |
| 21. | 76076951 | [1] | ELBOW | LEC |
| 22. | 70917426 | [1] | PLUG | CMI |
| 23. | 76074425 | [1] | CLAMP | LEC Superseded by part number: 76195063 |
| 24. | 76077510 | [1] | NUT | LEC Superseded by part number: J923041 |
| 25. | 76077524 | [1] | SEAL | LEC Superseded by part number: J883284AM |
