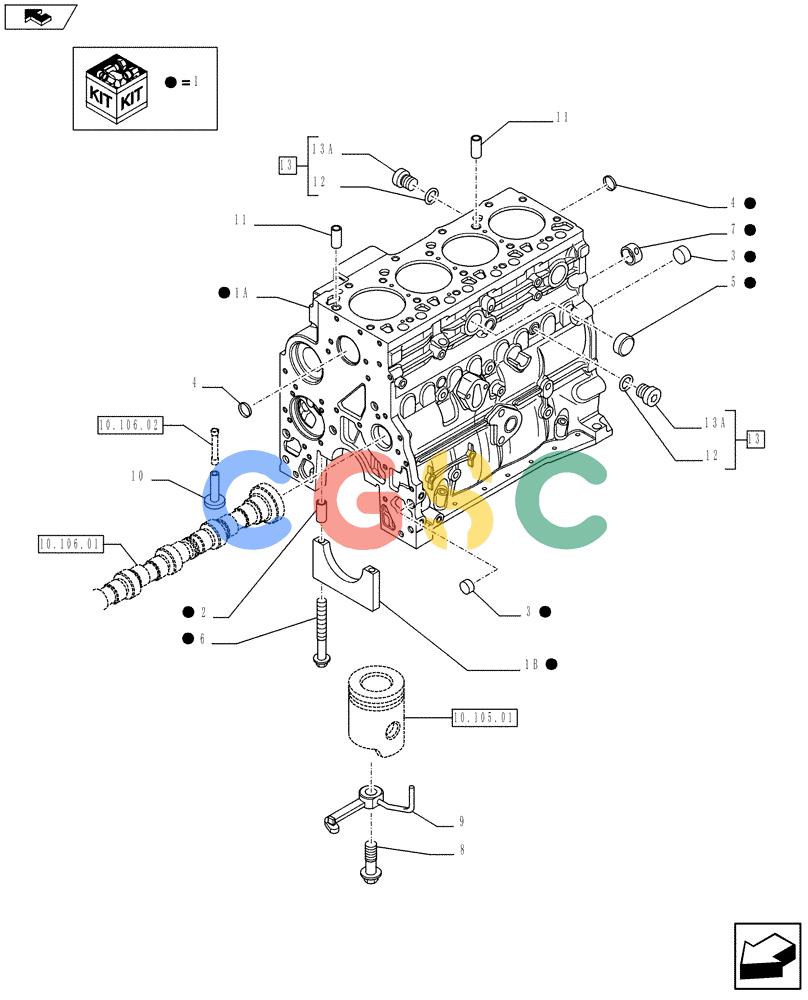

神钢零件查询(F4GE9484C J602) - ENGINE 504242281 - 84473213 (1/14-) (10.001.02) - CRANKCASE (2852007) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
835 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 1B. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | 4899026 | [10] | DOWEL,M18 x 10 | TOR |
| 3. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TOR |
| 4. | 4895038 | [4] | EXPANSION PLUG,M58.06 | TOR |
| 5. | 4895228 | [2] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 6. | 4891353 | [10] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 7. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 8. | 4894218 | [4] | SCREW,Special, M8 x 20 | TOR |
| 9. | 2852203 | [4] | NOZZLE, PISTON COOLI | TOR Superseded by part number: 5801910166, 5801639154 |
| 10. | J931623 | [8] | TAPPET | CAS Superseded by part number: 4895180 |
| 11. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 12. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
| 13. | 4895392 | [2] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY |
| 13A. | NSS | [2] | NOT SOLD SEPARAT | CON |
