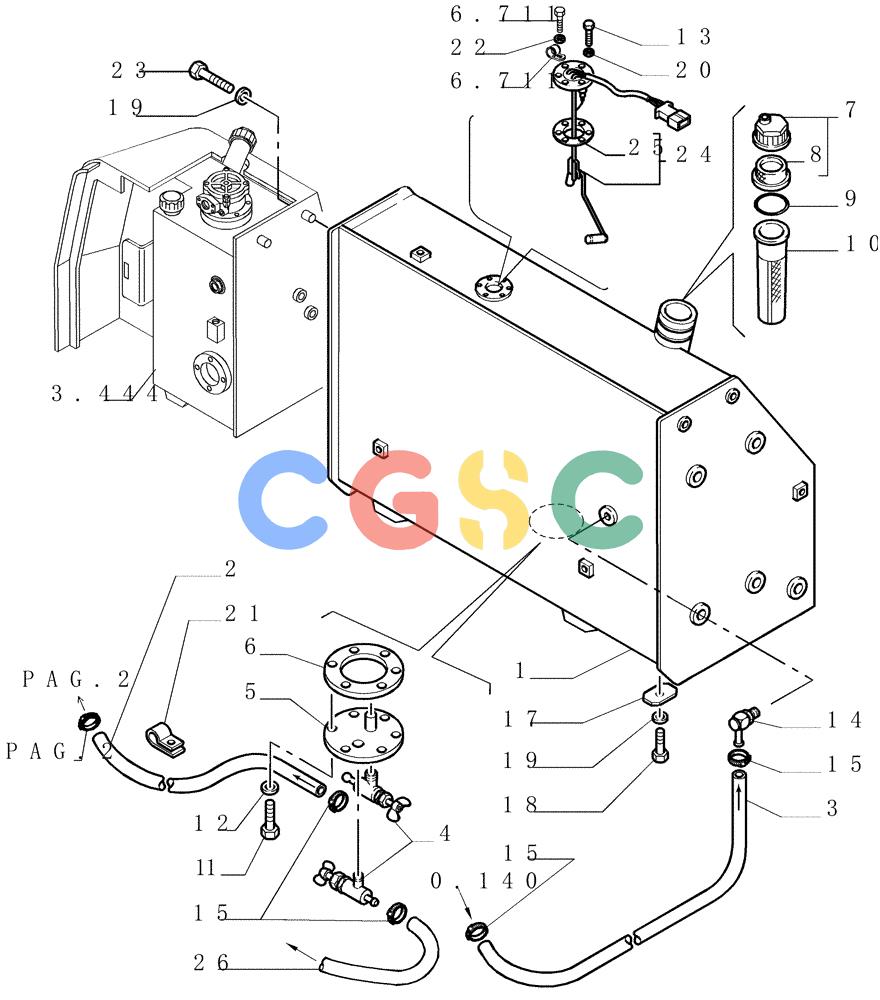

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (0.510[01]) - FUEL TANK New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093321 | [1] | FUEL TANK | LEC |
| 2. | 76053285 | [1] | FUEL HOSE,11.0 mm ID x 2800.0 mm | LEC Superseded by part number: 19056787 |
| 3. | 76069963 | [1] | FUEL HOSE,7.50 mm ID x 3100.00 mm | LEC Superseded by part number: 19056687 |
| 4. | 585834 | [2] | DRAINCOCK/TAP SUPPLY | LEC |
| 5. | 76046611 | [1] | FLANGE | LEC |
| 6. | 73100021 | [1] | GASKET,3.17mm Thk | LEC |
| 7. | 79104494 | [1] | CAP | LEC- ASSY |
| 8. | 79110132 | [1] | ELEMENT | LEC Superseded by part number: 79104494 |
| 9. | 4971843 | [1] | CIRCLIP | LEC |
| 10. | 79107317 | [1] | FILTER STRAINER | LECOIL INTAKE |
| 11. | 11112231 | [6] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 12. | 70928460 | [6] | WASHER | LEC |
| 13. | 13309017 | [5] | SCREW,Pozidriv Oval Csk Hd, M4 x 12mm, Cl 5.8 | LEC Superseded by part number: 13309011 |
| 14. | 70933986 | [1] | ELBOW | LEC |
| 15. | 79084753 | [5] | HOSE CLIP,M10-18 | LEC |
| 17. | 79099907 | [1] | SHIM | LEC |
| 18. | 11115631 | [8] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LEC |
| 19. | 12644931 | [10] | WASHER,14.4mm ID x 32mm OD x 4mm Thk | LEC |
| 20. | 13336407 | [5] | WASHER | LEC5 |
| 21. | 10117201 | [1] | CLAMP | LEC3-10 |
| 22. | 13336707 | [1] | WASHER | LEC7 |
| 23. | 11115531 | [2] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 24. | 79102090 | [1] | SENDER UNIT | LEC- FUEL LEVEL |
| 25. | 79031103 | [1] | GASKET,3mm Thk | LEC |
| 26. | 76031267 | [1] | FUEL HOSE,11.00 mm ID x 450.00 mm | LEC Superseded by part number: 19056787 |
