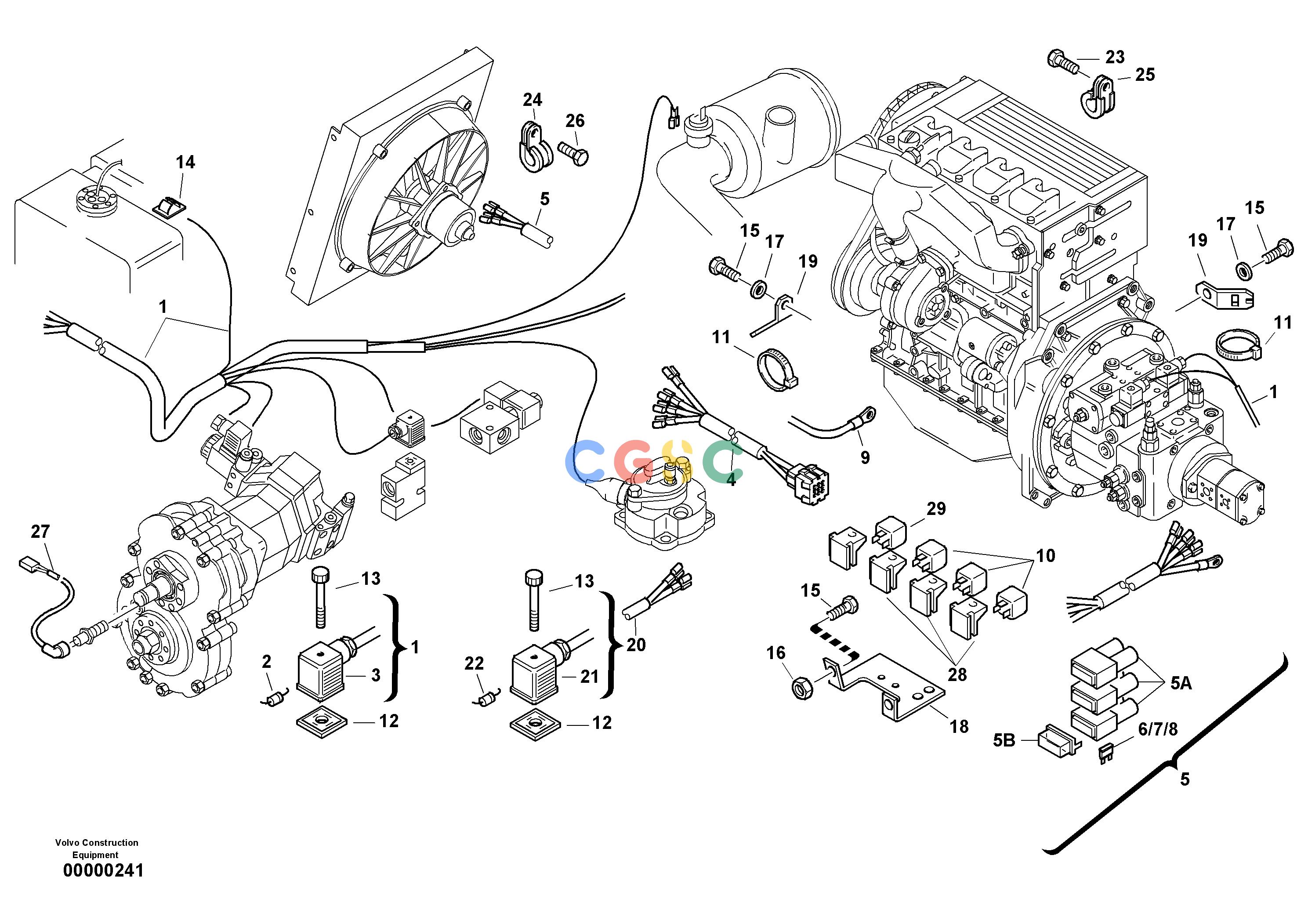

沃尔沃零件查询L32 Electric installationTYPE 184 SER NO - 22001840001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813865
|
[1] |
Electric wire, main line
|
|
| 2. |
ZM4374365
|
[6] |
Diode
|
|
| 3. |
VOE14371057
|
[6] |
Socket
|
|
| 4. |
ZM2812823
|
[1] |
Electric wire
|
|
| 5. |
ZM2812824
|
[1] |
Wiring harness
|
|
| 5A. |
ZM2810457
|
[3] |
Fuse holder
|
|
| 5B. |
ZM2810488
|
[3] |
Cover
|
|
| 6. |
ZM2810456
|
[1] |
Safety, glow time
|
60A
|
| 7. |
ZM2809869
|
[1] |
Safety, climate
|
30A
|
| 8. |
VOE11882446
|
[1] |
Fuse
|
40A
|
| 9. |
ZM2806471
|
[1] |
Electric wire
|
|
| 10. |
ZM2810112
|
[1] |
Relay
|
70A
|
| 11. |
ZM4375500
|
[15] |
Cable clamp
|
|
| 12. |
VOE14371058
|
[7] |
Seal
|
|
| 13. |
VOE11305562
|
[7] |
Screw
|
|
| 14. |
VOE11305436
|
[2] |
Clip
|
|
| 15. |
ZM7095370
|
[5] |
Screw
|
M8x16
|
| 16. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 17. |
VOE11305837
|
[3] |
Washer
|
B 8,4
|
| 18. |
ZM2812463
|
[1] |
Retainer
|
|
| 19. |
ZM2810491
|
[3] |
Retainer
|
|
| 20. |
ZM2813508
|
[1] |
Electric wire, engine dev
|
|
| 21. |
VOE11306801
|
[1] |
Socket
|
|
| 22. |
ZM4374365
|
[1] |
Diode
|
|
| 23. |
VOE13970944
|
[1] |
Hexagon screw
|
M10x16
|
| 24. |
ZM5143022
|
[1] |
Pipe clip
|
|
| 25. |
ZM4383294
|
[1] |
Clip
|
|
| 26. |
VOE13946544
|
[1] |
Screw
|
M6x16
|
| 27. |
ZM2813874
|
[1] |
Electric wire
|
|
| 28. |
ZM2801502
|
[4] |
Socket
|
|
| 29. |
ZM2906903
|
[1] |
Relay - glow time
|
|
