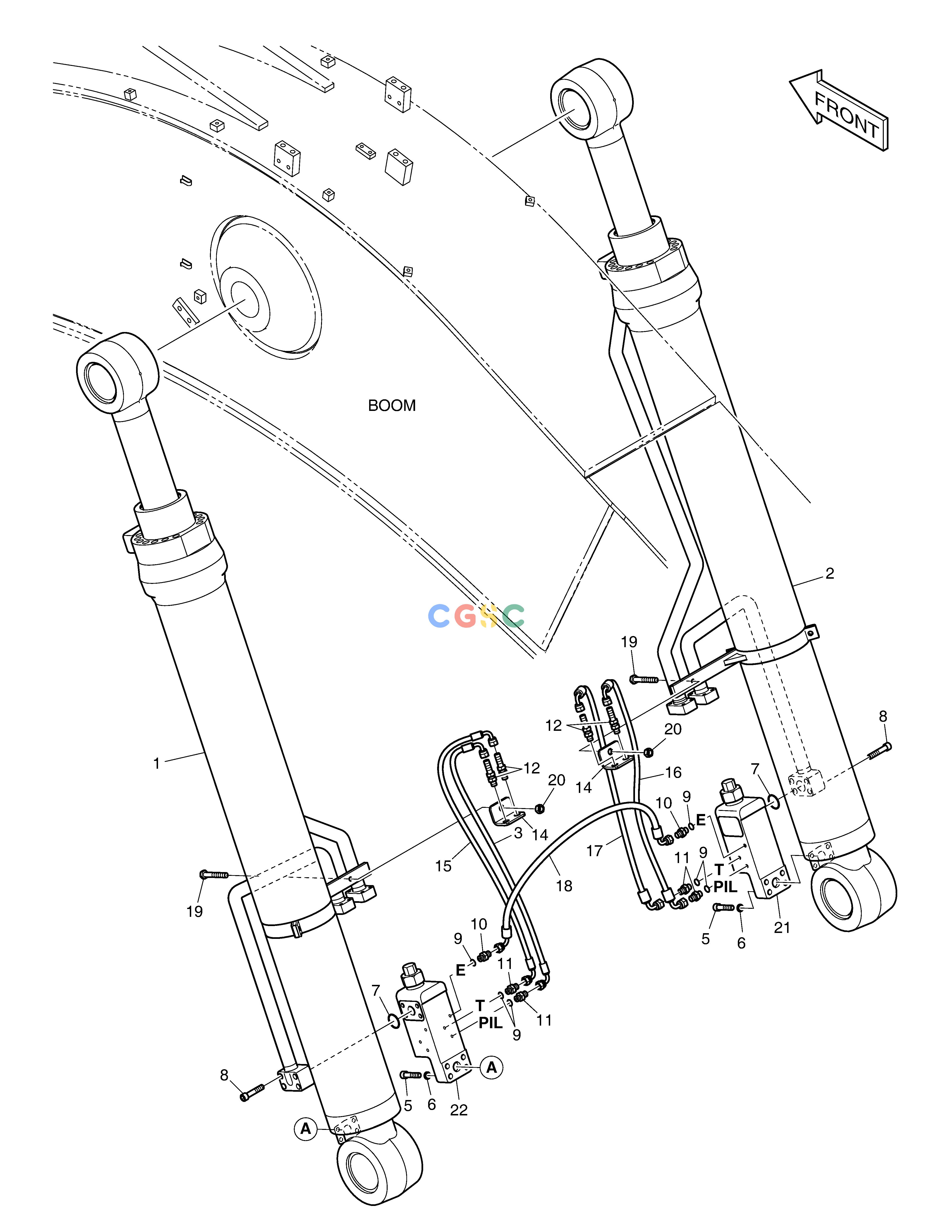

斗山零件查询BOOM PIPING - LOCK VALVE DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02138
|
[-] |
|
|
| 1. |
400309-00086E
|
[1] |
|
|
| 1. |
400309-00086B
|
[1] |
|
|
| 1. |
400309-00086C
|
[1] |
|
|
| 10. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 11. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 12. |
DS2205008
|
[4] |
|
|
| 14. |
195-01535A
|
[2] |
BRACKET
|
|
| 15. |
DS2091135
|
[1] |
HOSE
|
|
| 16. |
DS2091260
|
[1] |
|
|
| 17. |
DS2091260
|
[1] |
|
|
| 18. |
DS2059383
|
[1] |
HOSE PF1/4-800L
|
|
| 19. |
S0561466
|
[2] |
BOLT
|
|
| 2. |
400309-00087C
|
[1] |
|
|
| 2. |
400309-00087E
|
[1] |
|
|
| 2. |
400309-00087B
|
[1] |
|
|
| 20. |
S4012733
|
[2] |
NUT
|
|
| 21. |
410114-00049A
|
[1] |
|
|
| 21. |
410114-00049
|
[1] |
|
|
| 22. |
410114-00050A
|
[1] |
|
|
| 22. |
410114-00050
|
[1] |
|
|
| 3. |
DS2091135
|
[1] |
HOSE
|
|
| 5. |
S2215766
|
[8] |
BOLT
|
|
| 6. |
S5110703
|
[8] |
WASHER
|
|
| 7. |
DS2856003
|
[2] |
O-RING
|
|
| 7. |
2180-1026D19
|
[2] |
O-RING
|
DS2856003
|
| 8. |
S2215666
|
[8] |
BOLT;SOCKET
|
|
| 8. |
S2215866
|
[8] |
BOLT;SOCKET M12X1.75X60
|
|
| 9. |
S8000111
|
[6] |
O-RING
|
|
