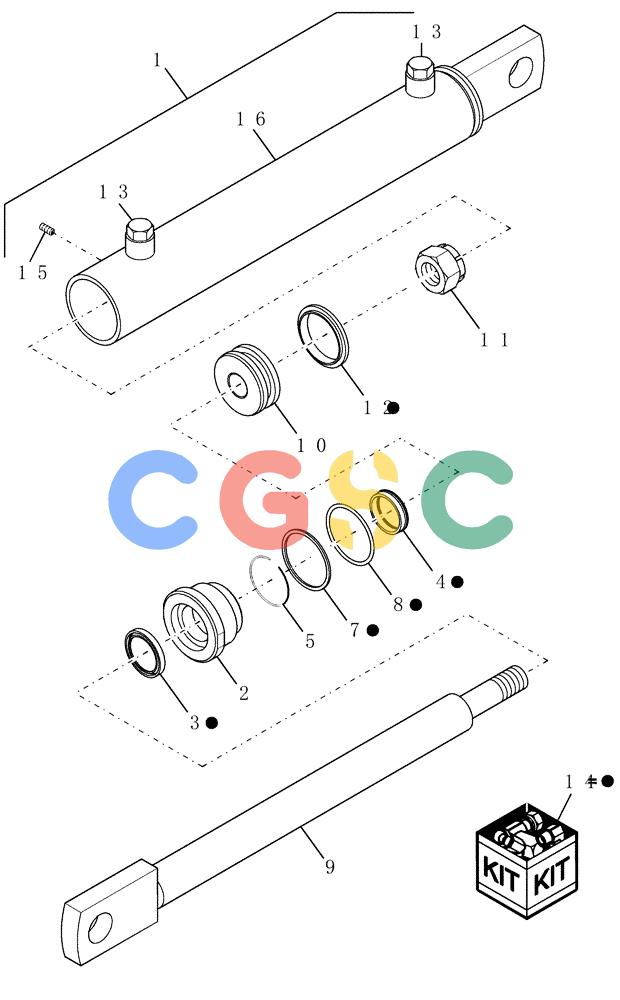

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (07.27[1]) - HYDRAULICS CYLINDER, TAILGATE LIFT, 86628749 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86628749
|
[1] |
HYDRAULIC CYLINDER
|
PA
Tailgate Lift Superseded by part number: 87018026
|
| 2. |
785811
|
[1] |
CYLINDER HEAD
|
NH
|
| 3. |
529340
|
[1] |
SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk
|
NH
Rod Wiper
|
| 4. |
86513307
|
[1] |
SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk
|
NH
1.250" ID x 1.500" OD
|
| 5. |
512016
|
[1] |
SNAP RING
|
NH
Int, 2.125"
|
| 7. |
270103
|
[1] |
BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk
|
NH
Backup, 1.772" ID x .043" Thk
|
| 8. |
238-5224
|
[1] |
O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro
|
CAS
Superseded by part number: 510120
|
| 9. |
86628755
|
[1] |
PISTON ROD
|
PA
Superseded by part number: 87025722
|
| 10. |
9827615
|
[1] |
PISTON
|
NH
Superseded by part number: 47583103
|
| 11. |
280724
|
[1] |
LOCK NUT,3/4" - 16
|
NH
|
| 12. |
86553483
|
[1] |
SEAL
|
NH
3 Piece, Piston
|
| 13. |
76349
|
[2] |
PLUG,9/16" - 18 ORB
|
NH
|
| 14. |
86511584
|
[1] |
REPAIR KIT
|
NH
|
| 15. |
529034
|
[1] |
SET SCREW
|
NH
HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"
|
| 16. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Cylinder Barrel
|
