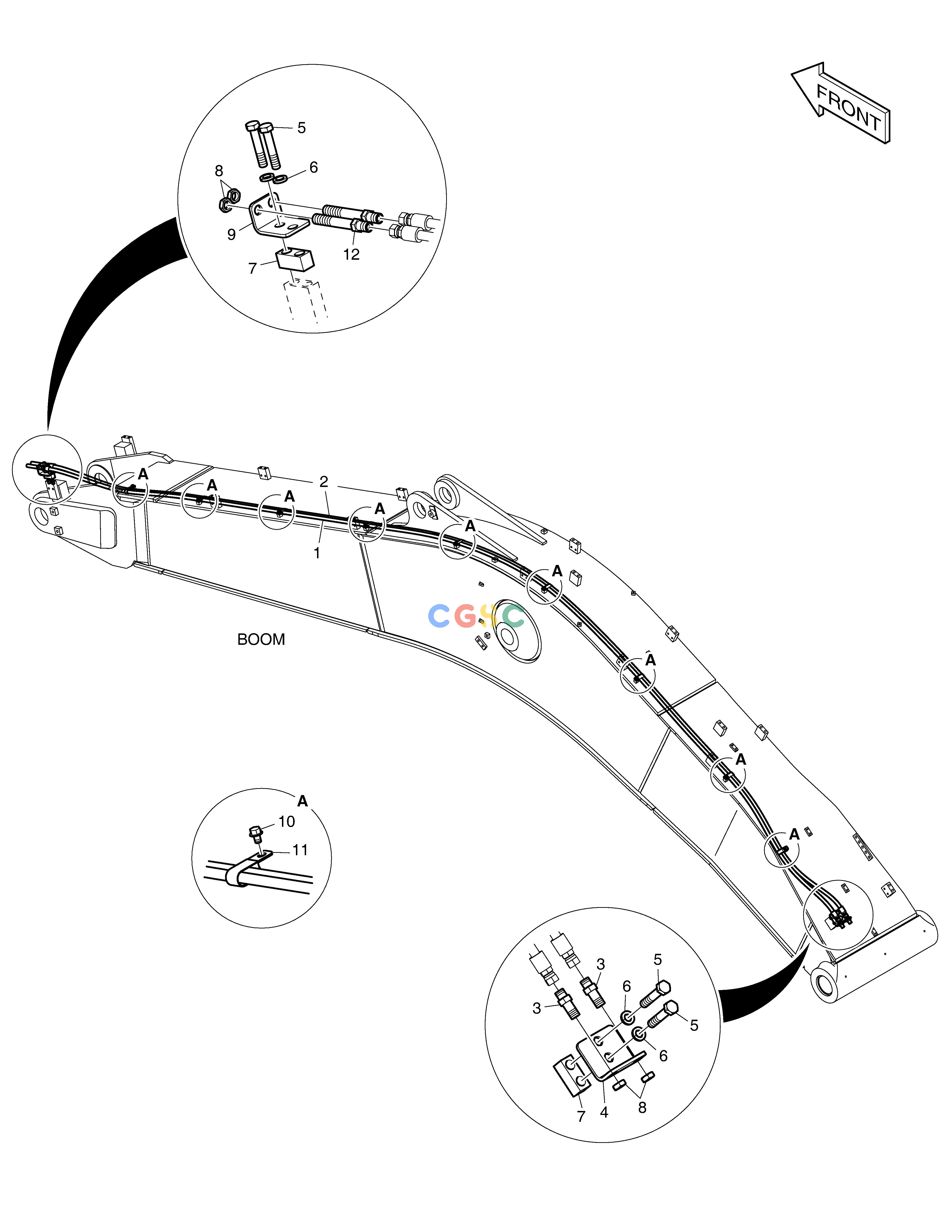

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-11601 | [-] | ||
| 1. | DS2053937 | [1] | HOSE | |
| 10. | K1001029 | [9] | BOLT | |
| 11. | 124-00199D1 | [9] | CLIP | |
| 12. | K1000112 | [2] | ADAPTER | |
| 2. | DS2053835 | [1] | HOSE | |
| 3. | 181-00078D1 | [2] | ADAPTER | |
| 4. | 195-00163 | [1] | BRACKET | |
| 5. | S0563466 | [4] | BOLT | |
| 6. | 120804-00080 | [4] | WASHER | |
| 7. | K1004006 | [2] | PLATE | |
| 8. | 121-00010D1 | [4] | NUT | |
| 9. | 195-02705 | [1] | BRACKET |
