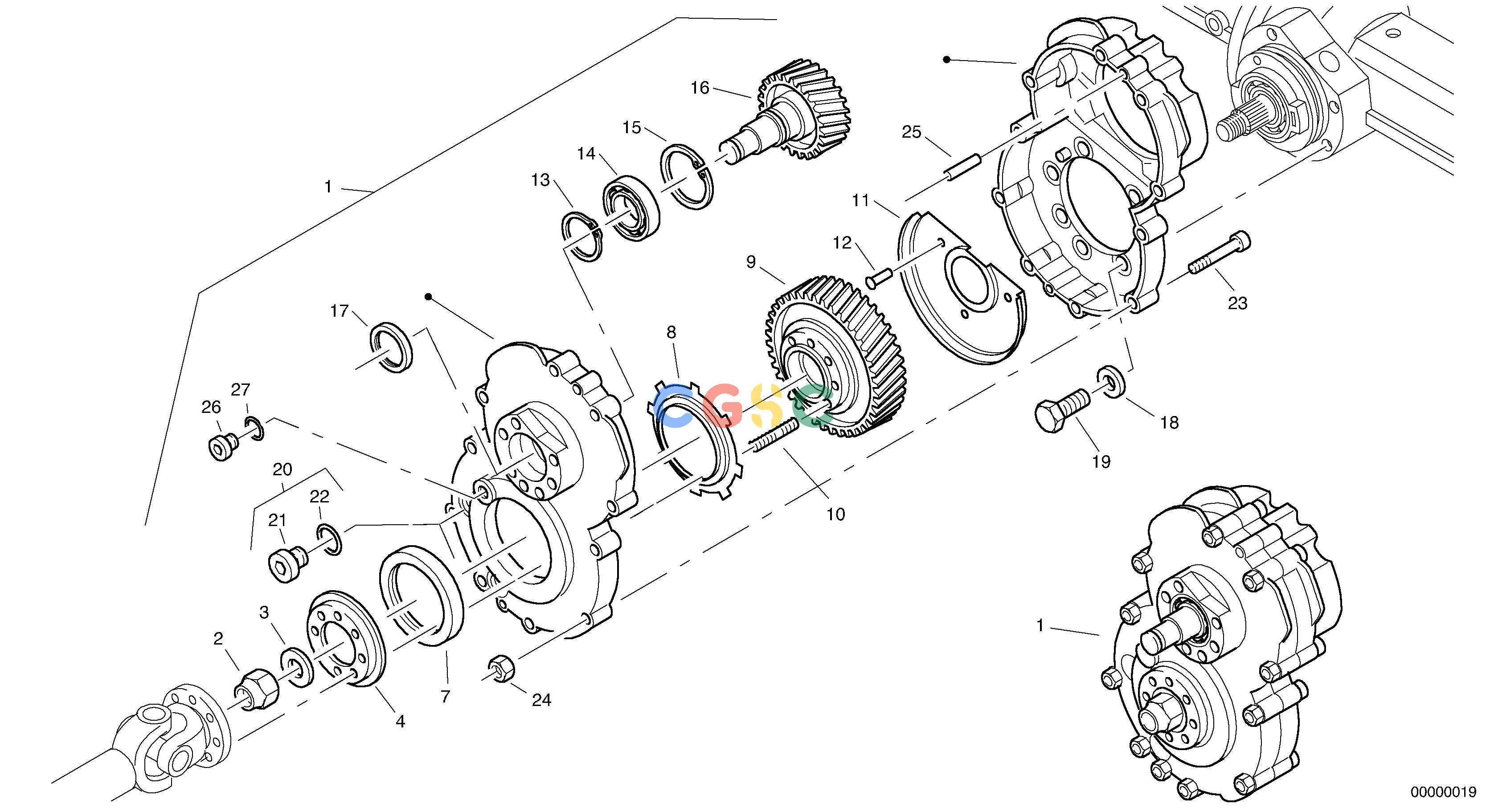

沃尔沃零件查询L32 Gearbox assyTYPE 184 SER NO - 22001840001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
652 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906359
|
[1] |
Transmission
|
|
| 12. |
ZM2286983
|
[3] |
Pin
|
4x15
|
| 13. |
VOE914472
|
[1] |
Snap ring
|
50x2
|
| 14. |
ZM5227171
|
[1] |
Bearing
|
|
| 15. |
VOE914544
|
[1] |
Retaining ring
|
90x3
|
| 16. |
ZM2906327
|
[1] |
Driving wheel
|
|
| 17. |
VOE17493437
|
[1] |
Seal
|
|
| 18. |
ZM5231023
|
[6] |
Washer
|
|
| 19. |
ZM7097049
|
[6] |
Screw
|
M14x45
|
| 20. |
ZM2906325
|
[2] |
Plug
|
M22x1,5
|
| 21. |
ZM7099424
|
[1] |
Lock plug
|
M22x1,5
|
| 2. |
VOE6213086
|
[1] |
Nut
|
BM27x1,5
|
| 22. |
ZM2906364
|
[1] |
O-ring
|
|
| 23. |
ZM2907317
|
[10] |
Screw
|
M12x110
|
| 24. |
ZM7098030
|
[10] |
Nut
|
M12
|
| 25. |
VOE11991215
|
[2] |
Pin
|
8m 6x45
|
| 26. |
ZM7099428
|
[1] |
Screw plug
|
M18x1,5
|
| 27. |
VOE11706795
|
[1] |
O-ring
|
15x2
|
| 3. |
VOE6213085
|
[1] |
Washer
|
|
| 4. |
ZM2906331
|
[1] |
Dust protection
|
|
| 7. |
ZM2906330
|
[1] |
Radial seal
|
|
| 8. |
ZM2906336
|
[1] |
Thrust Washer
|
|
| 9. |
ZM2906329
|
[1] |
Spur wheel
|
|
| 10. |
ZM8097523
|
[8] |
Stud
|
M10x22
|
| 11. |
ZM2906334
|
[1] |
Plate
|
|
