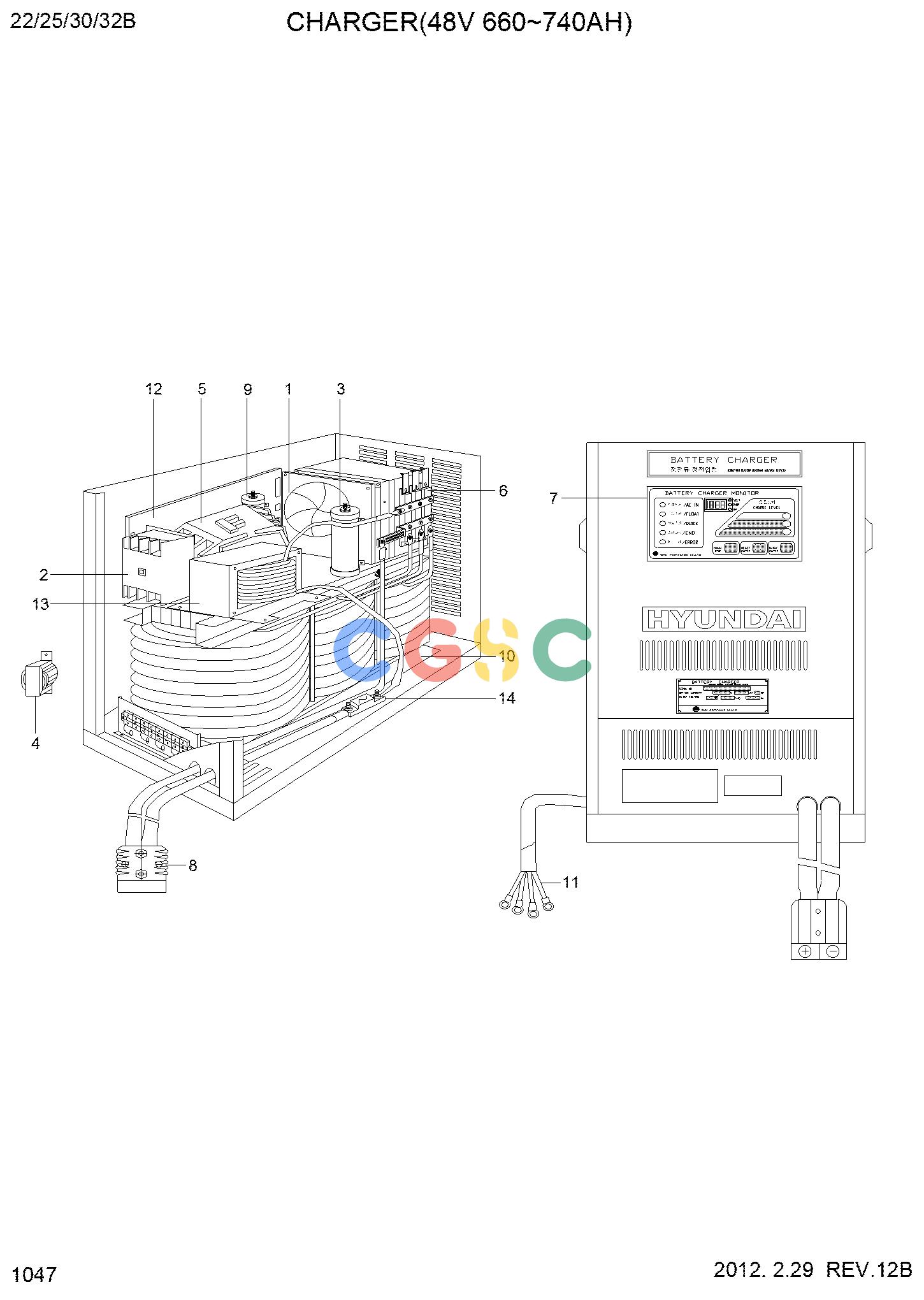

Pos.	Part No	Qty	Parts name	Comments
.	21FM-51031	[1]	CHARGER-3P 220/380V	22B
.	21FM-51031	[1]	CHARGER-3P 220/380V	25B
.	21FM-51031	[1]	CHARGER-3P 220/380V	30B
.	21FM-51031	[1]	CHARGER-3P 220/380V	32B
.	21FM-51111	[1]	CHARGER-3P 410V	22B
.	21FM-51111	[1]	CHARGER-3P 410V	30B
.	21FM-51111	[1]	CHARGER-3P 410V	25B
.	21FM-51111	[1]	CHARGER-3P 410V	32B
.	21FM-51041	[1]	CHARGER-3P 440V	22B
.	21FM-51041	[1]	CHARGER-3P 440V	30B
.	21FM-51041	[1]	CHARGER-3P 440V	25B
.	21FM-51041	[1]	CHARGER-3P 440V	32B
.	21FM-51051	[1]	CHARGER-1P 220V	22B
.	21FM-51051	[1]	CHARGER-1P 220V	25B
.	21FM-51051	[1]	CHARGER-1P 220V	30B
.	21FM-51051	[1]	CHARGER-1P 220V	32B
1.	B11820250	[1]	FAN
2.	21HD-79690	[1]	AC OVER LOAD	3P
3.	XKCS-00002	[1]	RESISTOR AS-RD
4.	21FH-89020	[1]	TRANS-AUX
5.	B52820180	[1]	SWITCH-MAGNET	3P
6.	B52820200	[3]	SCR MODULE	3P
6.	XKCS-00046	[2]	SCR MODULE	1P
6.	XKCS-00047	[1]	SSR	1P
7.	XKCS-00003	[1]	BOARD AS-MONITOR
8.	XKCS-00023	[1]	CABLE AS-DC OUTPUT	WCT 35SQ
9.	21FH-79740	[1]	RESISTOR AS-DR	3P 220/380
9.	21FH-79750	[1]	RESISTOR AS-DR	3P 410/440
10.	XKCS-00048	[1]	MAIN TRANSFORMER-AS	3P 220/380
10.	XKCS-00049	[1]	MAIN TRANSFORMER-AS	1P 220
10.	XKCS-00050	[1]	MAIN TRANSFORMER-AS	3P 410
10.	XKCS-00051	[1]	MAIN TRANSFORMER-AS	3P 440
11.	XKCS-00085	[1]	CABLE AS-AC INPUT
12.	XKCS-00053	[1]	BOARD AS-MAIN	3P
12.	XKCS-00054	[1]	BOARD AS-MAIN	1P
13.	XKCS-00055	[1]	CHOKE FILTER
14.	XKCS-00038	[1]	FUSE
