纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (3.443[02]) - LIFT CYLINDERS - FRONT IMPLEMENT - VERSION (01-02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
435 次

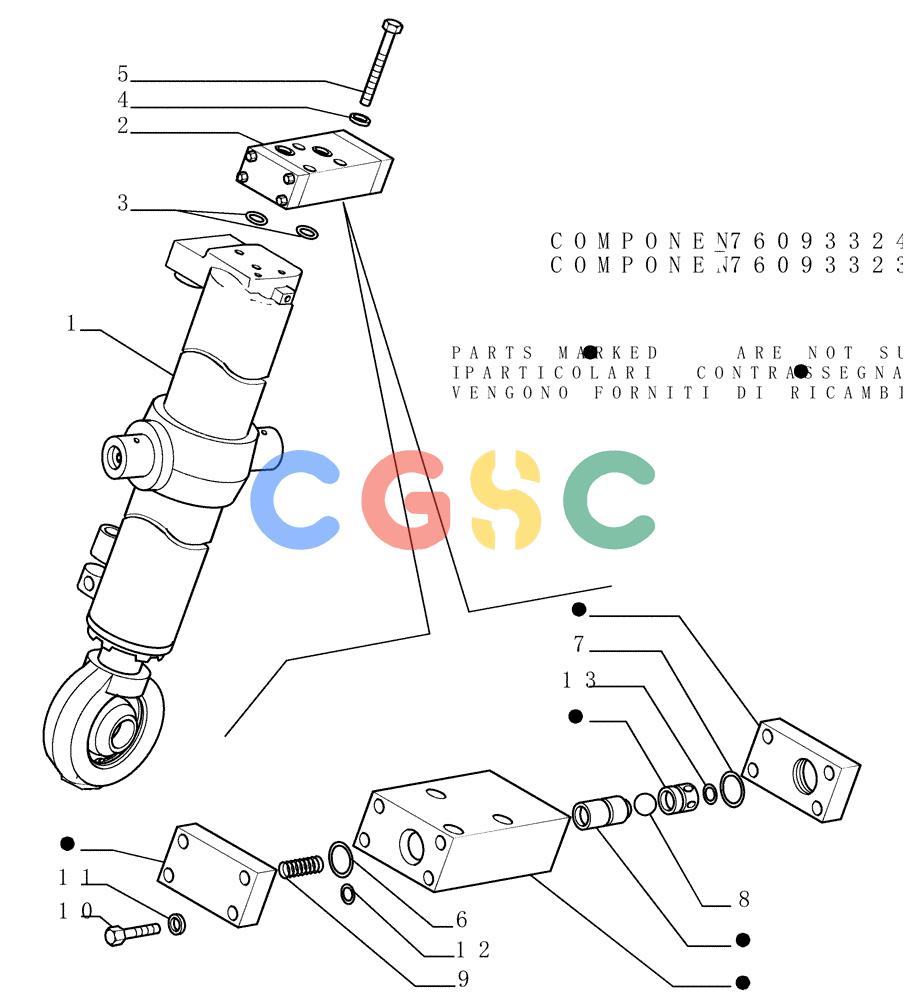

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76075367 | [1] | CYLINDER | LEC- RIGHT ASSY SEE PAG.3 Superseded by part number: 76092069 |
| 1. | 76075368 | [1] | CYLINDER | LEC- LEFT ASSY SEE PAG.3 Superseded by part number: 76093323 |
| 2. | 76076534 | [1] | HYDRAULIC VALVE | LEC- RIGHT- ASSY |
| 2. | 76076535 | [1] | HYDRAULIC VALVE | LEC- LEFT- ASSY |
| 3. | 70924922 | [2] | O-RING,-212, 90 Duro, .859" ID x .139" Thk | LEC(M21.82 ID x 3.53 Thk) |
| 4. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 5. | 11108031 | [3] | BOLT,Hex, M10 x 90mm, Cl 10.9 | LEC Superseded by part number: 86508620 |
| 6. | 70924270 | [1] | O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro | LEC(M34.52 ID x 3.53 Thk) Superseded by part number: 70925934 |
| 7. | 14456981 | [1] | O-RING,0.424" ID x 0.103" Width | TTF |
| 8. | 20063050 | [1] | BALL | LEC21,432 |
| 9. | 79075477 | [1] | SPRING | LEC |
| 10. | 11106631 | [8] | SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd | LEC Superseded by part number: 86624978 |
| 13. | 14463180 | [1] | O-RING,0.921" ID x 0.139" Width | LEC Superseded by part number: 70935121 |
| 12. | 14463381 | [1] | O-RING,26.57mm ID x 3.52" Width | BAS Superseded by part number: 17288781 |
