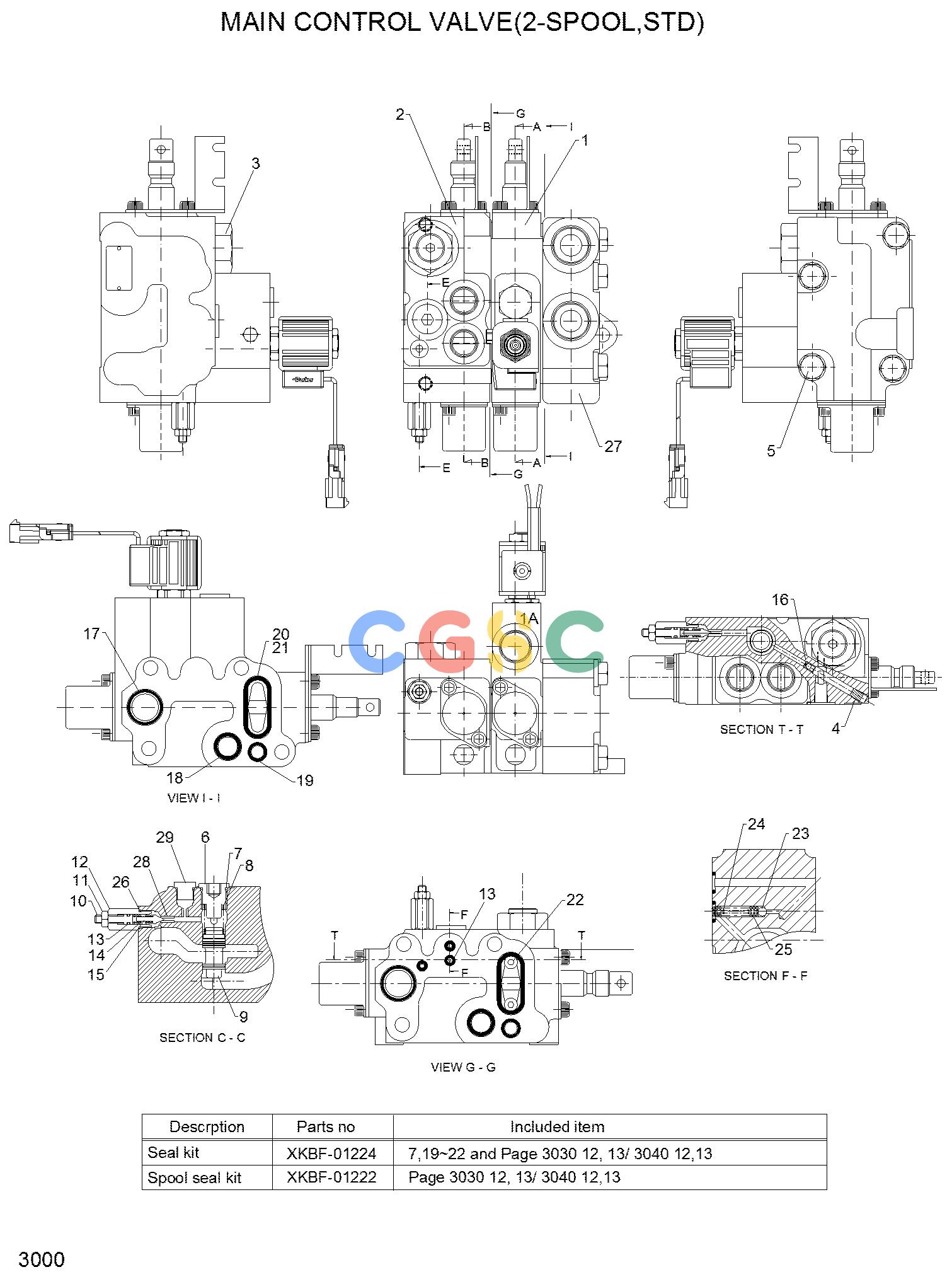

现代零件查询22/25/30/32B-7 MAIN CONTROL VALVE(2-SPOOL,STD)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
773 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31FH-02300
|
[1] |
MAIN CONTROL VALVE-2SP
|
|
| 1. |
XKBF-01156
|
[1] |
BLOCK ASSY-INLET
|
|
| 2. |
XKBF-01164
|
[1] |
BLOCK ASSY-LIFT
|
|
| 3. |
XKBF-01165
|
[1] |
BLOCK ASSY-TILT
|
|
| 4. |
XKBF-01158
|
[1] |
BLOCK ASSY-OUTLET
|
|
| K5. |
XKBF-01053
|
[4] |
LONG BOLT
|
|
| K6. |
XKBF-00566
|
[4] |
NUT
|
|
| K. |
XKBF-01057
|
[1] |
LONG BOLT KIT
|
|
| . |
31FH-02500
|
[1] |
MCV-2SP(MAST OPSS)
|
|
| 11. |
XKBF-01156
|
[1] |
BLOCK ASSY-INLET
|
|
| 12. |
XKBF-01160
|
[1] |
BLOCK ASSY-LIFT
|
|
| 13. |
XKBF-01165
|
[1] |
BLOCK ASSY-TILT
|
|
| 14. |
XKBF-01158
|
[1] |
BLOCK ASSY-OUTLET
|
|
| K15. |
XKBF-01053
|
[4] |
LONG BOLT
|
|
| K16. |
XKBF-00566
|
[4] |
NUT
|
|
| K. |
XKBF-01057
|
[1] |
LONG BOLT KIT
|
|
