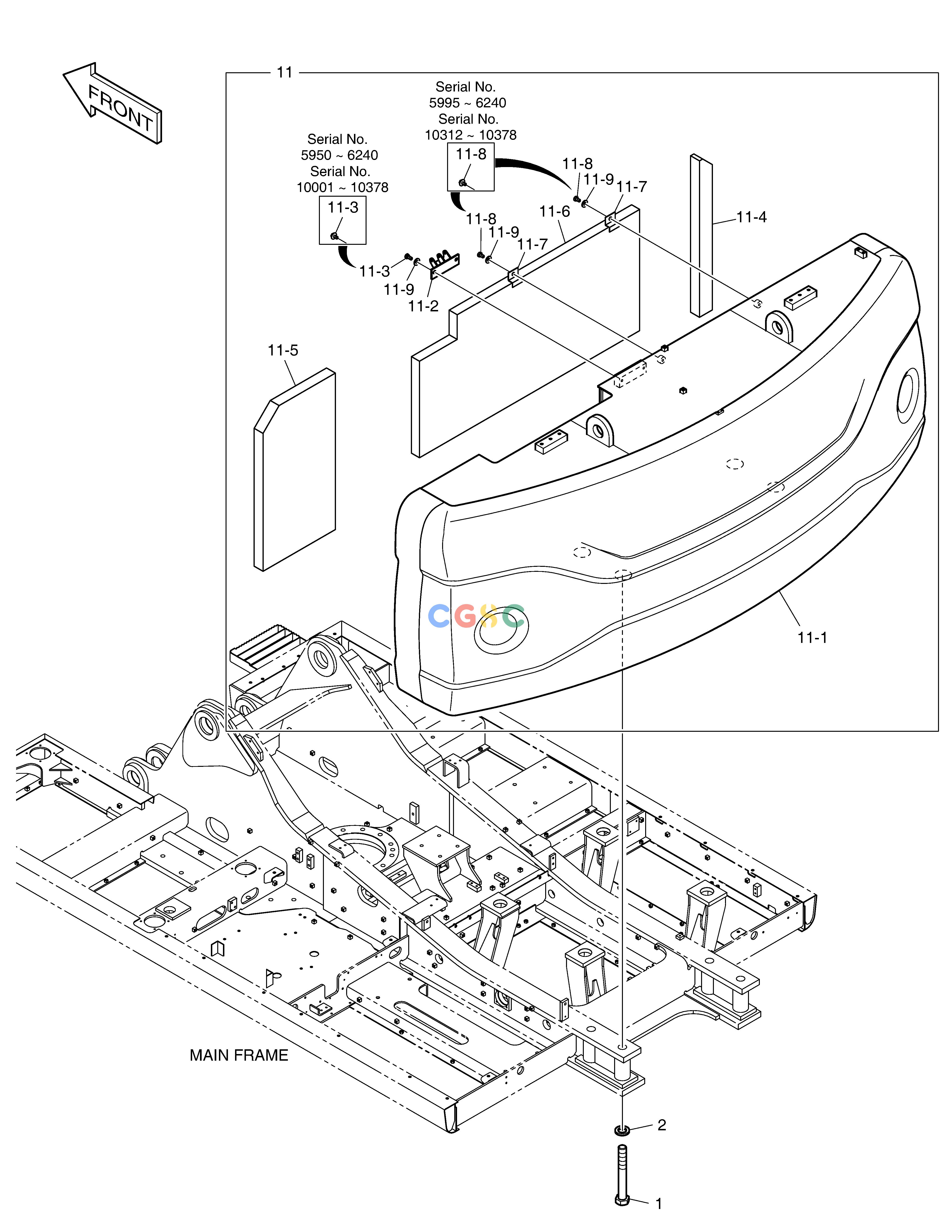

斗山零件查询COUNTER WEIGHT - 6.6TON(INDIA) DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005171B
|
[-] |
COUNTER WEIGHT ASS'Y
|
|
| 1. |
120-00272A
|
[4] |
BOLT
|
|
| 11. |
160702-00602A
|
[1] |
|
160702-00602B
|
| 11. |
160702-00602B
|
[1] |
|
160702-00602C
|
| 11. |
160702-00602C
|
[1] |
|
|
| 11-1. |
160702-00603
|
[1] |
|
|
| 11-2. |
K1002078
|
[1] |
BRACKET
|
|
| 11-3. |
DS0025015
|
[2] |
BOLT
|
|
| 11-3. |
S0515066
|
[2] |
BOLT
|
|
| 11-4. |
K1002730A
|
[1] |
FOAM
|
|
| 11-5. |
180102-00329
|
[1] |
|
|
| 11-6. |
K1009706
|
[1] |
FOAM
|
|
| 11-7. |
621-01572
|
[2] |
PLATE
|
|
| 11-8. |
DS0025022
|
[2] |
BOLT
|
|
| 11-8. |
S0514866
|
[2] |
BOLT
|
|
| 11-9. |
120804-00079
|
[4] |
WASHER
|
|
| 2. |
114-00055
|
[4] |
WASHER;HARDEN
|
|
