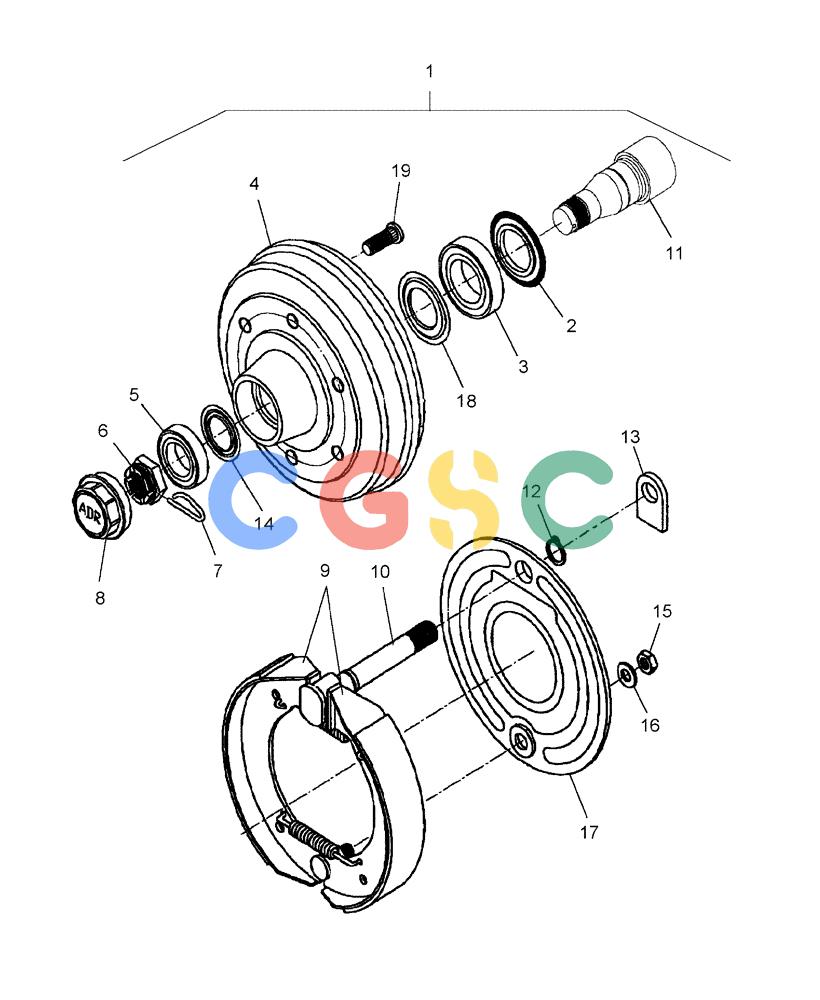

凯斯零件查询(RBX452) - CASE IH ROUND BALER (11/02-7/05) (11.27) - HUB, HYDRAULIC BRAKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87016347
|
[2] |
HUB ASSY.
|
PA
Brake
|
| 2. |
87022911
|
[1] |
OIL SEAL
|
PA
Oil
|
| 3. |
26799990
|
[1] |
TAPERED BEARING,55mm ID x 120mm OD x 45.5mm W
|
TTF
|
| 4. |
87022910
|
[1] |
HOUSING
|
PA
|
| 5. |
84021877
|
[1] |
TAPERED BEARING,50mm ID x 80mm OD x 20mm W
|
ZED
Superseded by part number: 87281696
|
| 6. |
87022923
|
[1] |
SLOTTED NUT
|
PA
Slotted, M39 x 1.5
|
| 7. |
300416
|
[1] |
COTTER PIN,M4 x 50
|
ZED
Superseded by part number: 86523957
|
| 8. |
87022925
|
[1] |
CAP
|
PA
|
| 9. |
87022909
|
[2] |
BRAKE PAD
|
PA
|
| 10. |
87022908
|
[1] |
BRAKE CAM
|
PA
|
| 11. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Shaft, Axle
|
| 12. |
300629
|
[1] |
SNAP RING,M28, Ext
|
ZED
|
| 14. |
87036687
|
[1] |
SHIELD
|
PA
Grease, 80 OD
|
| 15. |
825-1416
|
[1] |
NUT,M16, Cl 8
|
CAS
Superseded by part number: 100020
|
| 16. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 18. |
87036688
|
[1] |
SHIELD
|
PA
Grease, 100 OD
|
| 19. |
87018139
|
[8] |
BOLT
|
PA
Wheel, M18 x 1.5
|
