神钢零件查询(F4GE9484D J601) - ENGINE - 5801370290 - 84301930 (1/07-12/07) (10.414.03) - FAN DRIVE (2854977-2855880-2856175) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
980 次

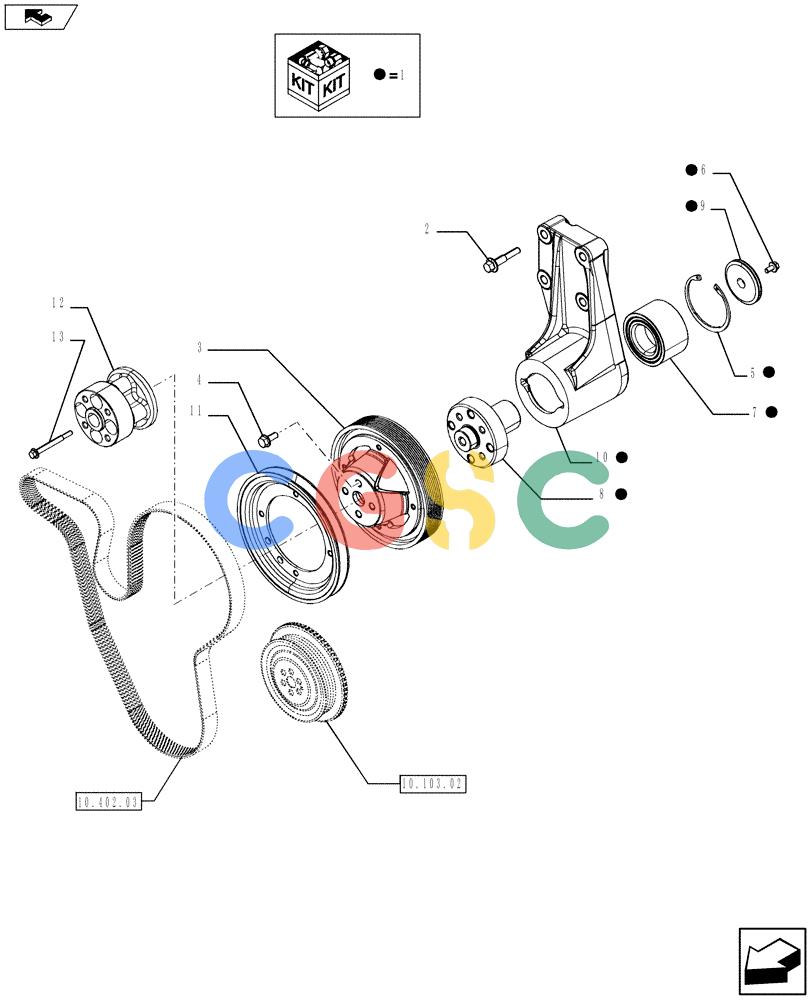

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855881 | [1] | FAN HOUSING | TORAssy, Contains Ref. 5 - 10 Superseded by part number: 504202791 |
| 2. | 4895323 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 40mm | LEC |
| 3. | 2853233 | [1] | PULLEY,178mm OD | TOR Superseded by part number: 500389850 |
| 4. | 2852234 | [4] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 5. | 2852171 | [1] | SNAP RING | TOR Superseded by part number: 32324 |
| 6. | 2854424 | [1] | SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 7. | 4892732 | [1] | BALL BEARING,34mm ID x 64mm OD x 37mm W | TOR |
| 8. | 4892426 | [1] | HUB | TOR |
| 9. | 4890732 | [1] | RETAINER,11.50mm ID x 52mm OD x 7mm | TOR |
| 10. | 2855882 | [1] | BRACKET | TOR |
| 12. | 2856176 | [1] | SPACER | TOR Superseded by part number: |
| 13. | 4897934 | [4] | SCREW,Hex, Flg Hd, M10 x 100 | TOR |
