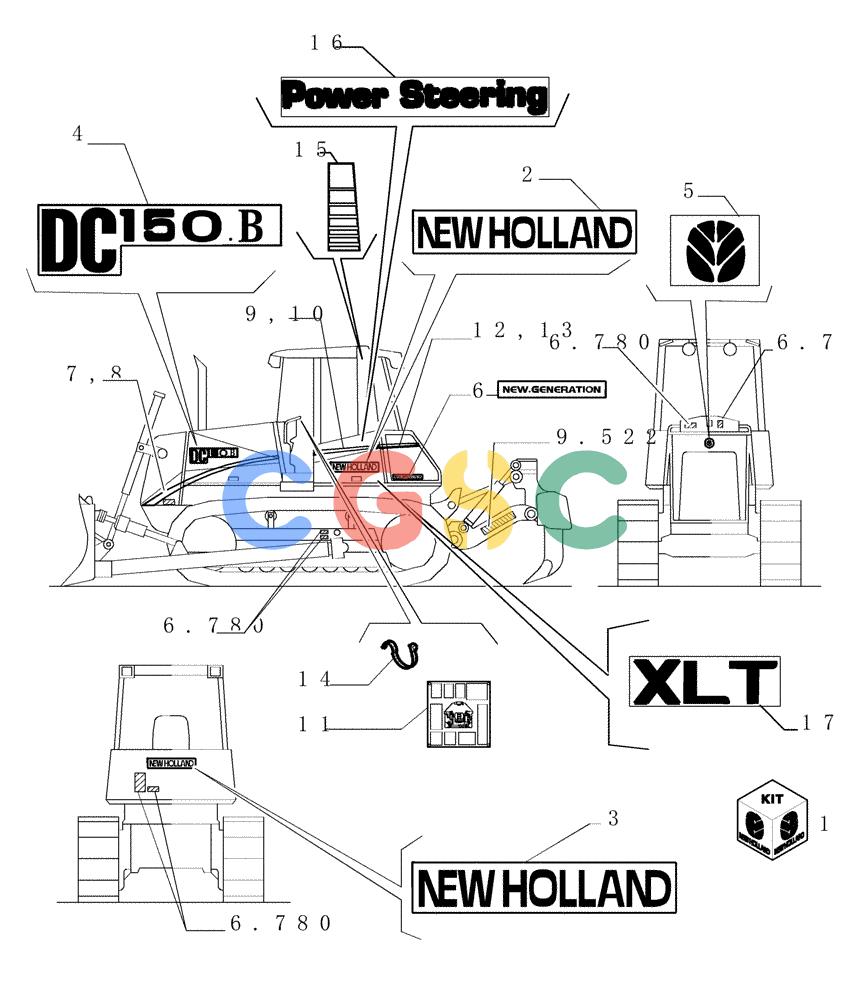

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (6.782[02]) - TRADE MARKS - XLT - VERSION (02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
669 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093461 | [1] | - KIT | |
| 2. | 76069710 | [2] | MAKERS BADGE | TOR- NEW HOLLAND |
| 3. | 76069712 | [1] | MAKERS BADGE | TOR |
| 4. | 76093417 | [1] | MAKERS BADGE | LEC- DC150 Model |
| 5. | 76069768 | [2] | DEALERSHIP IDENTITY LOGO | TOR |
| 6. | 76069739 | [1] | MAKERS BADGE | TOR |
| 7. | 76073082 | [1] | DECAL | TOR- SIDE LEFT |
| 8. | 76073083 | [1] | DECAL | TOR- SIDE RIGHT |
| 9. | 76069887 | [1] | DECAL | TOR- LH |
| 10. | 76069888 | [1] | DECAL | TOR- RH |
| 11. | 76069779 | [1] | IDENTITY PLATE | LEC |
| 12. | 76069889 | [1] | DECAL | TOR- LH |
| 13. | 76069890 | [1] | DECAL | TOR- RH |
| 14. | 79013422 | [1] | CABLE TIE,145mm L | LEC |
| 15. | 76073320 | [1] | DECAL | TOR- LH |
| 15. | 76073321 | [1] | DECAL | TOR- RH |
| 16. | 76073319 | [2] | DECAL | TOR |
| 17. | 76073339 | [2] | DECAL | LEC- XLT |
