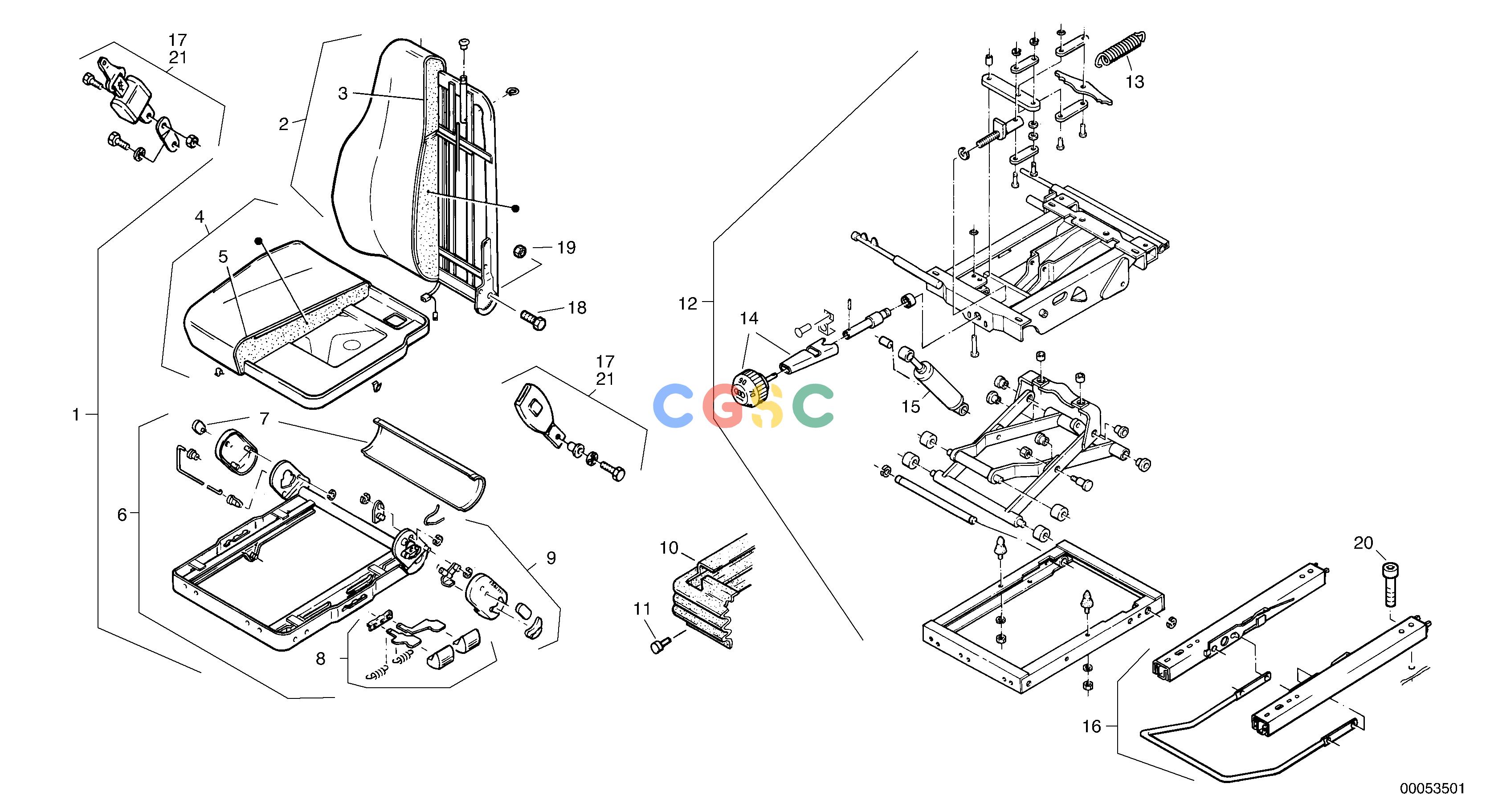

沃尔沃零件查询L32 Driver's seatTYPE 184 SER NO - 22001840001-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811579
|
[1] |
Driver's seat, cpl.
|
-1840031
|
| 8. |
ZM2906581
|
[1] |
Lever Kit
|
|
| 9. |
ZM2906582
|
[1] |
Mounting Kit
|
|
| 10. |
ZM2901446
|
[1] |
Bellows
|
|
| 11. |
VOE1699294
|
[1] |
Attachment kit
|
|
| 12. |
ZM2906584
|
[1] |
Seat spring suspension
|
|
| 13. |
ZM2903122
|
[2] |
Wire spring
|
|
| 14. |
ZM2906585
|
[1] |
Adj Device
|
|
| 15. |
VOE11706086
|
[1] |
Shock absorber
|
|
| 16. |
ZM2902581
|
[1] |
Guide, cpl.
|
|
| 17. |
ZM2901448
|
[1] |
Safety belt
|
|
| 1. |
ZM2813660
|
[1] |
Driver seat
|
1840032-
|
| 18. |
ZM7095370
|
[1] |
Screw
|
M8x16, 1840032-
|
| 19. |
ZM7098010
|
[1] |
Nut
|
M8, 1840032-
|
| 20. |
VOE11305407
|
[4] |
Allen Hd Screw
|
M8x20
|
| 21. |
ZM2815605
|
[1] |
Seat Belt
|
USA
|
| 1. |
ZM2813660
|
[1] |
Driver seat
|
USA
|
| 2. |
ZM2906576
|
[1] |
Backrest
|
|
| 3. |
ZM2906577
|
[1] |
Seat Cover
|
|
| 4. |
ZM2906578
|
[1] |
Seat part, cpl.
|
|
| 5. |
VOE11706081
|
[1] |
Upholstery
|
|
| 6. |
ZM2901427
|
[1] |
Frame
|
|
| 7. |
ZM2906580
|
[1] |
Cap
|
|
