神钢零件查询(F4GE9484D J601) - ENGINE - 5801370290 - 84301930.. (1/07-12/07) (0432.031) - REAR C.CASE COVER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
674 次

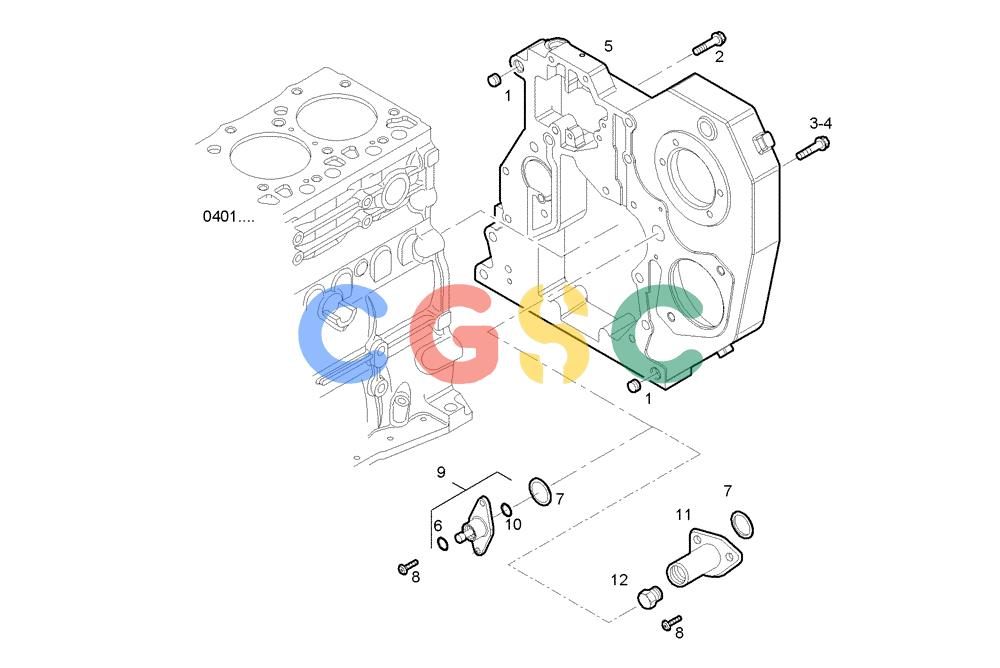

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TORDOWEL PIN |
| 2. | 4899091 | [4] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BASHEXAGON BOLT |
| 3. | 4899093 | [5] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BASHEXAGON BOLT Superseded by part number: 87778358 |
| 4. | 4899073 | [2] | SCREW,Hex Flg, M12 x 1.75 x 30 | TORHEXAGON BOLT |
| 7. | 17278781 | [1] | O-RING | TORO-RING |
| 8. | 4895355 | [2] | SCREW,M5 x 0.8 x 17mm, Cl 8.8 | TORSHEAR SCREW, M5X17 MM |
