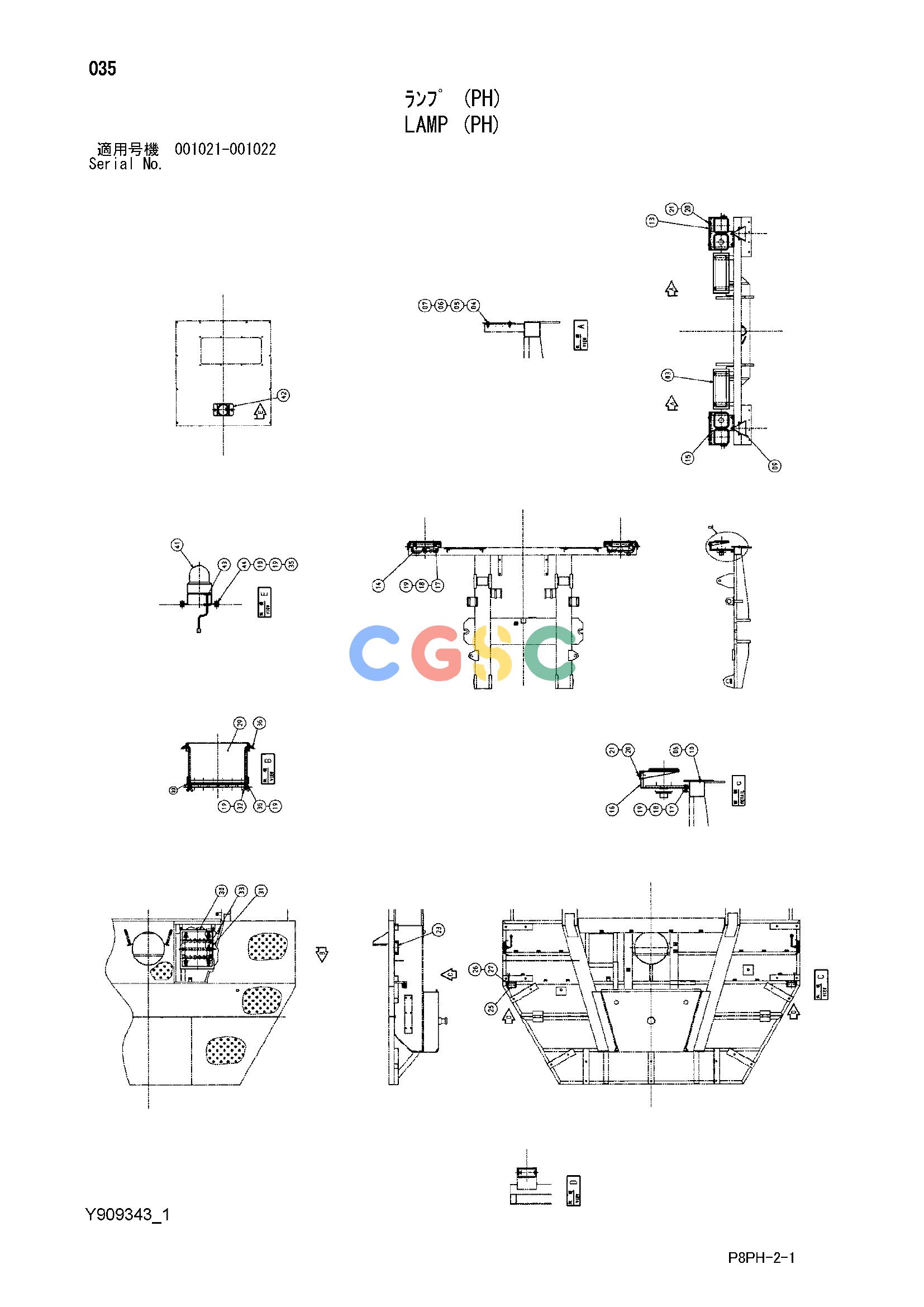

日立零件查询（AR2000）LAMP (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 03. | Y410427 | [1] | REFLECTOR | |
| 04. | M430625 | [8] | SCREW | |
| 05. | A590906 | [8] | WASHER;SPRING | |
| 06. | A590106 | [20] | WASHER;PLANE | |
| 07. | M500605 | [8] | NUT | |
| 09. | Y410428 | [2] | REFLECTOR | |
| 10. | M430610 | [4] | SCREW | |
| 13. | Y410429 | [1] | LAMP;TAIL (R) | |
| 14. | Y801889 | [1] | BRACKET (R) | |
| 15. | Y410430 | [1] | LAMP;TAIL (L) | |
| 16. | Y801890 | [1] | BRACKET (L) | |
| 17. | J901025 | [4] | BOLT | |
| 18. | A590910 | [6] | WASHER;SPRING | |
| 19. | A590110 | [10] | WASHER;PLANE | |
| 20. | J900820 | [4] | BOLT | |
| 21. | A590108 | [4] | WASHER;PLANE | |
| 23. | Y403964 | [2] | LAMP;SIDE | |
| 25. | Y410426 | [2] | LAMP;CLEARANCE | |
| 26. | A590104 | [4] | WASHER;PLANE | |
| 27. | M500403 | [4] | NUT | |
| 29. | 4187027 | [2] | BATTERY | |
| 30. | Y410285 | [1] | RUBBER | |
| 31. | 4257035 | [2] | SUPPORT | |
| 32. | M570010 | [2] | NUT;WING | |
| 33. | Y410498 | [1] | STAY | |
| 35. | J950010 | [6] | NUT | |
| 36. | 4359331 | [2] | BOLT;HOOK | |
| 41. | 4310604 | [1] | PATLITE | |
| 42. | Y407719 | [1] | BRACKET | |
| 43. | 94-2816 | [2] | BUSHING;RUBBER | |
| 44. | J901020 | [2] | BOLT | |
