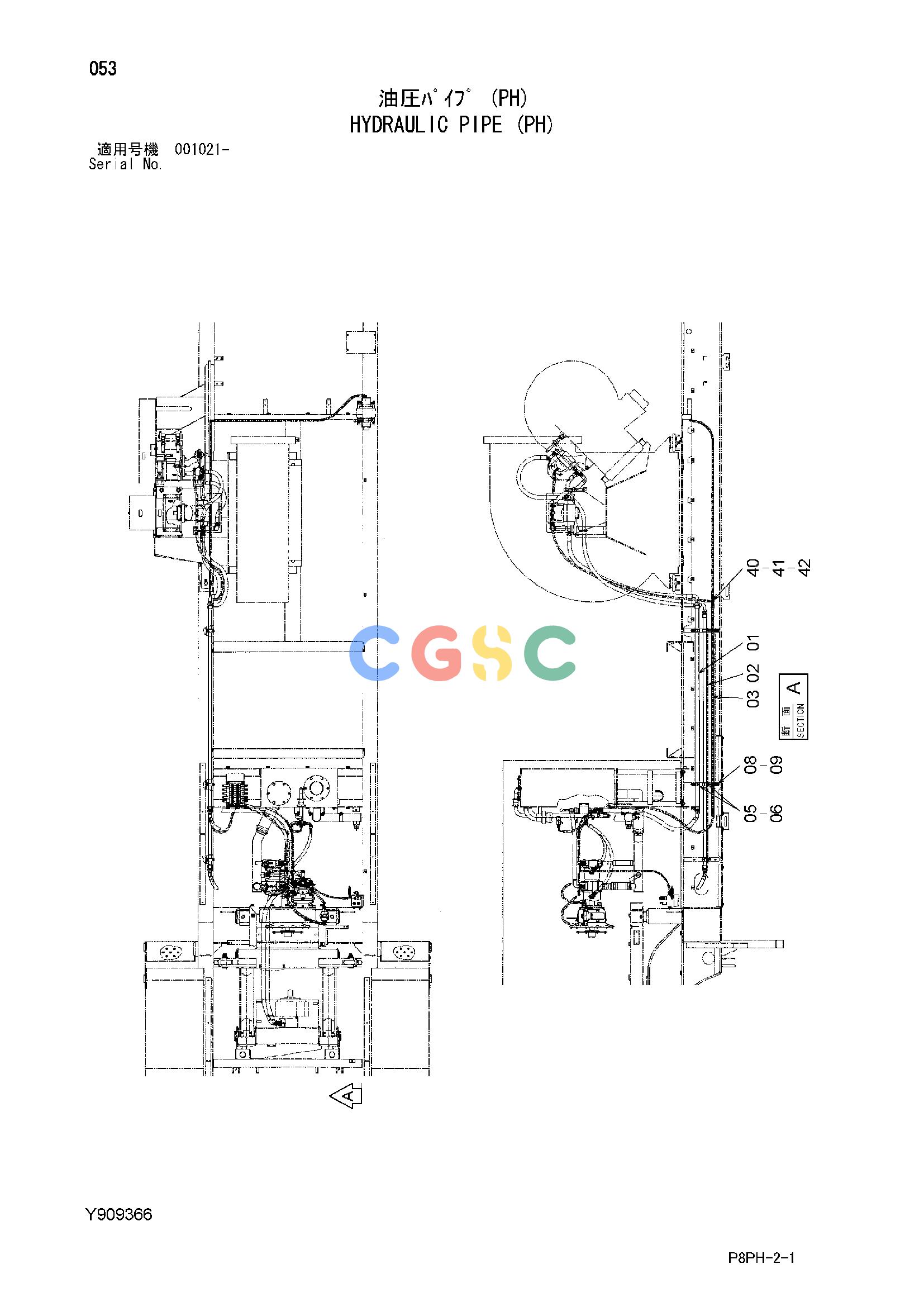

日立零件查询（AR2000）HYDRAULIC PIPE (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
700 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y971352 | [1] | PIPE;DELIVERY | |
| 01. | Y971517 | [1] | PIPE;DELIVERY | |
| 02. | Y971353 | [1] | PIPE;RETURN | |
| 02. | Y971518 | [1] | PIPE;RETURN | |
| 03. | Y971361 | [1] | PIPE;DRAIN | |
| 03. | Y971519 | [1] | PIPE;DRAIN | |
| 05. | 4053598 | [7] | CLAMP;PIPE | |
| 05. | 4053598 | [5] | CLAMP;PIPE | |
| 06. | J271265 | [7] | BOLT;SEMS | |
| 06A. | J901265 | [1] | BOLT | |
| 06B. | J222012 | [1] | WASHER | |
| 06. | J271265 | [5] | BOLT;SEMS | |
| 06A. | J901265 | [1] | BOLT | |
| 06B. | J222012 | [1] | WASHER | |
| 08. | 4053594 | [3] | CLAMP;PIPE | |
| 08. | 4053594 | [2] | CLAMP;PIPE | |
| 09. | J271045 | [3] | BOLT;SEMS | |
| 09A. | J901045 | [1] | BOLT | |
| 09B. | J222010 | [1] | WASHER | |
| 09. | J271045 | [7] | BOLT;SEMS | |
| 09A. | J901045 | [1] | BOLT | |
| 09B. | J222010 | [1] | WASHER | |
| 12. | Y971351 | [8] | PIPE | |
| 13. | 4231653 | [4] | ADAPTER;S | |
| 15. | 4001156 | [18] | CLAMP;PIPE | |
| 16. | J271030 | [18] | BOLT;SEMS | |
| 16A. | J901030 | [1] | BOLT | |
| 16B. | J222010 | [1] | WASHER | |
| 27. | 4055312 | [100] | CLIP;BAND | |
| 28. | 4121859 | [100] | CLIP;BAND | |
| 28. | 4121859 | [50] | CLIP;BAND | |
| 30. | Y971576 | [1] | PIPE | |
| 31. | Y971580 | [1] | PIPE | |
| 32. | 4053593 | [5] | CLAMP;PIPE | |
| 40. | 4426339 | [1] | UNION;M | |
| 41. | Y414956 | [1] | REDUCER;M | |
| 42. | Y414957 | [1] | NUT | |
