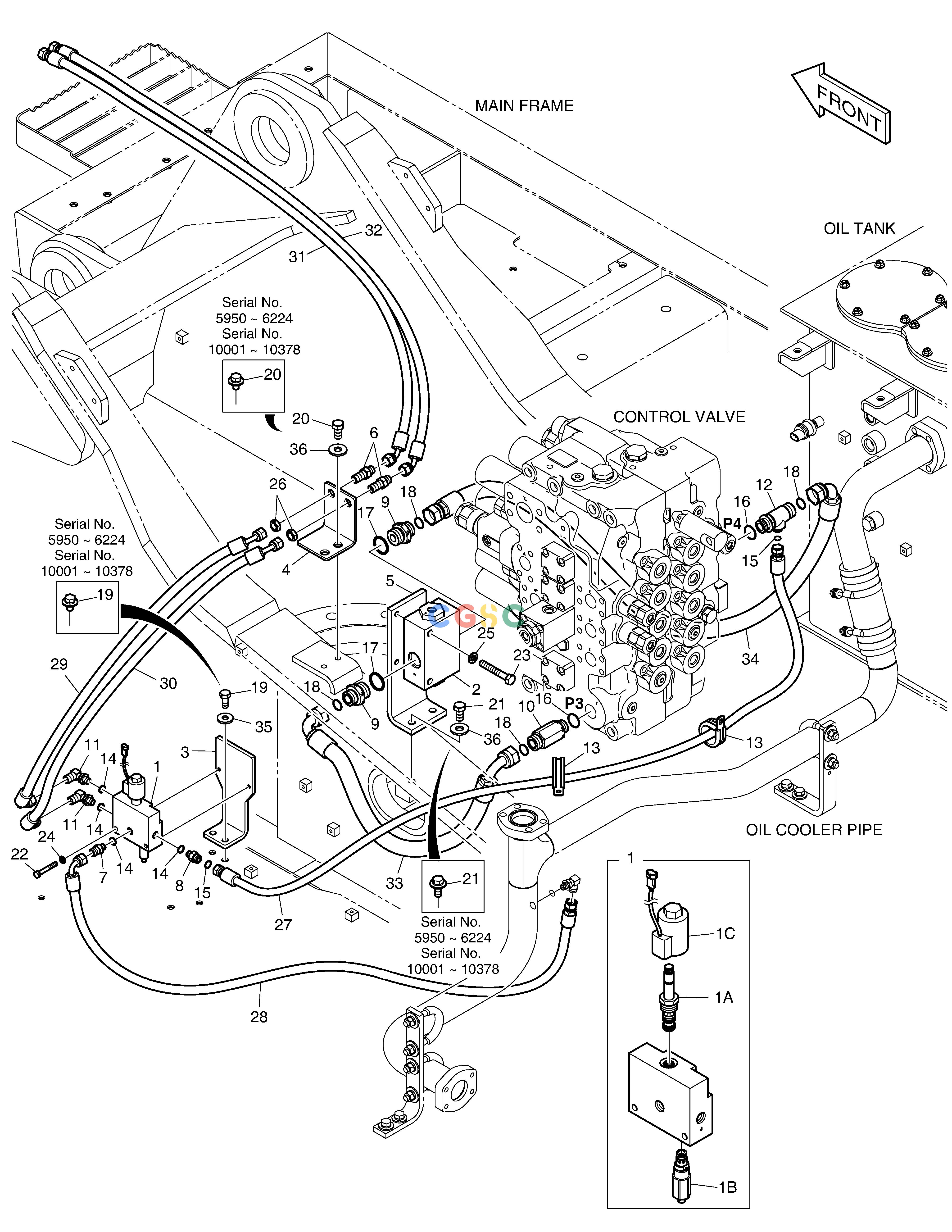

斗山零件查询MAIN PIPING - QUICK CLAMP & TWO PUMP DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
267 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-00821
|
[-] |
|
|
| 1. |
426-00287B
|
[1] |
VALVE,QUICK-FIT
|
|
| 10. |
2181-2627D11
|
[1] |
ADAPTER
|
DS2404011
|
| 10. |
DS2404011
|
[1] |
|
|
| 11. |
2181-1702D3
|
[2] |
ELBOW
|
|
| 12. |
DS2412030
|
[1] |
|
|
| 13. |
124-00208D7
|
[2] |
CLIP
|
|
| 14. |
S8000111
|
[4] |
O-RING
|
|
| 15. |
S8030061
|
[2] |
O-RING
|
|
| 16. |
S8000231
|
[2] |
O-RING
|
|
| 17. |
S8000291
|
[2] |
O-RING
|
|
| 18. |
S8030121
|
[4] |
O-RING
|
|
| 19. |
DS0025017
|
[2] |
BOLT
|
|
| 19. |
S0512066
|
[2] |
. BOLT
|
|
| 1A. |
410135-00109
|
[1] |
. VALVE,SOLENOID
|
|
| 1B. |
410126-00019
|
[1] |
. VALVE,REDUCING
|
|
| 1C. |
300715-00127
|
[1] |
|
|
| 2. |
410137-00082
|
[1] |
|
|
| 20. |
DS0025019
|
[2] |
BOLT
|
|
| 20. |
S0515066
|
[2] |
BOLT
|
|
| 21. |
DS0025020
|
[2] |
BOLT
|
|
| 21. |
S0515366
|
[2] |
BOLT
|
|
| 22. |
S0556466
|
[2] |
BOLT
|
|
| 23. |
S0561366
|
[2] |
BOLT
|
|
| 24. |
S5102503
|
[2] |
. WASHER
|
|
| 25. |
S5102703
|
[2] |
WASHER
|
|
| 26. |
121-00010D1
|
[2] |
NUT
|
|
| 27. |
DS2011804
|
[1] |
|
|
| 28. |
DS2093668
|
[1] |
HOSE
|
|
| 29. |
DS2058318
|
[1] |
|
|
| 3. |
195-03123E
|
[1] |
BRACKET
|
|
| 30. |
DS2058319
|
[1] |
|
|
| 31. |
DS2054350
|
[1] |
HOSE
|
|
| 32. |
DS2054351
|
[1] |
HOSE
|
|
| 33. |
DS2023092
|
[1] |
|
|
| 34. |
DS2013649
|
[1] |
HOSE
|
|
| 35. |
120804-00078
|
[2] |
WASHER
|
|
| 36. |
120804-00079
|
[4] |
WASHER
|
|
| 4. |
110406-00130
|
[1] |
PLATE
|
|
| 5. |
K1010007
|
[1] |
BRACKET
|
|
| 6. |
181-00078D1
|
[2] |
ADAPTER
|
|
| 7. |
2181-1126D85
|
[1] |
ADAPTER
|
|
| 8. |
2181-4133D40
|
[1] |
ADAPTER
|
|
| 9. |
2181-2627D15
|
[2] |
ADAPTER
|
DS2232003
|
| 9. |
DS2232003
|
[2] |
ADAPTER
|
|
