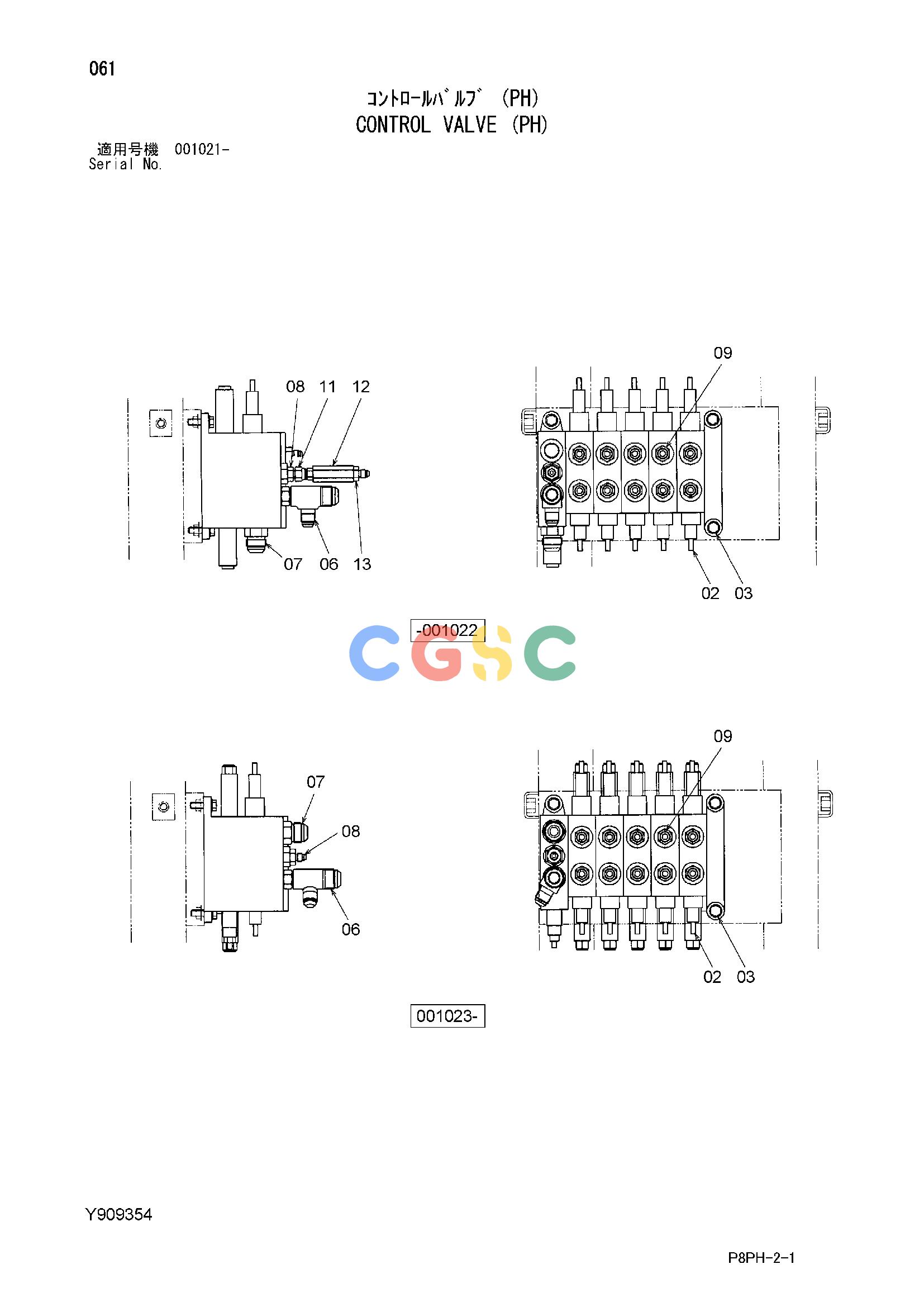

日立零件查询（AR2000）CONTROL VALVE (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
687 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | Y411214 | [1] | VALVE;CONTROL | |
| 03. | J260830 | [3] | BOLT;SEMS | |
| 03A. | J900830 | [1] | BOLT | |
| 03B. | A590108 | [1] | WASHER;PLANE | |
| 06. | 4221222 | [1] | TEE;S | |
| 06A. | 4509180 | [1] | O-RING | |
| 07. | 4288001 | [1] | ADAPTER;S | |
| 07A. | 4506418 | [1] | O-RING | |
| 08. | A852122 | [1] | ADAPTER;S | |
| 08A. | 957366 | [1] | O-RING | |
| 09. | A852133 | [10] | ADAPTER;S | |
| 09A. | 4509180 | [1] | O-RING | |
| 11. | Y411671 | [1] | ADAPTER;S | |
| 12. | Y411168 | [1] | VALVE;CHECK | |
| 13. | 4241381 | [1] | ADAPTER;S | |
| 13A. | 4510185 | [1] | O-RING | |
