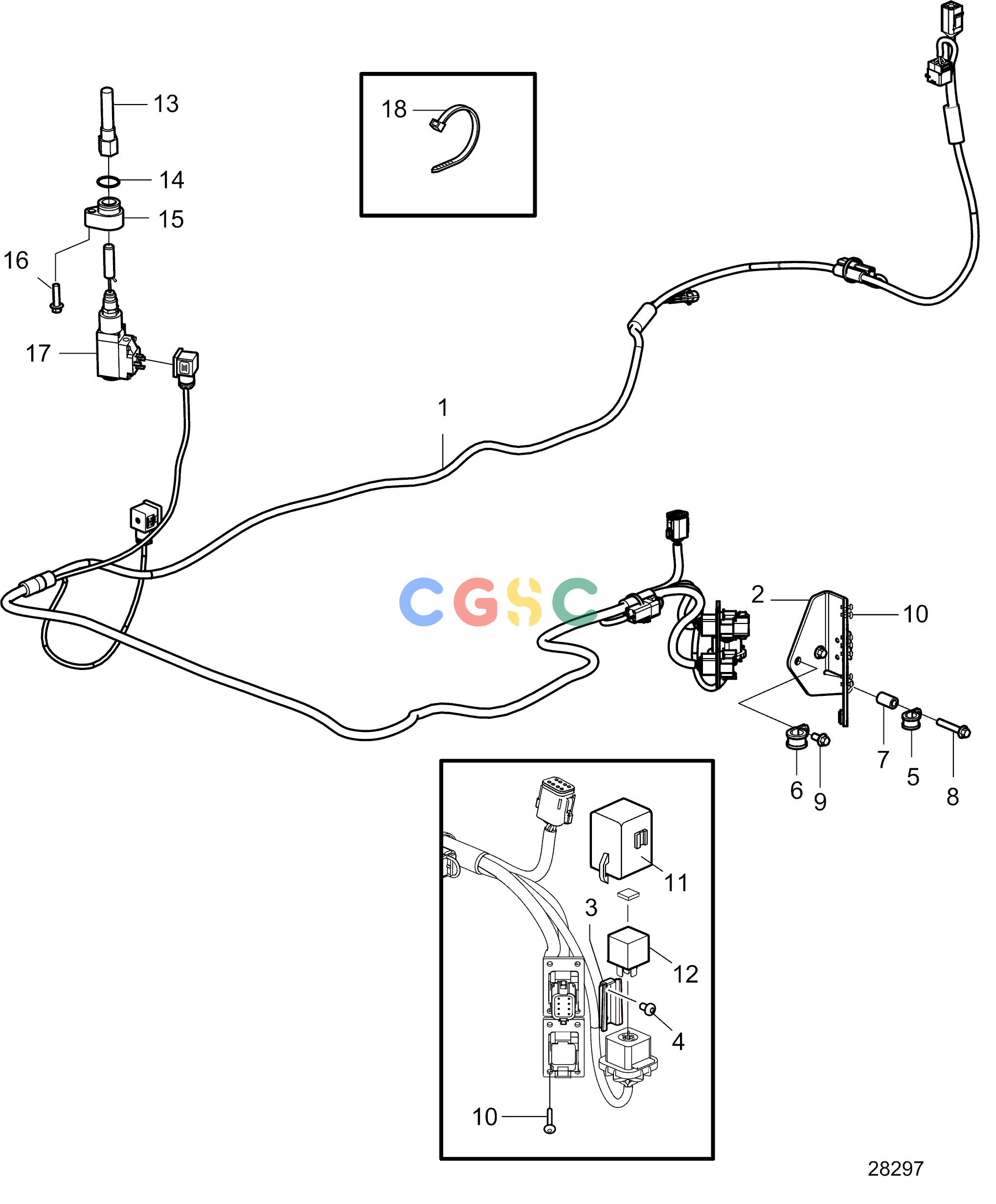

沃尔沃零件查询D16C-D MHElectrical SystemWiring Harness Shut Down SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22576579
|
[1] |
Wiring harness
|
|
| 2. |
22571052
|
[1] |
Bracket
|
|
| 3. |
21492847
|
[1] |
Relay bracket
|
|
| 4. |
972408
|
[2] |
Six point socket scr
|
|
| 5. |
949746
|
[4] |
Clamp
|
|
| 6. |
942810
|
[1] |
Clamp
|
|
| 7. |
852660
|
[1] |
Spacer sleeve
|
|
| 8. |
994385
|
[1] |
Flange screw
|
|
| 9. |
984733
|
[1] |
Flange screw
|
|
| 10. |
969514
|
[8] |
Six point socket scr
|
|
| 11. |
21494263
|
[1] |
Relay box
|
|
| 12. |
3171420
|
[1] |
Relay
|
|
| 13. |
873715
|
[1] |
Sleeve
|
|
| 14. |
949657
|
[1] |
O-ring
|
|
| 15. |
3819529
|
[1] |
Adapter
|
|
| 16. |
984736
|
[1] |
Flange screw
|
|
| 17. |
21294565
|
[1] |
Thermo monitor
|
|
| 18. |
948211
|
[50] |
Cable tie
|
|
