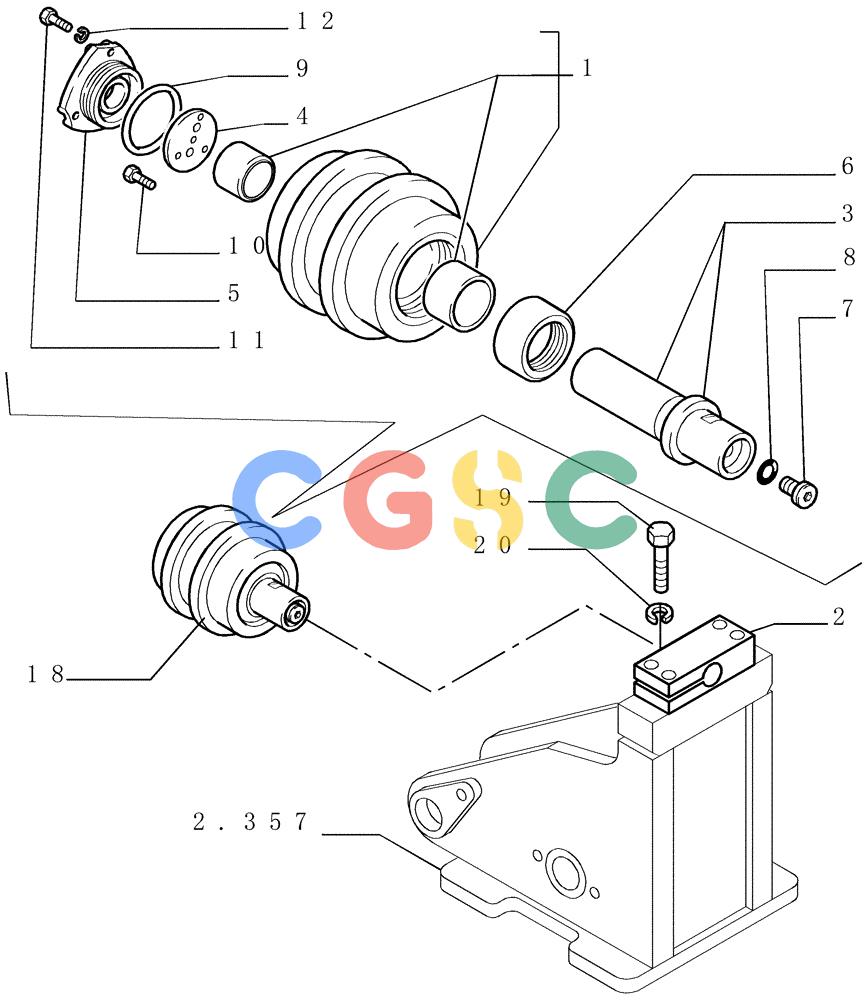

纽荷兰零件查询(DC150.B) - CRAWLER DOZER TIER 2 (3/03-) (2.347[01]) - TRACK CARRIER ROLLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76029473 | [1] | TRACK ROLLER | LEC |
| 2. | 76089213 | [1] | SUPPORT | LEC Superseded by part number: 76041343 |
| 3. | 76046043 | [1] | SHAFT | LEC |
| 4. | 592566 | [1] | THRUST PLATE | LEC |
| 5. | 587004 | [1] | COVER | LEC |
| 6. | 79103239 | [1] | GASKET | LEC Superseded by part number: 79007451 |
| 7. | 79019318 | [1] | PLUG | LEC |
| 8. | 14457080 | [1] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | LEC Superseded by part number: 86637641 |
| 9. | 14472181 | [1] | O-RING,-338, Cl 7, 3.100" ID x .210" Thk | LEC5,33X78,74 |
| 10. | 14233430 | [2] | SCREW,M10 x 1.25 x 25mm | LEC10X1,25X25 Superseded by part number: 16323434 |
| 11. | 11306934 | [3] | BOLT,Hex, M10 x 1.25 x 30, 10.9, Full Thd | LEC |
| 12. | 12626231 | [3] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 18. | 76089214 | [4] | TRACK ROLLER | LEC- ASSY |
| 19. | 15981631 | [16] | BOLT,Hex, M16 x 1.5 x 100mm, Cl 10.9 | LEC Superseded by part number: 15238231 |
| 20. | 76036375 | [16] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | LEC |
