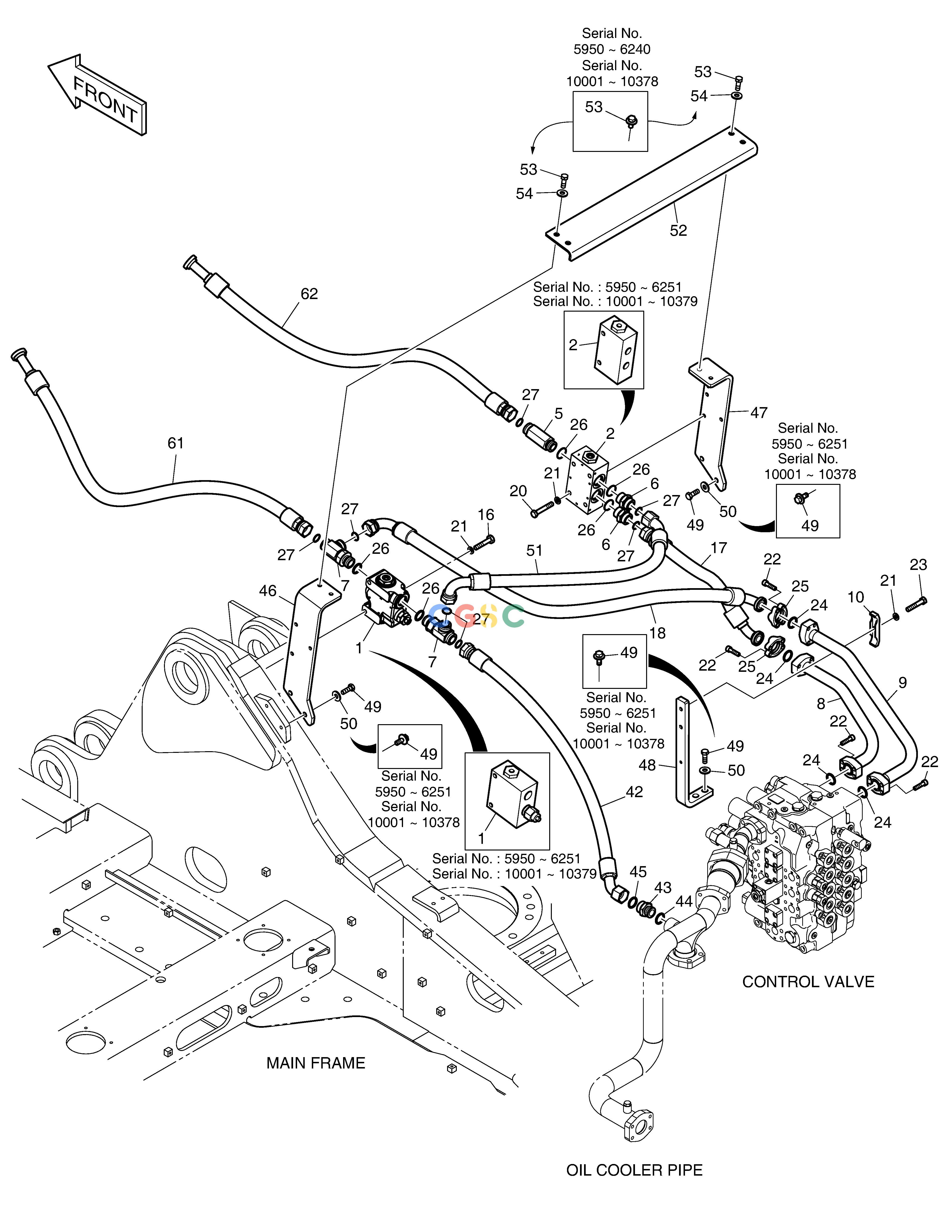

斗山零件查询MAIN PIPING - TWO WAY DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
234 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-06920
|
[-] |
|
|
| 1. |
410132-00007
|
[1] |
|
410132-00025
|
| 1. |
410132-00025
|
[1] |
VALVE,SELECTOR
|
|
| 10. |
2124-1025D5
|
[1] |
CLAMP;PIPE
|
|
| 16. |
S0561466
|
[2] |
BOLT
|
|
| 17. |
DS2017042
|
[1] |
HOSE
|
|
| 18. |
DS2026123
|
[1] |
HOSE
|
|
| 2. |
410132-00008
|
[1] |
|
|
| 2. |
410111-00130A
|
[1] |
VALVE
|
|
| 20. |
S0561266
|
[2] |
BOLT
|
|
| 20. |
S0561366
|
[2] |
BOLT
|
|
| 21. |
S5102703
|
[5] |
WASHER
|
|
| 22. |
S2212466
|
[16] |
BOLT
|
|
| 23. |
S0561066
|
[1] |
BOLT
|
|
| 24. |
2180-1026D19
|
[2] |
O-RING
|
DS2856003
|
| 24. |
DS2856003
|
[2] |
O-RING
|
|
| 25. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 26. |
S8000291
|
[5] |
O-RING
|
|
| 27. |
S8030161
|
[7] |
O-RING
|
|
| 42. |
DS2012249
|
[1] |
HOSE
|
|
| 43. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 44. |
S8000291
|
[1] |
O-RING
|
|
| 45. |
S8030161
|
[1] |
O-RING
|
|
| 46. |
195-03435B
|
[1] |
BRACKET
|
|
| 47. |
195-03436B
|
[1] |
BRACKET
|
|
| 48. |
K1004829B
|
[1] |
|
|
| 49. |
DS0025020
|
[6] |
BOLT
|
|
| 49. |
S0515366
|
[6] |
BOLT
|
|
| 5. |
DS2232107
|
[1] |
ADAPTER
|
|
| 50. |
120804-00079
|
[6] |
WASHER
|
|
| 51. |
DS2021252
|
[1] |
|
|
| 52. |
K1006393B
|
[1] |
|
|
| 53. |
DS0025018
|
[4] |
BOLT
|
|
| 53. |
S0515066
|
[4] |
BOLT
|
|
| 54. |
120804-00079
|
[4] |
WASHER
|
|
| 6. |
2181-4133D6
|
[2] |
ADAPTER
|
|
| 61. |
DS2016056
|
[1] |
HOSE
|
|
| 62. |
DS2016056
|
[1] |
HOSE
|
|
| 7. |
181-00121D8
|
[2] |
TEE
|
|
| 8. |
K1004827A
|
[1] |
PIPE
|
|
| 8. |
420207-03850
|
[1] |
|
|
| 9. |
K1004828A
|
[1] |
PIPE
|
|
| 9. |
420207-03851
|
[1] |
|
|
