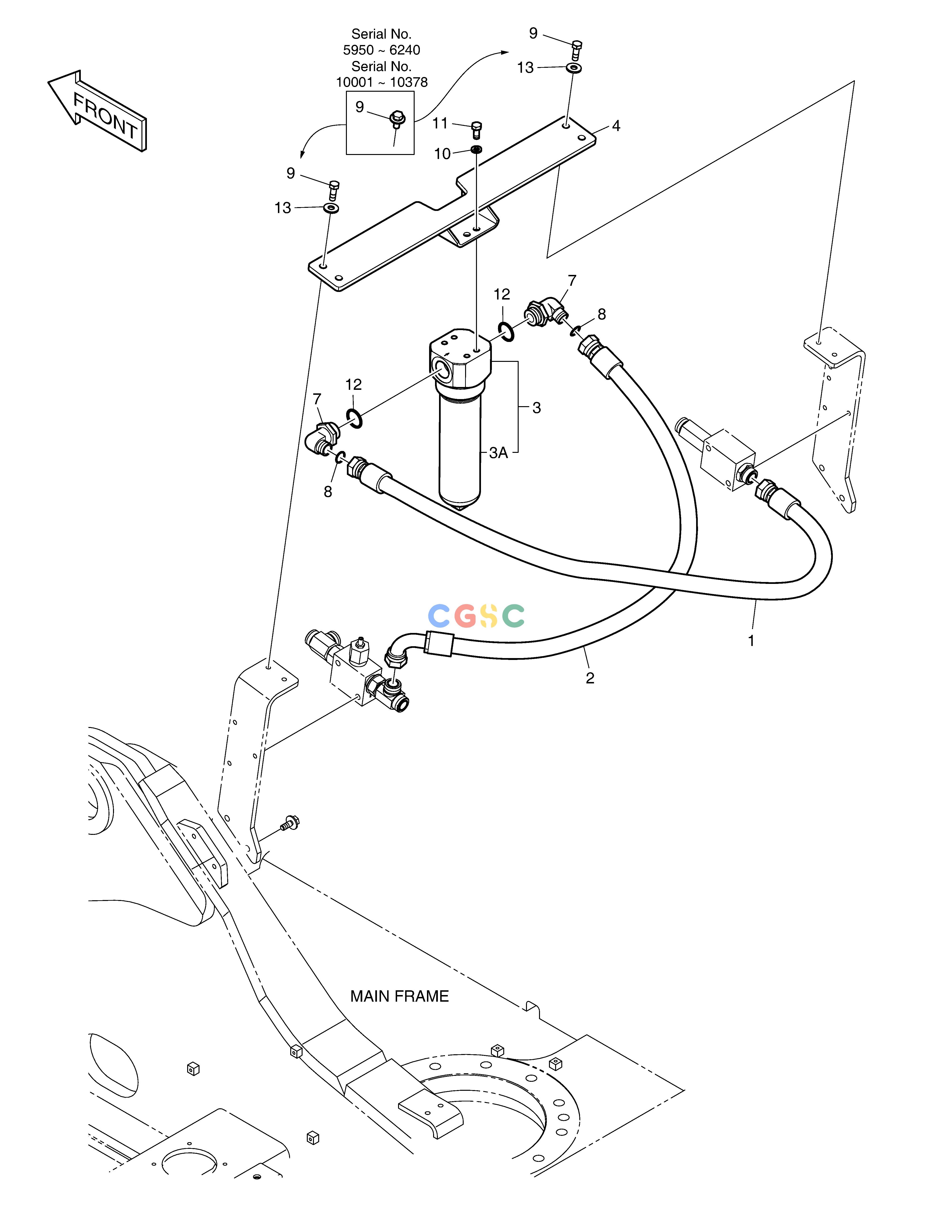

斗山零件查询ONE WAY PIPING - WITH FILTER DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
110 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1006587C
|
[-] |
|
|
| -. |
400406-00789
|
[-] |
|
|
| 1. |
DS2011330
|
[1] |
HOSE
|
|
| 10. |
S5102703
|
[4] |
WASHER
|
|
| 11. |
S0515166
|
[4] |
BOLT
|
|
| 12. |
S8000381
|
[2] |
O-RING
|
|
| 13. |
120804-00079
|
[4] |
WASHER
|
|
| 2. |
DS2013838
|
[1] |
|
|
| 3. |
471-00109
|
[1] |
FILTER;BREAKER
|
|
| 3A. |
474-00041
|
[1] |
ELEMENT;BREAKER FILTER
|
|
| 4. |
K1006392B
|
[1] |
|
|
| 7. |
DS2304080
|
[2] |
ELBOW
|
|
| 8. |
S8030161
|
[2] |
O-RING
|
|
| 9. |
DS0025020
|
[4] |
BOLT
|
|
| 9. |
S0515266
|
[4] |
BOLT
|
|
