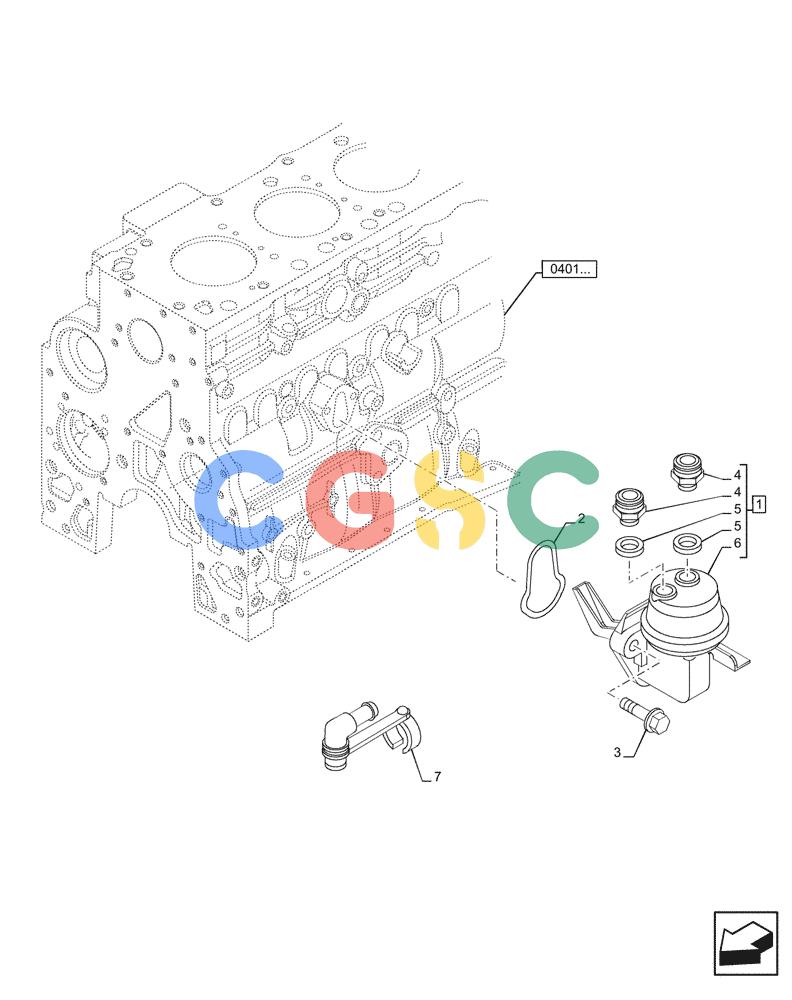

神钢零件查询(F4GE9484D J601) - ENGINE - 5801370290 - 84301930.. (1/07-12/07) (2010.043) - FUEL PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
846 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2830266 | [1] | FUEL PUMP | TORFUEL PUMP, ASSY, Incl 4 - 6 Superseded by part number: 4894721, 4890964 |
| 2. | 2830156 | [1] | O-RING,70 Duro, M2.62 Thk | TORO-RING |
| 3. | 4899031 | [2] | BOLT,Flng, M8 x 1.25 x 25mm | TORHEXAGON BOLT, M8X25 MM Superseded by part number: 4899079 |
| 4. | 4890964 | [2] | FITTING,M12 x 1.5 | TORTHREADED UNION, M12X1,5 |
| 5. | 4894721 | [2] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TORWASHER |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONFuel pump, Incl in 1 |
