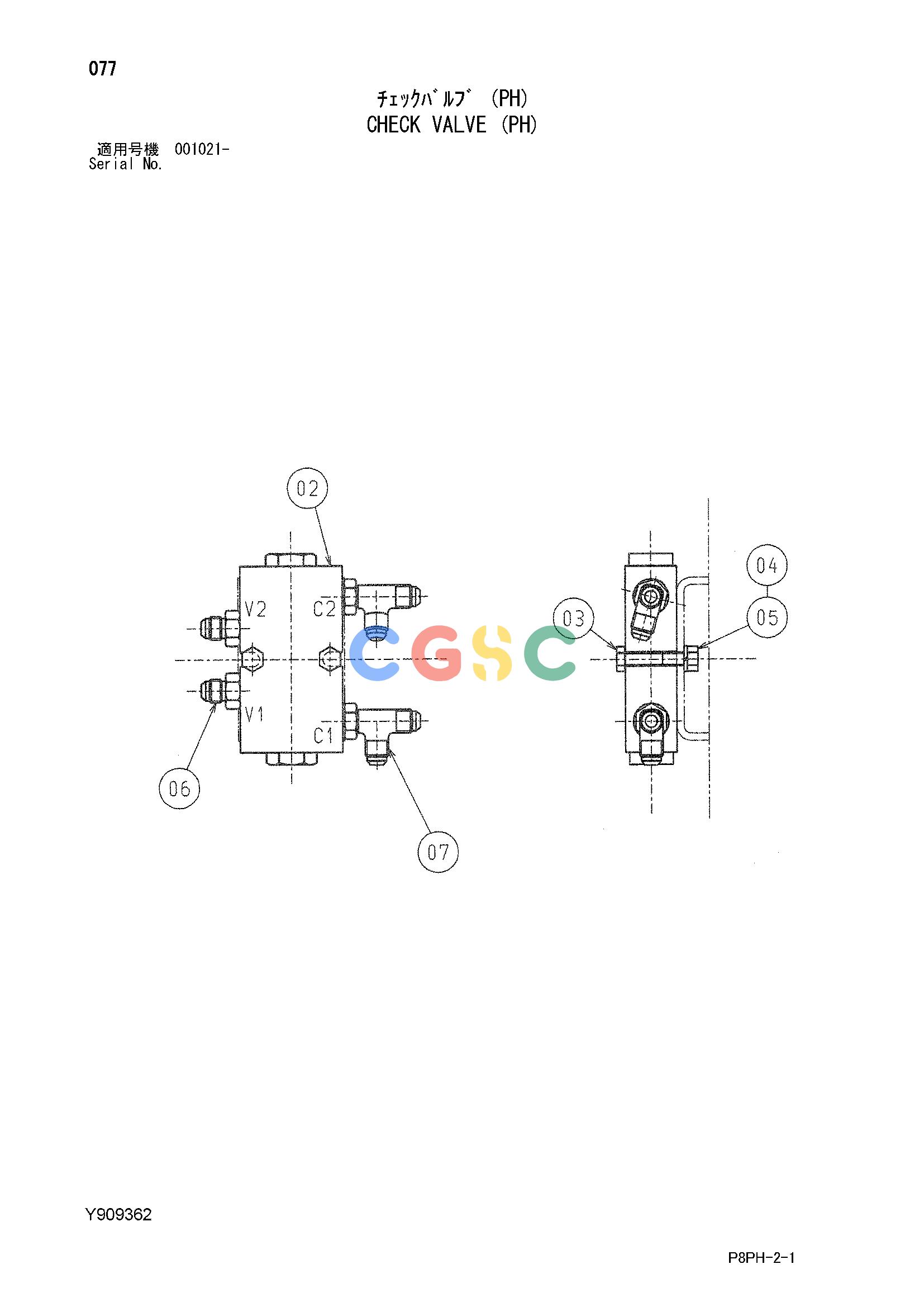

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 02. | Y411273 | [1] | VALVE;CHECK | |
| 03. | J900845 | [2] | BOLT | |
| 04. | A590908 | [2] | WASHER;SPRING | |
| 05. | J950008 | [2] | NUT | |
| 06. | 4278867 | [2] | ADAPTER;S | |
| 06A. | R26448R | [1] | O-RING | |
| 07. | 4278871 | [2] | TEE;S | |
| 07A. | R26448R | [1] | O-RING |
广数供应链运营团队, 14 02月, 2025，浏览： 217 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 02. | Y411273 | [1] | VALVE;CHECK | |
| 03. | J900845 | [2] | BOLT | |
| 04. | A590908 | [2] | WASHER;SPRING | |
| 05. | J950008 | [2] | NUT | |
| 06. | 4278867 | [2] | ADAPTER;S | |
| 06A. | R26448R | [1] | O-RING | |
| 07. | 4278871 | [2] | TEE;S | |
| 07A. | R26448R | [1] | O-RING |
