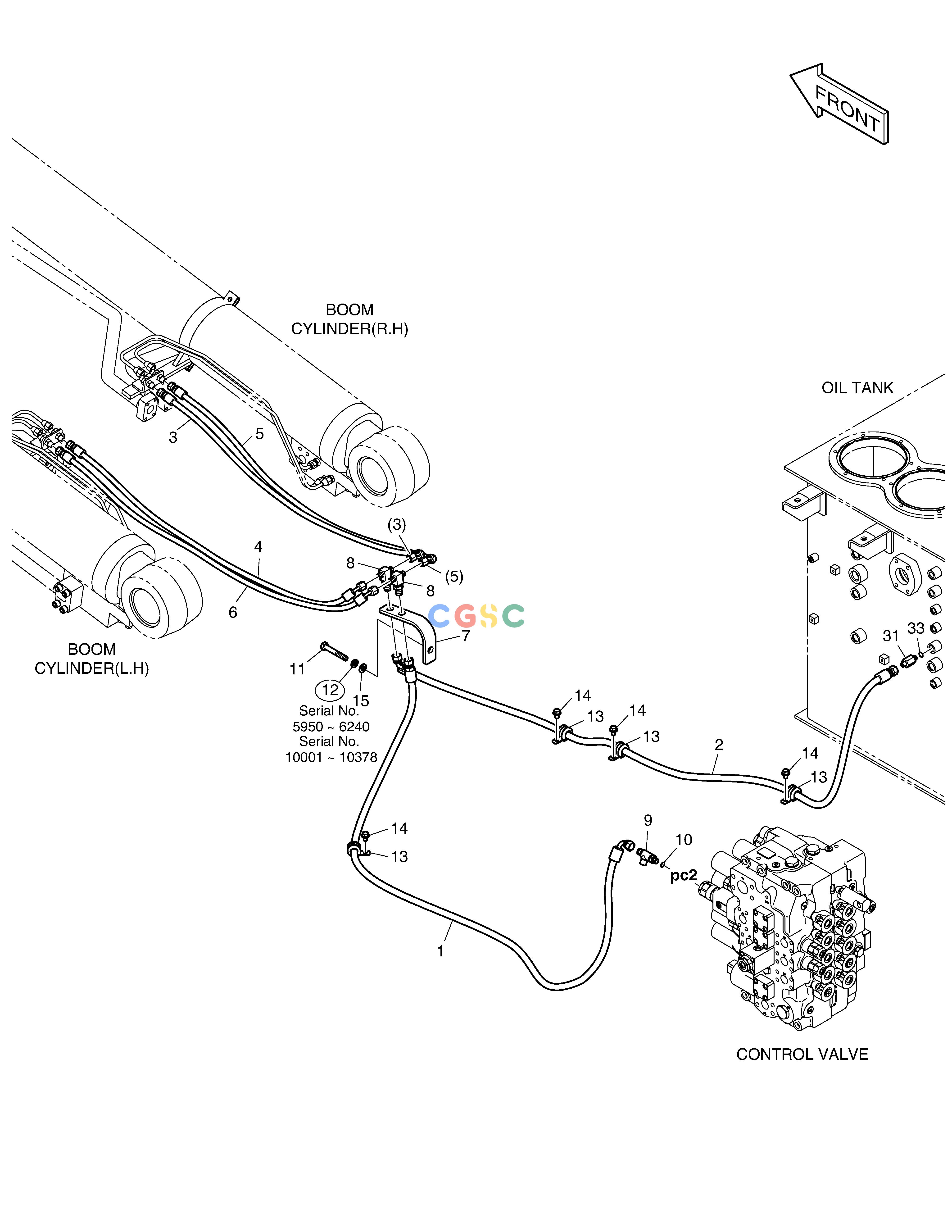

斗山零件查询PILOT PIPING - BOOM LOCK VALVE DX360LCA(S/N:5950~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1005975B
|
[-] |
PILOT PIPING-BOOM LOCK V/V
|
|
| -. |
420212-14043
|
[-] |
|
|
| 1. |
DS2093223
|
[1] |
HOSE
|
|
| 10. |
S8000111
|
[1] |
O-RING
|
|
| 11. |
S0561366
|
[1] |
BOLT
|
|
| 12. |
S5102703
|
[1] |
WASHER
|
|
| 13. |
124-00208D3
|
[4] |
CLIP
|
|
| 14. |
K1001029
|
[4] |
BOLT
|
|
| 15. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 15. |
120804-00077
|
[1] |
WASHER
|
|
| 2. |
DS2092061
|
[1] |
HOSE
|
|
| 3. |
DS2092007
|
[1] |
HOSE
|
|
| 31. |
2181-1126D27
|
[1] |
ADAPTER
|
|
| 33. |
S8000141
|
[1] |
O-RING
|
|
| 4. |
DS2092007
|
[1] |
HOSE
|
|
| 5. |
DS2092062
|
[1] |
HOSE
|
|
| 6. |
DS2092062
|
[1] |
HOSE
|
|
| 7. |
K1003633A
|
[1] |
BRACKET
|
|
| 8. |
181-00008
|
[2] |
TEE
|
|
| 9. |
2181-2375D7
|
[1] |
TEE
|
|
