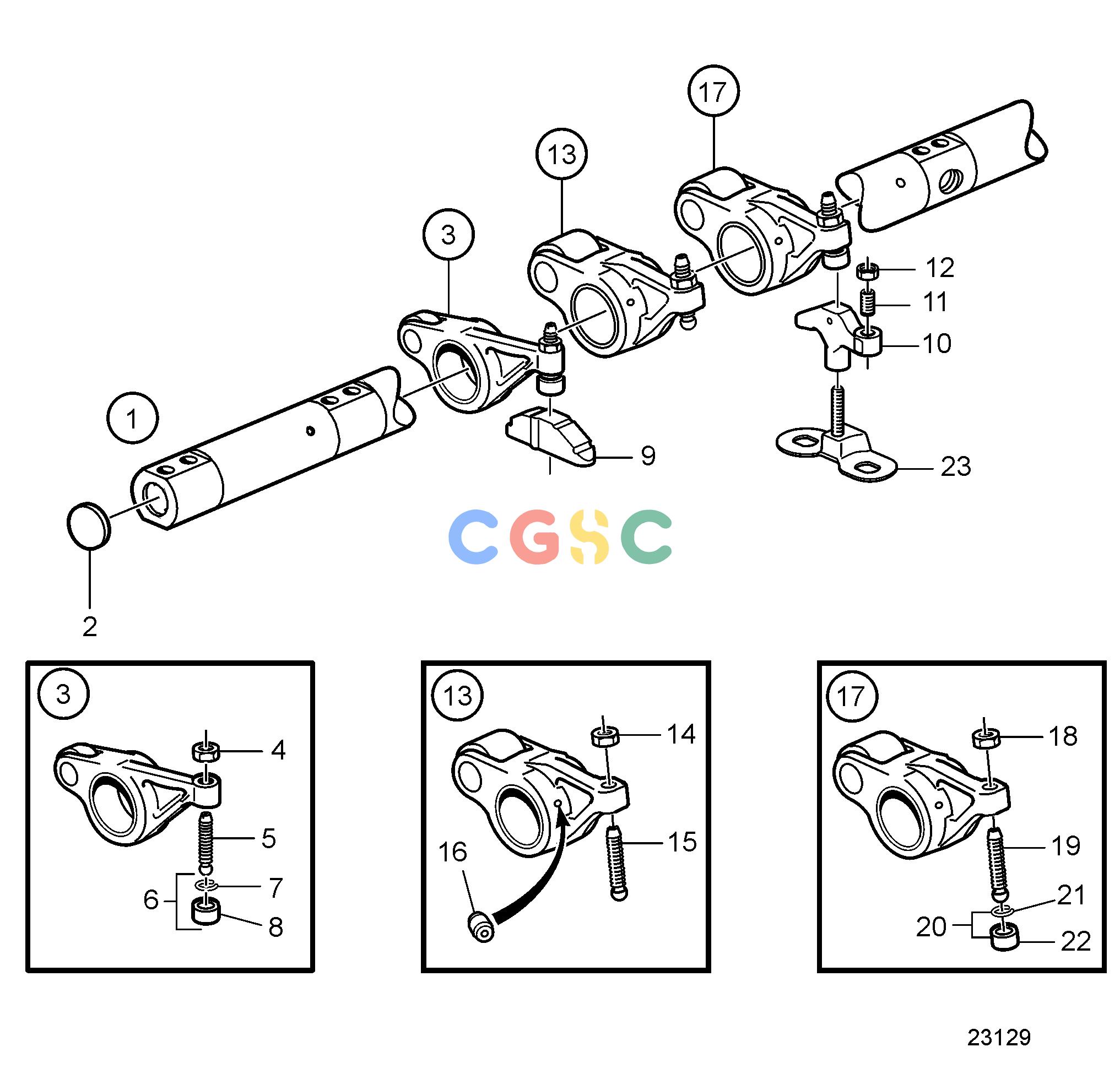

沃尔沃零件查询D16C-D MHEngineValve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21534993
|
[1] |
Rocker arm shaft
|
|
| 2. |
955096
|
[2] |
Expansion plug
|
|
| 3. |
22255550
|
[6] |
Rocker arm
|
|
| 4. |
946911
|
[1] |
Hexagon nut
|
|
| 5. |
20501055
|
[1] |
Ball stud
|
|
| 6. |
21054149
|
[1] |
Ball socket
|
|
| 7. |
944364
|
[1] |
O-ring
|
|
| 8. |
|
|
|
|
| 9. |
21061323
|
[6] |
Valve bridge, intake
|
|
| 10. |
20857578
|
[6] |
Valve caliper, exhaust
|
|
| 11. |
20551362
|
[6] |
Adjusting screw
|
|
| 12. |
946911
|
[6] |
Hexagon nut
|
|
| 13. |
21732658
|
[6] |
Rocker arm
|
|
| 14. |
1677396
|
[1] |
Hexagon nut
|
|
| 15. |
20501057
|
[1] |
Adjusting screw
|
|
| 16. |
3964817
|
[1] |
Jet
|
|
| 17. |
21415399
|
[6] |
Rocker arm
|
|
| 18. |
946911
|
[1] |
Hexagon nut
|
|
| 19. |
20501055
|
[1] |
Ball stud
|
|
| 20. |
21054149
|
[1] |
Ball socket
|
|
| 21. |
944364
|
[1] |
O-ring
|
|
| 22. |
|
|
|
|
| 23. |
20554268
|
[6] |
Guide pin
|
|
