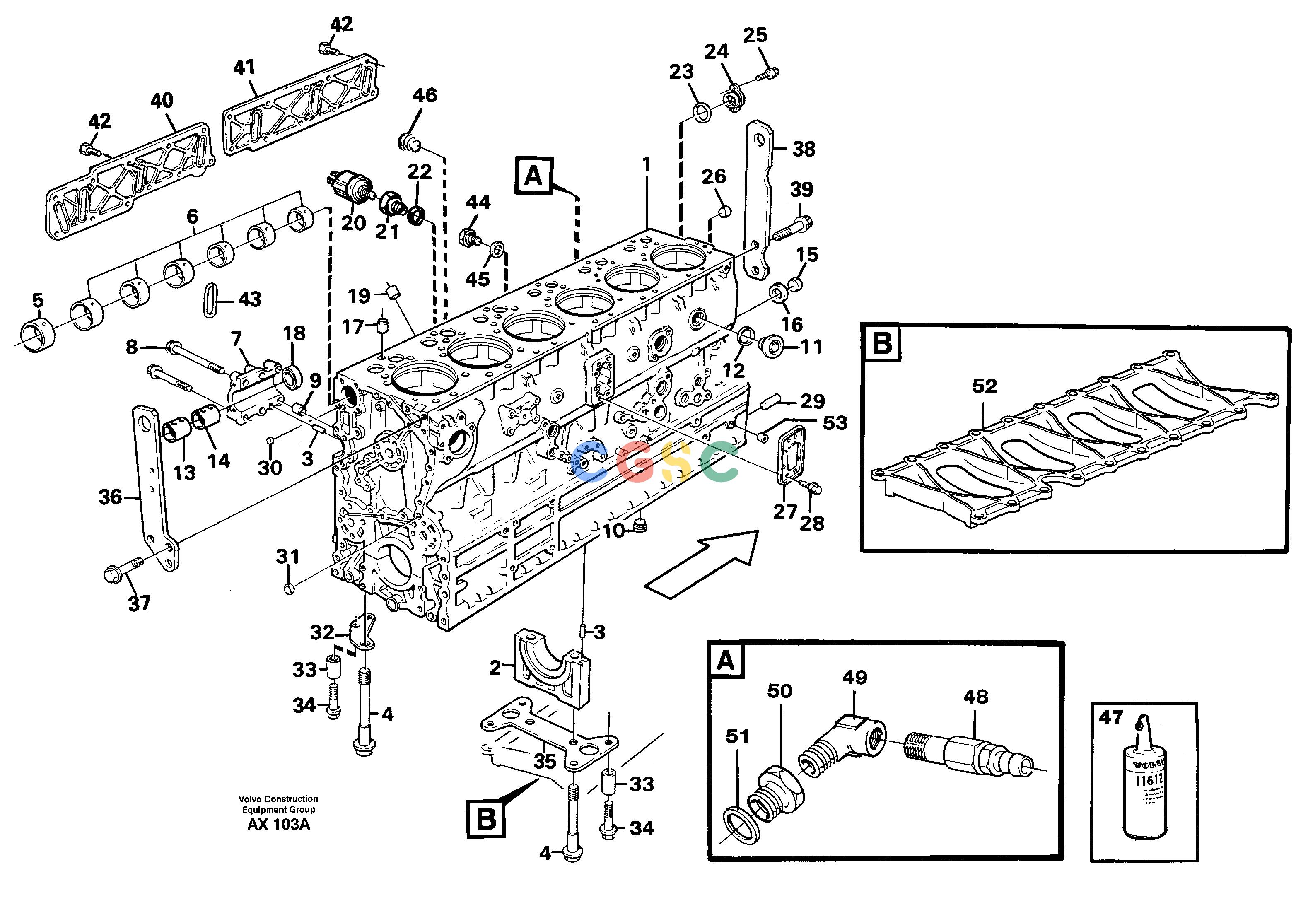

沃尔沃零件查询L330C Cylinder blockSER NO 60188- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE1556500
|
[1] |
Cylinder block
|
|
| 1. |
|
[1] |
Cylinder block
|
|
| 2. |
|
[1] |
Cap
|
|
| |
|
[4] |
Cap
|
|
| |
|
[1] |
Cap
|
|
| |
|
[1] |
Cap
|
|
| 3. |
VOE422426
|
[8] |
Pin
|
|
| 4. |
VOE1543412
|
[14] |
Screw
|
|
| 5. |
VOE1556514
|
[1] |
Bushing
|
|
| 6. |
VOE1556515
|
[6] |
Bushing
|
|
| 7. |
VOE1556678
|
[1] |
Bearing housing
|
|
| 8. |
VOE13975102
|
[4] |
Flange screw
|
L = 60 MM
|
| |
VOE13975105
|
[1] |
Flange screw
|
L = 100 MM
|
| |
VOE13975107
|
[1] |
Flange screw
|
L = 120 MM
|
| 9. |
VOE1543693
|
[1] |
Guide sleeve
|
|
| 10. |
VOE13952079
|
[1] |
Plug
|
|
| 11. |
VOE467367
|
[3] |
Plug
|
|
| 12. |
VOE1556907
|
[3] |
Gasket
|
|
| 13. |
VOE1556353
|
[1] |
Bushing
|
|
| 14. |
VOE1556372
|
[1] |
Bushing
|
|
| 15. |
VOE1547671
|
[1] |
Plug
|
|
| 16. |
VOE469327
|
[1] |
Gasket
|
|
| 17. |
VOE1543693
|
[6] |
Guide sleeve
|
|
| 18. |
VOE1546221
|
[1] |
Sealing ring
|
|
| 19. |
VOE417588
|
[1] |
Guide sleeve
|
|
| 20. |
VOE11039249
|
[1] |
Pressure monitor
|
SE16
|
| 21. |
VOE421528
|
[1] |
Reduction
|
|
| 22. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 23. |
VOE968971
|
[1] |
O-ring
|
|
| 24. |
VOE1542242
|
[1] |
Cover
|
|
| 25. |
VOE13946173
|
[2] |
Screw
|
|
| 26. |
VOE946778
|
[1] |
Cap plug
|
|
| 27. |
VOE1543593
|
[1] |
Hatch
|
|
| 28. |
VOE13965175
|
[8] |
Screw
|
|
| 29. |
VOE191171
|
[2] |
Pin
|
|
| 30. |
VOE13967853
|
[1] |
Cap plug
|
|
| 31. |
VOE13955083
|
[2] |
Cap plug
|
|
| 32. |
VOE1543589
|
[4] |
Stiffening plate
|
|
| 33. |
VOE11999695
|
[28] |
Spacer sleeve
|
ENG - 28340
|
| |
VOE11999695
|
[8] |
Spacer sleeve
|
ENG 28341 -
|
| 34. |
VOE13965192
|
[28] |
Screw
|
|
| 35. |
VOE1556797
|
[5] |
Stiffener
|
|
| 36. |
VOE1543652
|
[1] |
Tensioner
|
|
| 37. |
VOE13965191
|
[3] |
Screw
|
|
| 38. |
|
[1] |
Lifting eye
|
|
| 39. |
VOE60113126
|
[2] |
Flange screw
|
|
| 40. |
VOE1543486
|
[1] |
Hatch
|
|
| 41. |
VOE1543488
|
[1] |
Hatch
|
|
| 42. |
VOE13945444
|
[18] |
Screw
|
M8 x 25 MM
|
| |
VOE13946752
|
[2] |
Screw
|
M10 x 35 MM
|
| |
VOE946470
|
[1] |
Flange screw
|
M8 x 35 MM
|
| 43. |
VOE469606
|
[7] |
Sealing ring
|
|
| 44. |
VOE960631
|
[1] |
Plug
|
M16 x 12 MM
|
| 45. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 46. |
VOE13968063
|
[1] |
Plug
|
M16
|
| 47. |
VOE11713514
|
[REQ] |
Sealant
|
|
| 48. |
VOE13974320
|
[1] |
Tap
|
|
| 49. |
VOE13977409
|
[1] |
Elbow nipple
|
|
| 50. |
VOE13948867
|
[1] |
Nipple
|
|
| 51. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 52. |
VOE1556670
|
[1] |
Stiffener
|
ENG 28341 -
|
| 53. |
VOE981193
|
[1] |
Plug
|
M20 x 13 MM
|
