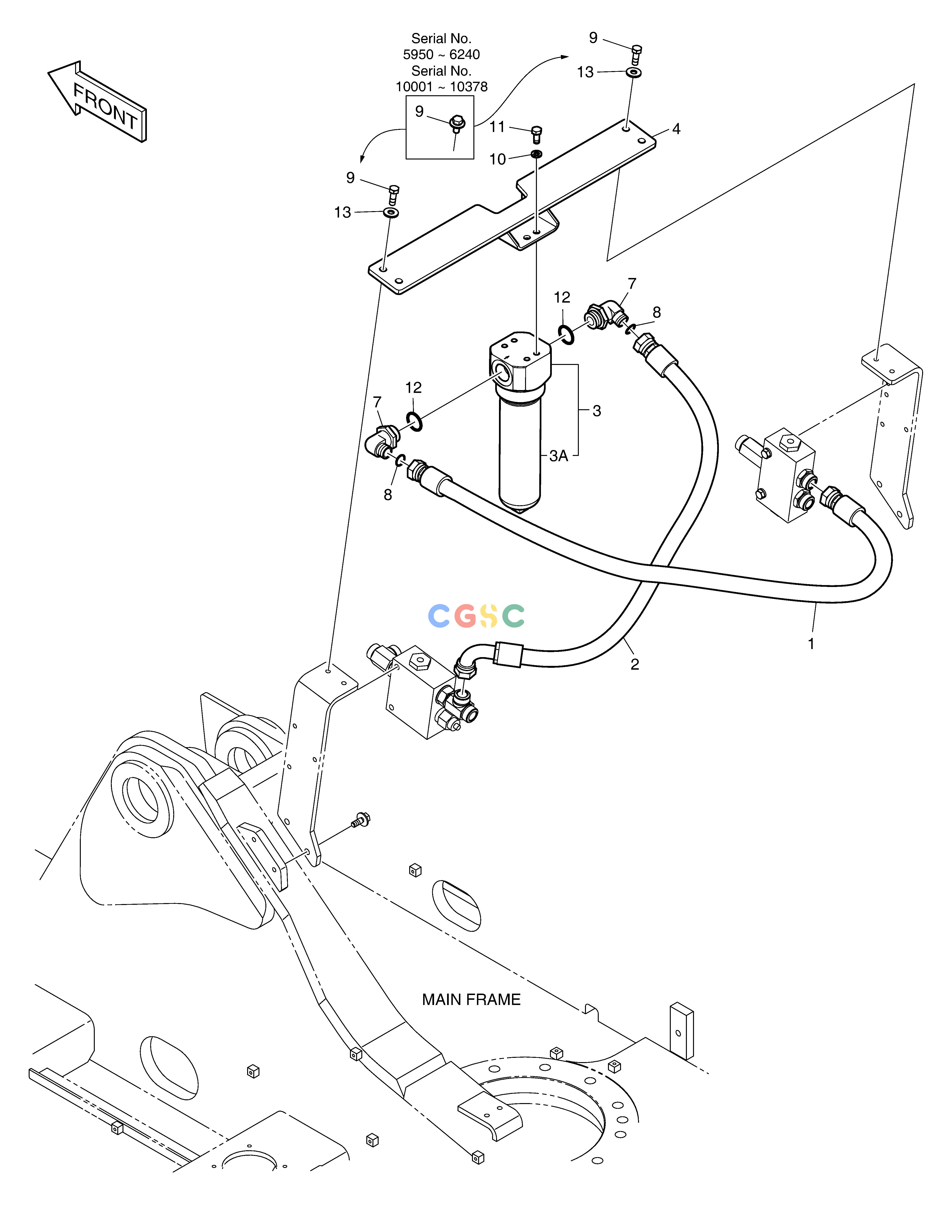

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1006390C | [-] | ||
| 1. | DS2011330 | [1] | HOSE | |
| 10. | S5102703 | [4] | WASHER | |
| 11. | S0515166 | [4] | BOLT | |
| 12. | S8000381 | [2] | O-RING | |
| 13. | 120804-00079 | [4] | WASHER | |
| 2. | DS2013838 | [1] | ||
| 3. | 471-00109 | [1] | FILTER;BREAKER | |
| 3A. | 474-00041 | [1] | ELEMENT;BREAKER FILTER | |
| 4. | K1006392B | [1] | ||
| 7. | DS2304080 | [2] | ELBOW | |
| 8. | S8030161 | [2] | O-RING | |
| 9. | DS0025020 | [4] | BOLT | |
| 9. | S0515266 | [4] | BOLT |
